Eaton

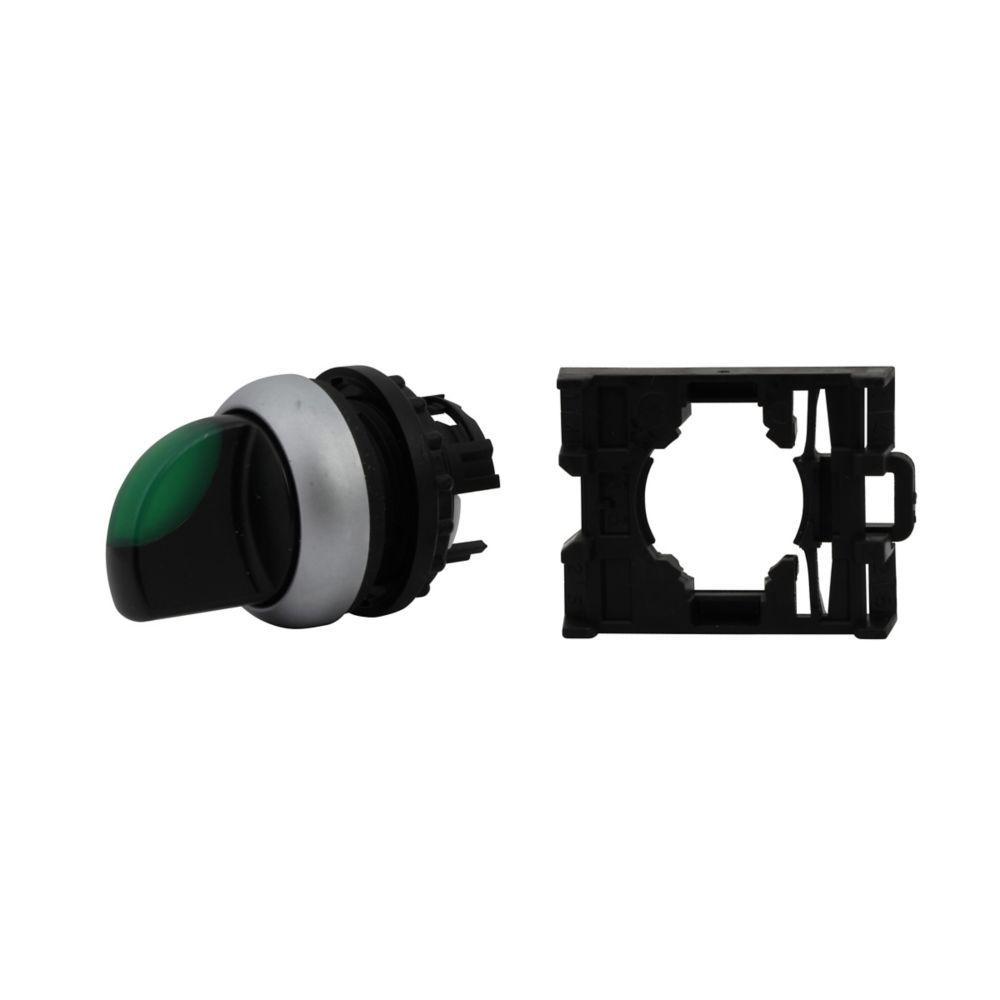

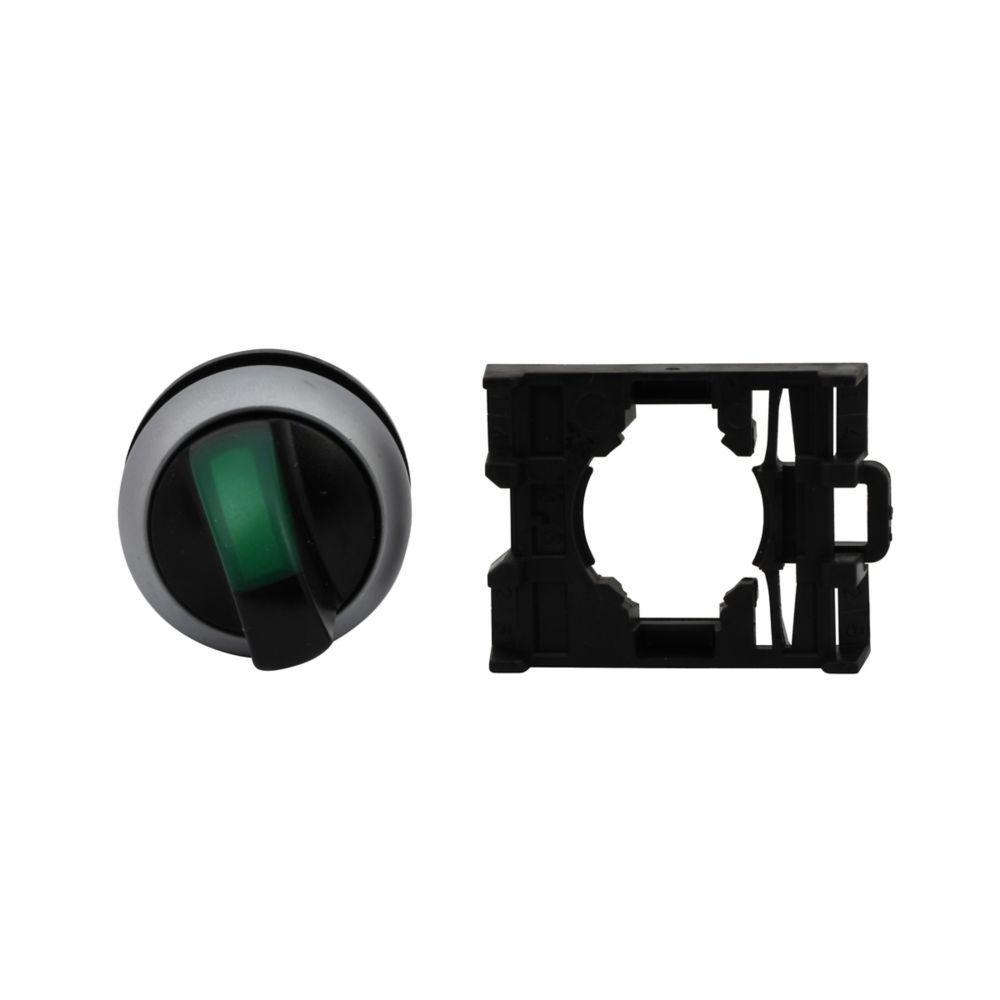

M22-WLK3-G CH SELECTOR SWITCH 22MM OPERATOR GREEN 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)

Mouse over image to zoom, click to enlarge

  • M22-WLK3-G CH SELECTOR SWITCH 22MM OPERATOR GREEN 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)
  • M22-WLK3-G CH SELECTOR SWITCH 22MM OPERATOR GREEN 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)
  • M22-WLK3-G CH SELECTOR SWITCH 22MM OPERATOR GREEN 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)

Description: EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 3 Positions, 40 deg/Left/Center/Right Throw, LED Lamp, NEMA 4X/13/IP66 Enclosure, Bezel/Housing: Silver Nylon Bezel, -13 to 158 deg F, Green

Manufacturer PN: M22-WLK3-G

UPC:  78668528148

Kendall Electric Inc PN: 3903342

Invoice Description:

M22-WLK3-G CH SELECTOR SWITCH 22MM OPERATOR GREEN 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON RMQ-Titan® M22-WLK3-G Modular Pushbutton Illuminated Selector Switch Operator, 22.5 mm, Knob Operator, 3 Positions, Green

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 3 Positions, 40 deg/Left/Center/Right Throw, LED Lamp, NEMA 4X/13/IP66 Enclosure, Bezel/Housing: Silver Nylon Bezel, -13 to 158 deg F, Green

Specifications

 Application Electrical Assemblies, Panels and EOEMs Applications
 Bezel Housing Silver Nylon Bezel
 Brand Name EATON
 Color Green
 Enclosure NEMA 4X/13/IP66
 Includes Contact Block Mounting Adapter
 Lamp Type LED
 Manufacturer Part Number M22-WLK3-G
 Number of Positions 3
 PART NUMBER KEYWORDS M22-WLK3-G ; M22WLK3G ; 10596470 ; 786685281483 ; 78668528148 ; 00786685281483
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CSA Certified,CCC Marked,Bureau Veritas,CE Marked,GoST-R
 Temperature Rating -13 to 158 deg F
 Throw 40 deg/Left/Center/Right
 Type Modular Pushbutton

Features

▪ Adding or removing coding adapters allows for field convertibility of maintained/momentary and key removal positions
▪ LED offering only for improved brightness quality and up to 100000 hours of operation
▪ More than 100000 mechanical operations
▪ Coding adapter options make assembly fast and simplify stocking of different configurations of selector switches
▪ Capable of communicating via ASi protocol with ASi adapter modules
▪ Can be converted in the field to maintained operation with the removal of a color coded adapter
