Eaton

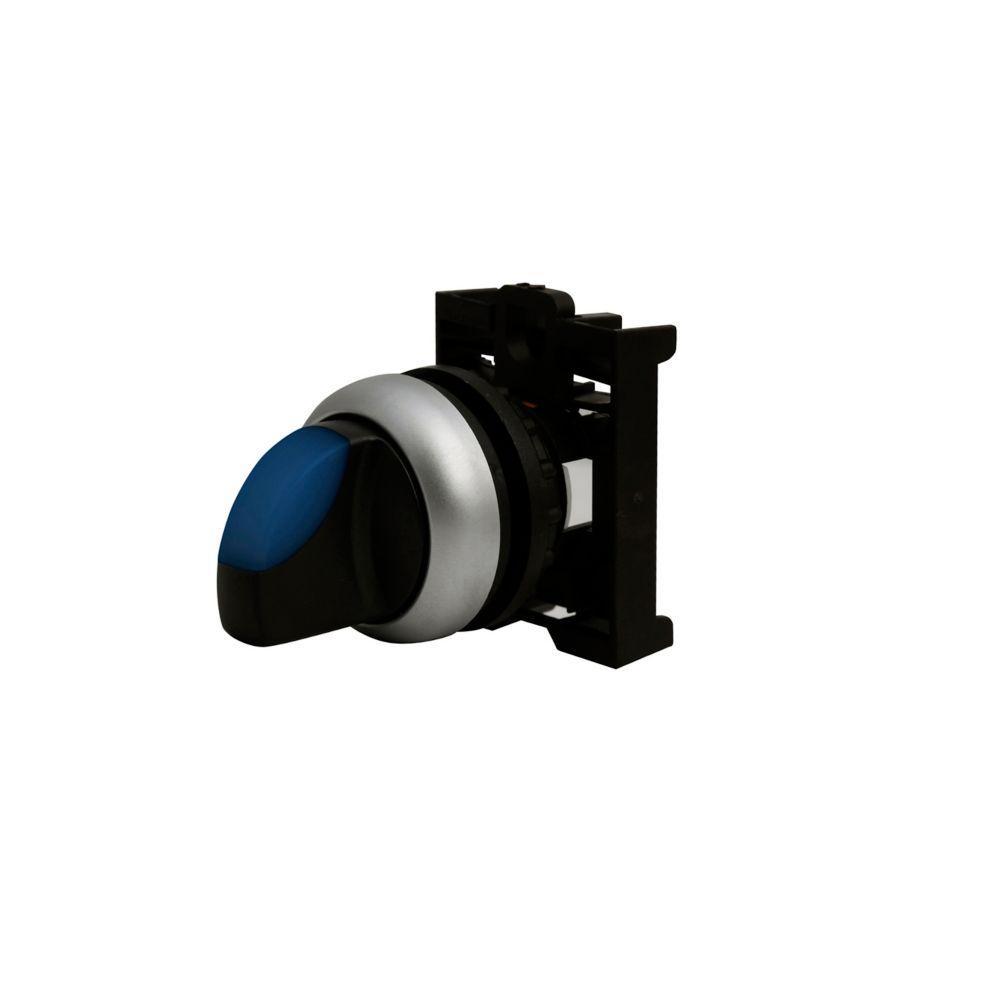

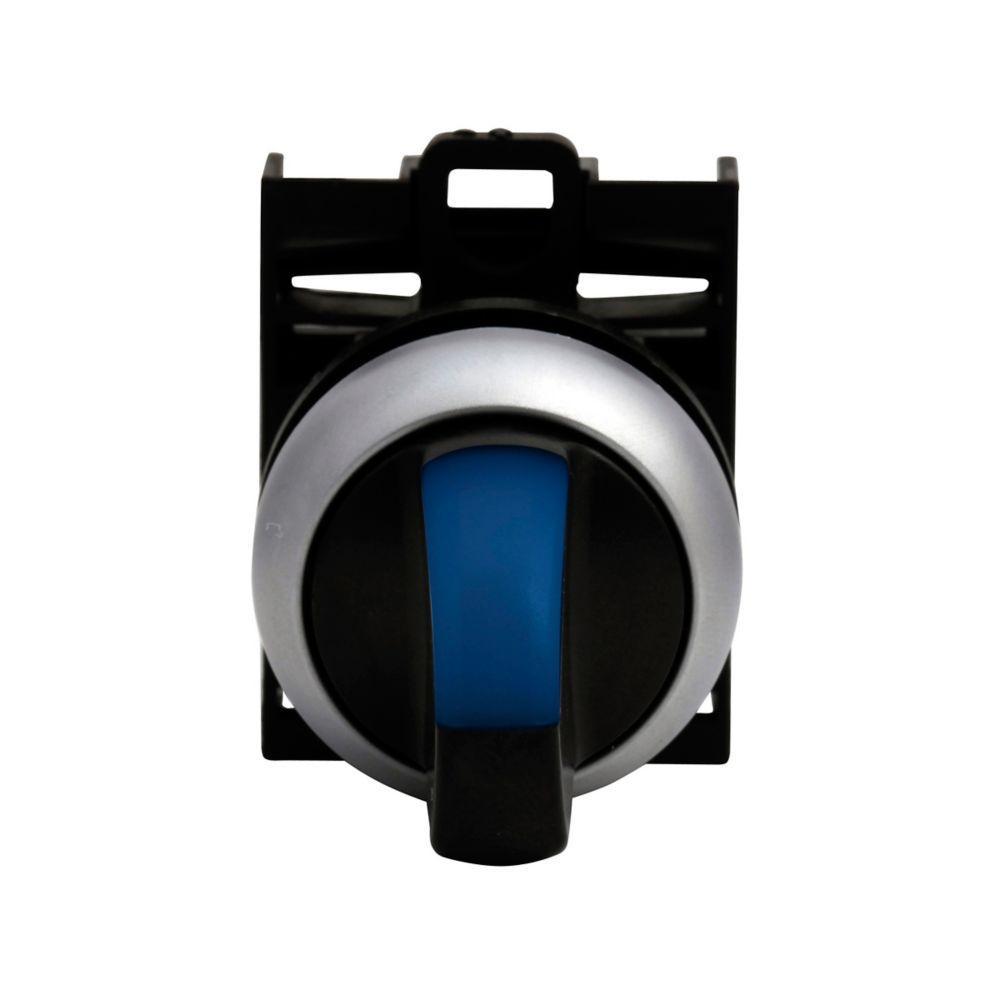

M22-WLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)

Mouse over image to zoom, click to enlarge

  • M22-WLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)
  • M22-WLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)
  • M22-WLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)

Description: EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 3 Positions, NEMA 4X/13/IP66 Enclosure, Bezel/Housing: Silver Bezel, Blue

Manufacturer PN: M22-WLK3-B

UPC:  78668528147

Kendall Electric Inc PN: 4097929

Invoice Description:

M22-WLK3-B CH SELECTOR SWITCH 22MM OPERATOR BLUE 3POSITION ILLUMINATED MOMENTARY SILVER BEZEL (CAN BE CONVERTED TO MAINTAINED)


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON RMQ-Titan® M22-WLK3-B Modular Pushbutton Illuminated Selector Switch Operator, 22.5 mm, Knob Operator, 3 Positions, Blue

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Selector Switch Operator, Modular Pushbutton, Series: M22, 22.5 mm Size, Momentary Contact Mode, Knob Operator, 3 Positions, NEMA 4X/13/IP66 Enclosure, Bezel/Housing: Silver Bezel, Blue

Specifications

 Application Commercial, Institutional Buildings and Structures
 Bezel Housing Silver Bezel
 Brand Name EATON
 Color Blue
 Enclosure NEMA 4X/13/IP66
 Includes Frame, Standard Terminals and Mounting Hardware
 Manufacturer Part Number M22-WLK3-B
 Number of Positions 3
 Series M22
 Size 22.5 mm
 Standards/Approvals CSA Certified,CCC Marked,Lloyd's Register Certified,Bureau Veritas,GoST-R,CE Marked
 Type Modular Pushbutton

Features

▪ Light 100000 hours, button 100000 operations
▪ Can be converted in the field to maintained operation with the removal of a color coded adapter
▪ 0 to 40 deg momentary switching position
