Eaton

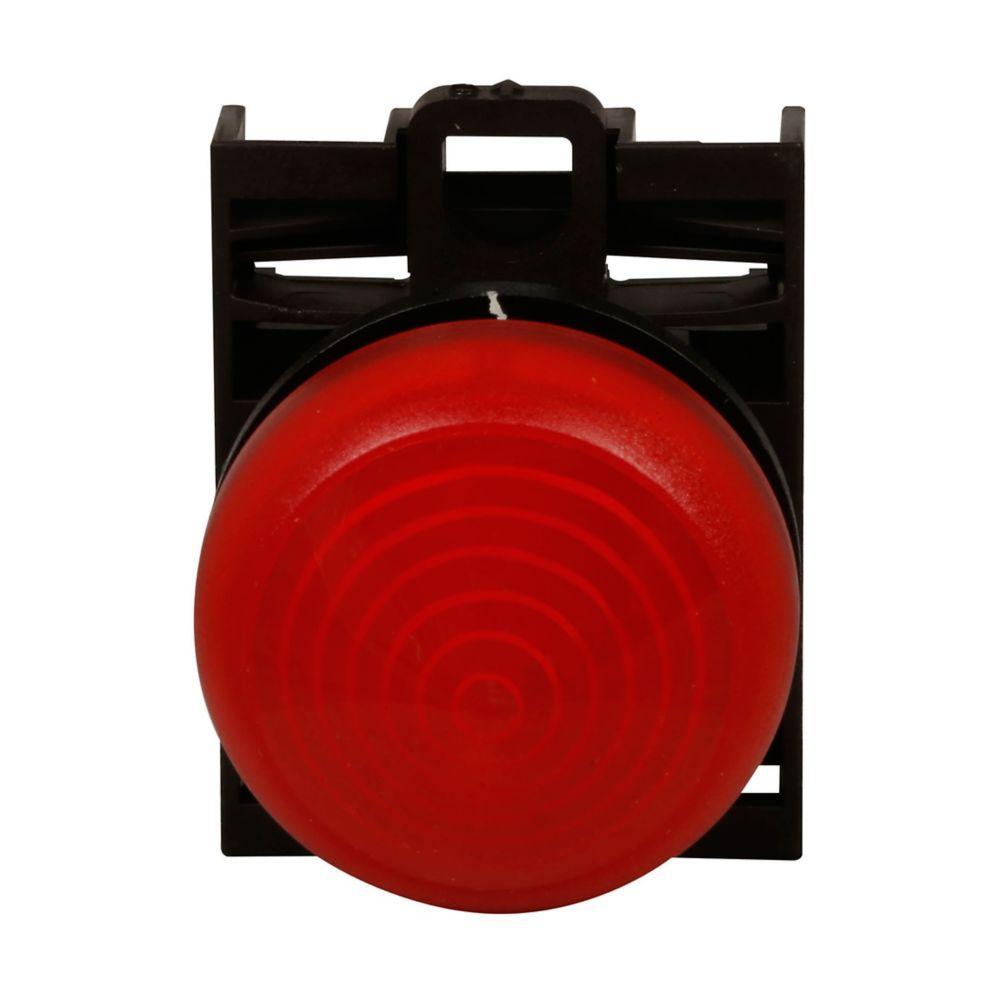

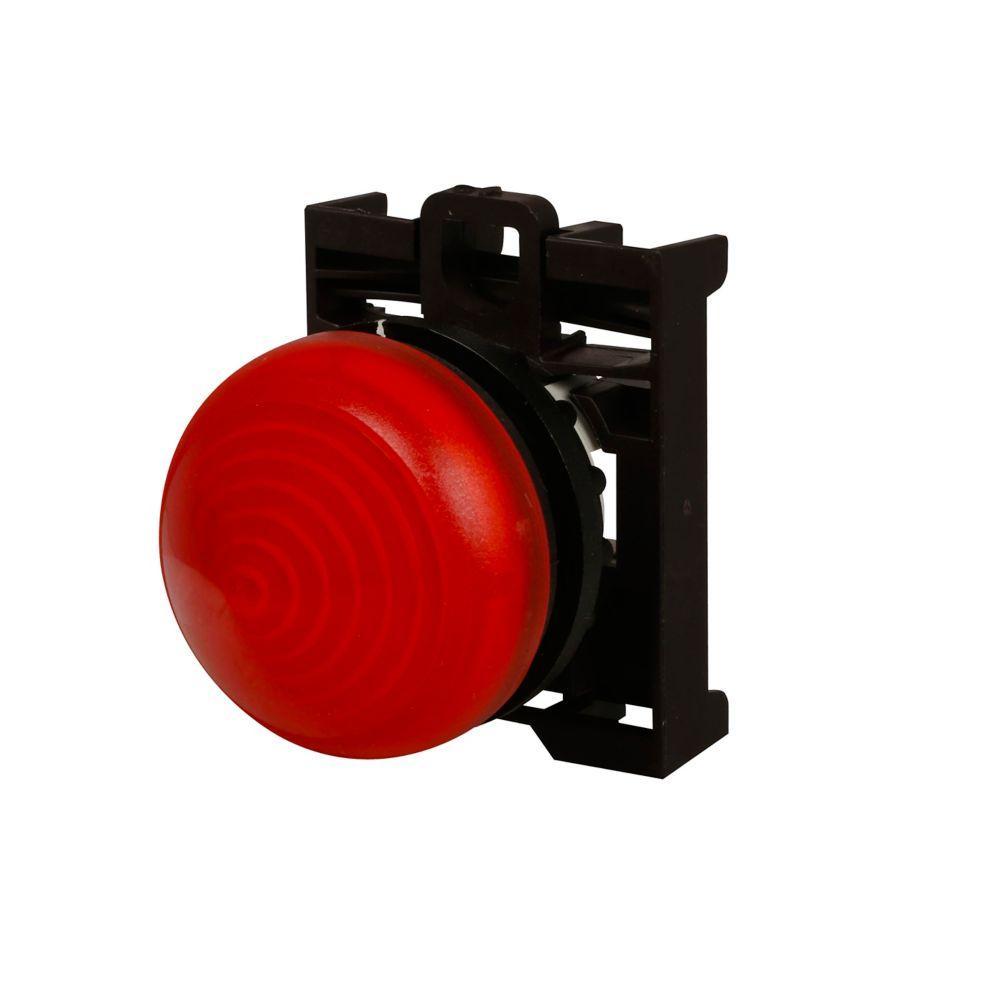

M22-LH-R CH PILOT INDICATING LIGHT 22MM OPERATOR RED CONICAL LENS

Mouse over image to zoom, click to enlarge

  • M22-LH-R CH PILOT INDICATING LIGHT 22MM OPERATOR RED CONICAL LENS
  • M22-LH-R CH PILOT INDICATING LIGHT 22MM OPERATOR RED CONICAL LENS
  • M22-LH-R CH PILOT INDICATING LIGHT 22MM OPERATOR RED CONICAL LENS
  • M22-LH-R CH PILOT INDICATING LIGHT 22MM OPERATOR RED CONICAL LENS

Description: EATON Illuminated Indicating Light Operator, Series: RMQ-Titan M22, 22.5 mm Size, 250 V, Pushbutton Operator, LED Lamp, NEMA 3R/4X/13/IP66/IP67/IP69K Enclosure, Flush Mounting, -13 to 158 deg F, Plastic, Red

Manufacturer PN: M22-LH-R

UPC:  78668557505

Kendall Electric Inc PN: 2941169

Invoice Description:

M22-LH-R CH PILOT INDICATING LIGHT 22MM OPERATOR RED CONICAL LENS


SPEC SHEET

▸ See All in Pilot Light Operators


How Can We Make This Page Better?

EATON M22-LH-R Illuminated Indicating Light Operator, 22.5 mm, Pushbutton Operator, Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high quality brightness and up to 100000 hr of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed 5000000 mechanical operations.
EATON Illuminated Indicating Light Operator, Series: RMQ-Titan M22, 22.5 mm Size, 250 V, Pushbutton Operator, LED Lamp, NEMA 3R/4X/13/IP66/IP67/IP69K Enclosure, Flush Mounting, -13 to 158 deg F, Plastic, Red

Specifications

 Application Electrical Assemblies, Panels, Commercial Construction, Residential Construction, Food and Beverage, Transportation and Material Handling Applications
 Brand Name EATON
 Color Red
 Enclosure NEMA 3R/4X/13/IP66/IP67/IP69K
 Includes Contact Block Mounting Adapter
 Lamp Type LED
 Manufacturer Part Number M22-LH-R
 Material Plastic
 Mounting Type Flush
 Series RMQ-Titan M22
 Size 22.5 mm
 Standards/Approvals BAA Compliant|UL Listed|CSA Certified|CE Certified
 Temperature Rating -13 to 158 deg F
 Voltage Rating 250 V

Features

▪ Customizable laser engraving on all lenses
▪ LED offering only for improved brightness quality and up to 100000 hrs of operation
▪ Lenses designed specifically for LED illumination
▪ Modular construction makes assembly fast and simplifies stocking of components and complete devices
▪ Most pushbutton operators and contact blocks exceed 500000 mechanical operations
▪ This highly versatile line features field convertible functions and customized laser engraving capabilities
