Eaton

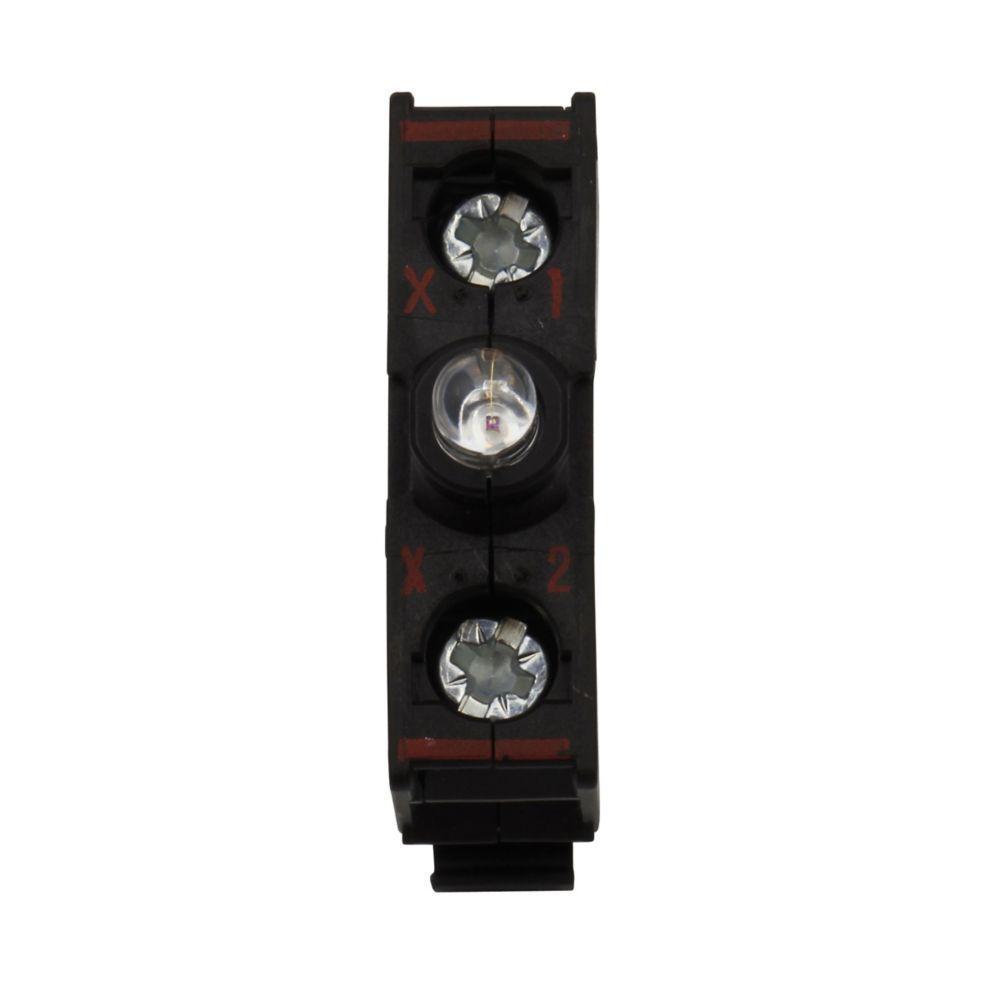

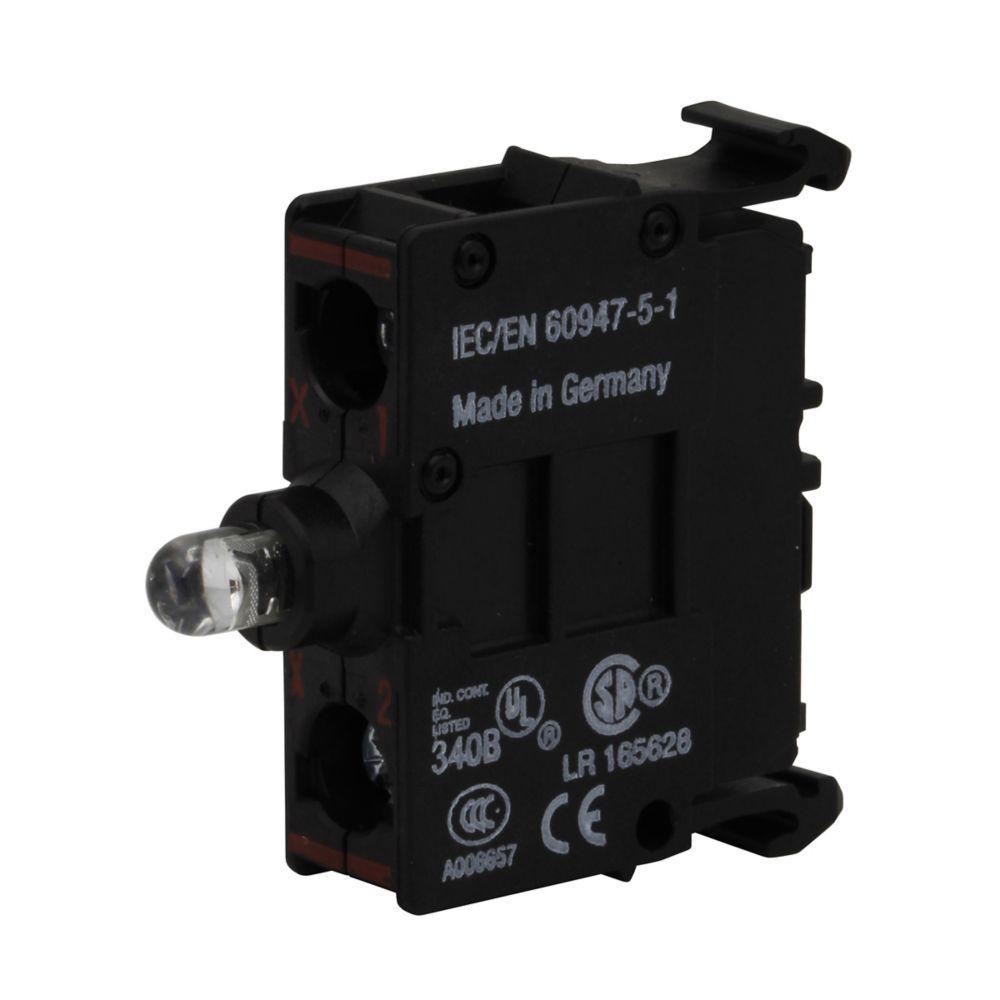

M22-LEDC230-R CH LED BLOCK RED 85-264VAC SCREW TERMINAL BASE MOUNT

Mouse over image to zoom, click to enlarge

  • M22-LEDC230-R CH LED BLOCK RED 85-264VAC SCREW TERMINAL BASE MOUNT
  • M22-LEDC230-R CH LED BLOCK RED 85-264VAC SCREW TERMINAL BASE MOUNT
  • M22-LEDC230-R CH LED BLOCK RED 85-264VAC SCREW TERMINAL BASE MOUNT
  • M22-LEDC230-R CH LED BLOCK RED 85-264VAC SCREW TERMINAL BASE MOUNT

Description: EATON RMQ-Titan® Illuminated Modular Pushbutton Light Unit, Series: M22, 22.5 mm Size, LED Lamp, 85 to 264 V AC, Screw Terminal, Base Mounting, Polished Chrome, Red, 1/2 x 1-1/2 x 2 in Dimensions

Manufacturer PN: M22-LEDC230-R

UPC:  78668527773

Kendall Electric Inc PN: 3728846

Invoice Description:

M22-LEDC230-R CH LED BLOCK RED 85-264VAC SCREW TERMINAL BASE MOUNT


SPEC SHEET

▸ See All in Pushbutton & Switch Light Source Units


How Can We Make This Page Better?

EATON RMQ-Titan® M22-LEDC230-R Illuminated Modular Pushbutton Light Unit, 22.5 mm, LED Lamp, 85 to 264 V AC, Screw Terminal, Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Modular Pushbutton Light Unit, Series: M22, 22.5 mm Size, LED Lamp, 85 to 264 V AC, Screw Terminal, Base Mounting, Polished Chrome, Red, 1/2 x 1-1/2 x 2 in Dimensions

Specifications

 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Color Red
 Dimensions 1/2 x 1-1/2 x 2 in
 Lamp Type LED
 Manufacturer Part Number M22-LEDC230-R
 Material Polished Chrome
 Mounting Type Base
 PART NUMBER KEYWORDS M22-LEDC230-R ; M22LEDC230R ; 10596095 ; 786685277738 ; 78668527773 ; 00786685277738
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CSA Certified,CCC Marked,GoST-R,CE Marked,Bureau Veritas
 Terminal Type Screw
 Voltage Rating 85 to 264 V AC

Features

▪ Our M22 now offers an attractive chrome metal bezel that will enhance appeal to your 22 mm pushbutton applications
▪ This highly versatile line features field convertible functions and customized laser engraving capabilities
▪ LED indicators offer 100000 hr of life in high vibration environments and lenses specifically designed for LED illumination
▪ All components feature an IP66 rating and some carry IP67 and IP69K for washdown environments
