Eaton

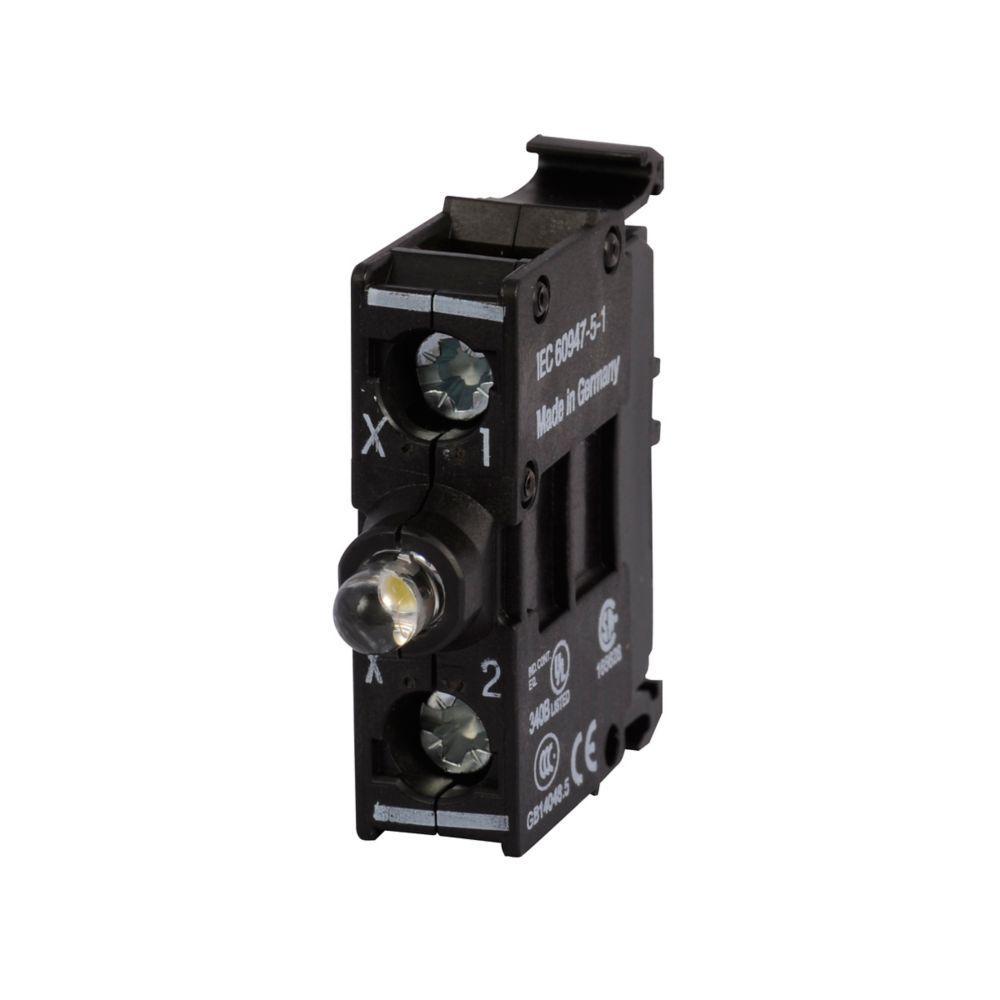

M22-LEDC-W CH LED BLOCK GREEN 12-30V SCREW TERMINAL BASE MOUNT

Mouse over image to zoom, click to enlarge

  • M22-LEDC-W CH LED BLOCK GREEN 12-30V SCREW TERMINAL BASE MOUNT
  • M22-LEDC-W CH LED BLOCK GREEN 12-30V SCREW TERMINAL BASE MOUNT
  • M22-LEDC-W CH LED BLOCK GREEN 12-30V SCREW TERMINAL BASE MOUNT
  • M22-LEDC-W CH LED BLOCK GREEN 12-30V SCREW TERMINAL BASE MOUNT

Description: EATON RMQ-Titan® Illuminated Modular Pushbutton Light Unit, Series: M22, 22.5 mm Size, LED Lamp, 12 to 30 V AC/DC, Screw Terminal, Base Mounting, Polished Chrome, White, 1.46 in L x 1.18 in W x 1.03 in H Dimensions

Manufacturer PN: M22-LEDC-W

UPC:  78668527768

Kendall Electric Inc PN: 4058128

Invoice Description:

M22-LEDC-W CH LED BLOCK GREEN 12-30V SCREW TERMINAL BASE MOUNT


SPEC SHEET

▸ See All in Pushbutton & Switch Light Source Units


How Can We Make This Page Better?

EATON RMQ-Titan® M22-LEDC-W Illuminated Modular Pushbutton Light Unit, 22.5 mm, LED Lamp, 12 to 30 V AC/DC, Screw Terminal, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON RMQ-Titan® Illuminated Modular Pushbutton Light Unit, Series: M22, 22.5 mm Size, LED Lamp, 12 to 30 V AC/DC, Screw Terminal, Base Mounting, Polished Chrome, White, 1.46 in L x 1.18 in W x 1.03 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Color White
 Dimensions 1.46 in L x 1.18 in W x 1.03 in H
 Lamp Type LED
 Manufacturer Part Number M22-LEDC-W
 Material Polished Chrome
 Mounting Type Base
 PART NUMBER KEYWORDS M22-LEDC-W ; M22LEDCW ; 10596090 ; 786685277684 ; 78668527768 ; 00786685277684
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CCC Marked,CSA Certified,CE Marked,Bureau Veritas,GoST-R
 Terminal Type Screw
 Voltage Rating 12 to 30 V AC/DC

Features

▪ Our M22 now offers an attractive chrome metal bezel that will enhance appeal to your 22 mm pushbutton applications
▪ This highly versatile line features field convertible functions and customized laser engraving capabilities
▪ LED indicators offer 100000 hr of life in high vibration environments and lenses specifically designed for LED illumination
▪ All components feature an IP66 rating and some carry IP67 and IP69K for washdown environments
