Eaton
M22-LED230-B CH LED BLOCK BLUE 85-264VAC SCREW TERMINAL

Mouse over image to zoom, click to enlarge

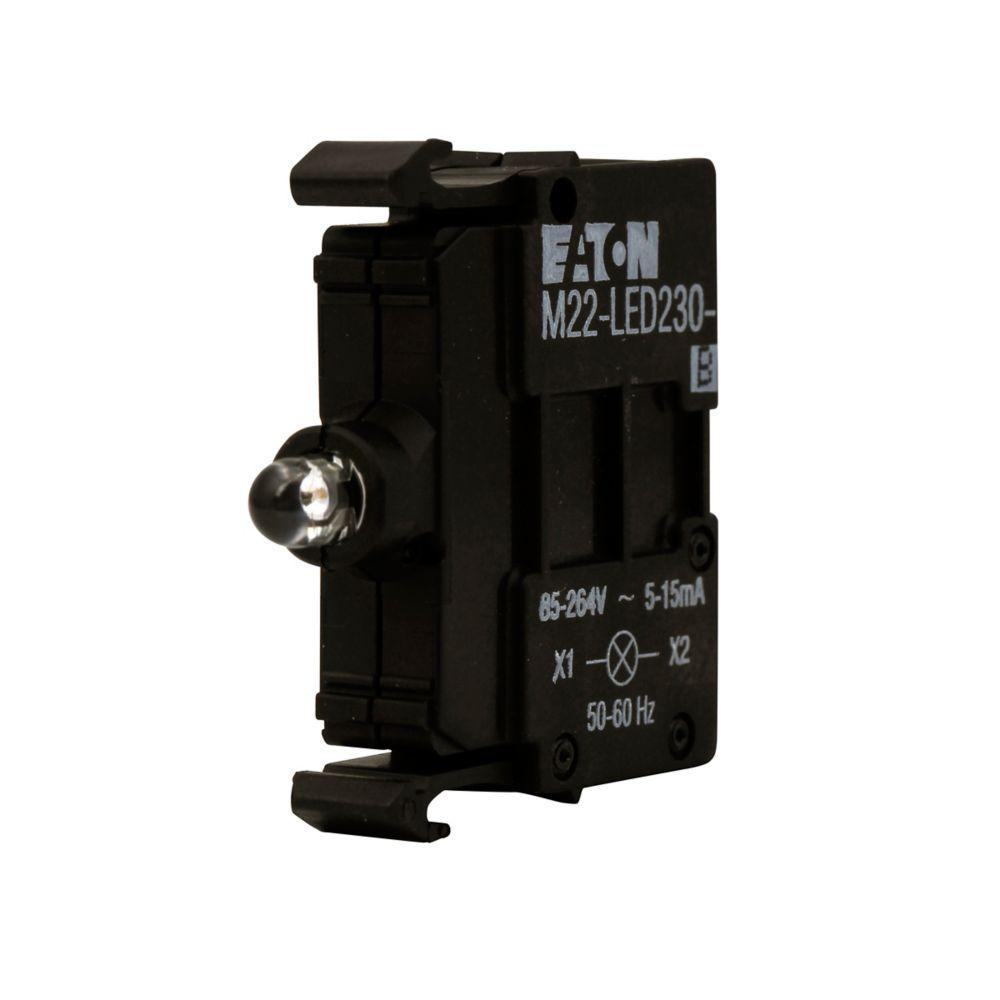

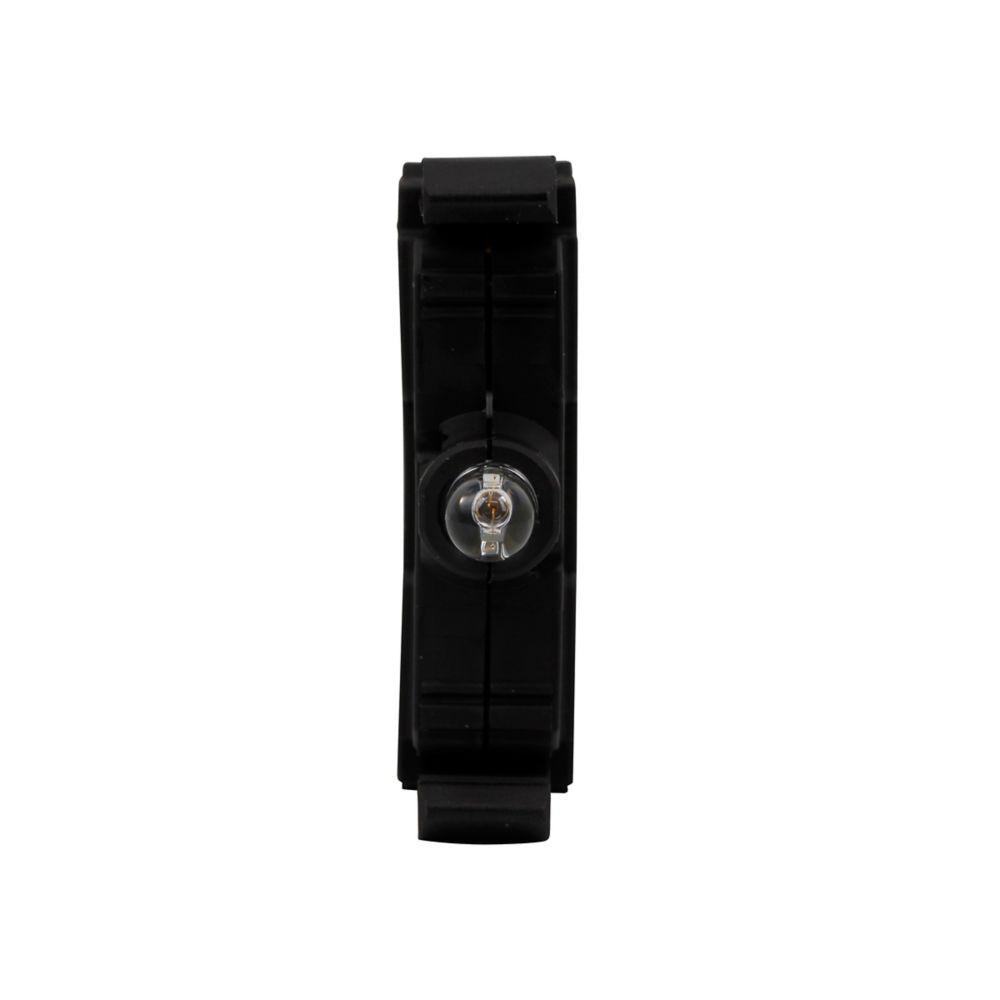

  • M22-LED230-B CH LED BLOCK BLUE 85-264VAC SCREW TERMINAL
  • M22-LED230-B CH LED BLOCK BLUE 85-264VAC SCREW TERMINAL
  • M22-LED230-B CH LED BLOCK BLUE 85-264VAC SCREW TERMINAL
  • M22-LED230-B CH LED BLOCK BLUE 85-264VAC SCREW TERMINAL

Description: EATON Illuminated Light Unit, Series: M22, 22.5 mm Size, LED Lamp, 85 to 264 V AC, Screw Terminal, Flush Mounting, Blue, 1.46 in L x 1.18 in W x 1.03 in H Dimensions

Manufacturer PN: M22-LED230-B

UPC:  78668527763

Kendall Electric Inc PN: 2801489

Invoice Description:

M22-LED230-B CH LED BLOCK BLUE 85-264VAC SCREW TERMINAL


SPEC SHEET

▸ See All in Pushbutton & Switch Light Source Units


How Can We Make This Page Better?

EATON M22-LED230-B Illuminated Light Unit, 22.5 mm, LED Lamp, 85 to 264 V AC, Screw Terminal, Blue

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON Illuminated Light Unit, Series: M22, 22.5 mm Size, LED Lamp, 85 to 264 V AC, Screw Terminal, Flush Mounting, Blue, 1.46 in L x 1.18 in W x 1.03 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels, OEMs, Automation and Logic Control Equipment Applications
 Brand Name EATON
 Color Blue
 Dimensions 1.46 in L x 1.18 in W x 1.03 in H
 Lamp Type LED
 Manufacturer Part Number M22-LED230-B
 Mounting Type Flush
 PART NUMBER KEYWORDS M22-LED230-B ; M22LED230B ; 10596085 ; 786685277639 ; 78668527763 ; 00786685277639
 Series M22
 Size 22.5 mm
 Standards/Approvals CSA Certified,CCC Marked,Lloyd's Register Certified,CE Marked,Bureau Veritas,GoST-R
 Terminal Type Screw
 Video Links
 Voltage Rating 85 to 264 V AC

Features

▪ NEMA 4X/13/IP66 enclosure rating
