Eaton

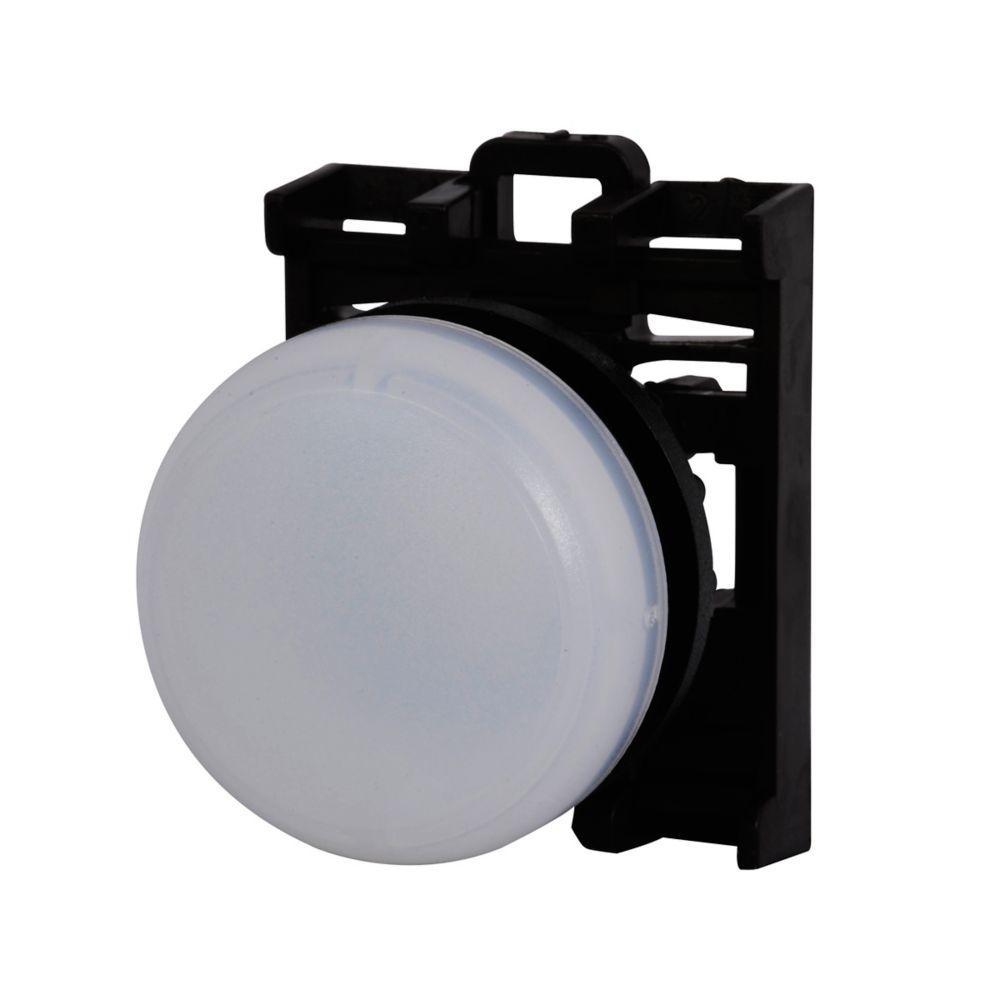

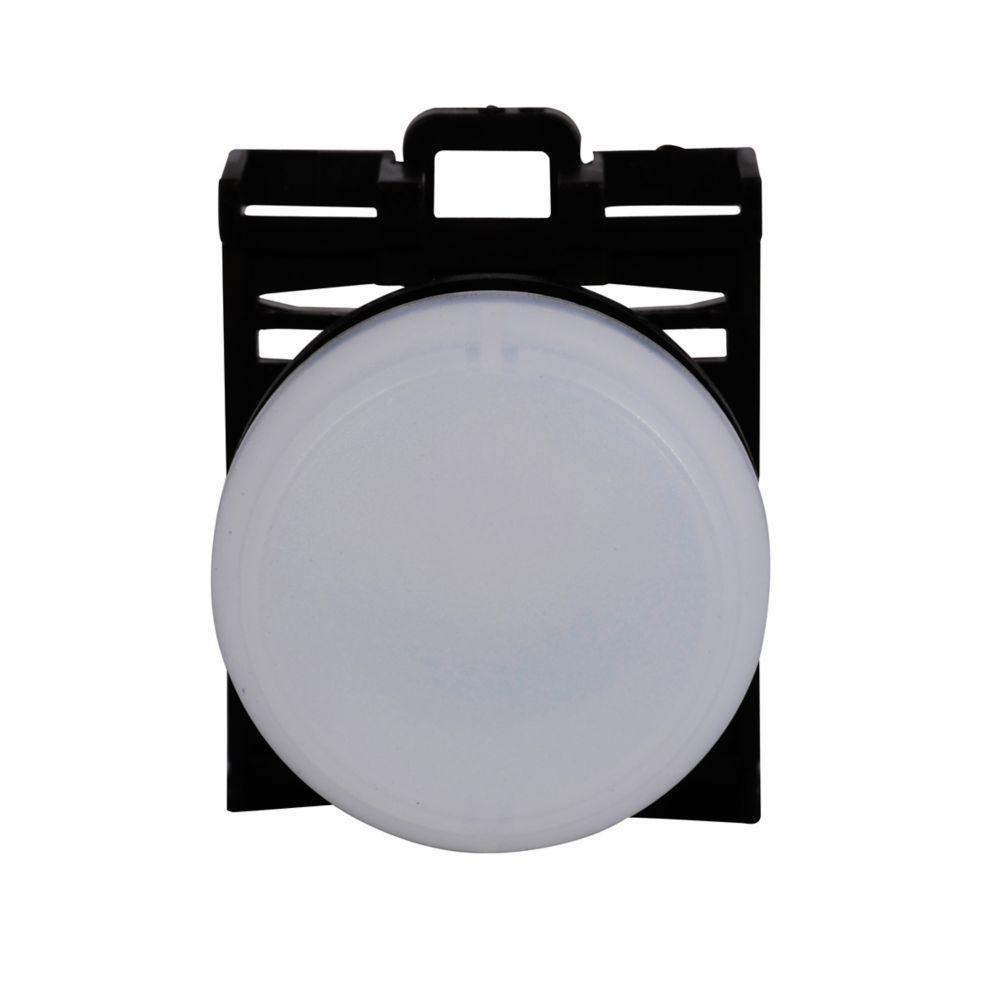

M22-L-W CH PILOT INDICATING LIGHT 22MM OPERATOR WHITE FLAT LENS

Mouse over image to zoom, click to enlarge

  • M22-L-W CH PILOT INDICATING LIGHT 22MM OPERATOR WHITE FLAT LENS
  • M22-L-W CH PILOT INDICATING LIGHT 22MM OPERATOR WHITE FLAT LENS
  • M22-L-W CH PILOT INDICATING LIGHT 22MM OPERATOR WHITE FLAT LENS
  • M22-L-W CH PILOT INDICATING LIGHT 22MM OPERATOR WHITE FLAT LENS

Description: EATON Illuminated Indicating Light Operator, Modular Resistor, Series: M22, 22.5 mm Size, Momentary Contact Mode, 120/240 V AC, Flush Operator, LED Lamp, NEMA 4X/13/IP66/IP67/IP69K Enclosure, -13 to 158 deg F, Plastic, White

Manufacturer PN: M22-L-W

UPC:  78668527861

Kendall Electric Inc PN: 2857251

Invoice Description:

M22-L-W CH PILOT INDICATING LIGHT 22MM OPERATOR WHITE FLAT LENS


SPEC SHEET

▸ See All in Pilot Light Operators


How Can We Make This Page Better?

EATON M22-L-W Modular Resistor Illuminated Indicating Light Operator, 22.5 mm, Flush Operator, Momentary Contact, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON Illuminated Indicating Light Operator, Modular Resistor, Series: M22, 22.5 mm Size, Momentary Contact Mode, 120/240 V AC, Flush Operator, LED Lamp, NEMA 4X/13/IP66/IP67/IP69K Enclosure, -13 to 158 deg F, Plastic, White

Specifications

 Application Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Color White
 Enclosure NEMA 4X/13/IP66/IP67/IP69K
 Lamp Type LED
 Manufacturer Part Number M22-L-W
 Material Plastic
 PART NUMBER KEYWORDS M22-L-W ; M22LW ; 10596183 ; 786685278612 ; 78668527861 ; 00786685278612
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CCC Marked,CSA Certified,GoST-R,Bureau Veritas,CE Marked
 Temperature Rating -13 to 158 deg F
 Type Modular Resistor
 Voltage Rating 120/240 V AC

Features

▪ Customizable laser engraving on all lenses
▪ LED offering only for improved brightness quality and up to 100000 hr of operation
▪ Lenses designed specifically for LED illumination
▪ Modular construction makes assembly fast and simplifies stocking of components and complete devices
▪ Capable of communicating via ASi protocol with ASi adapter modules
