Eaton

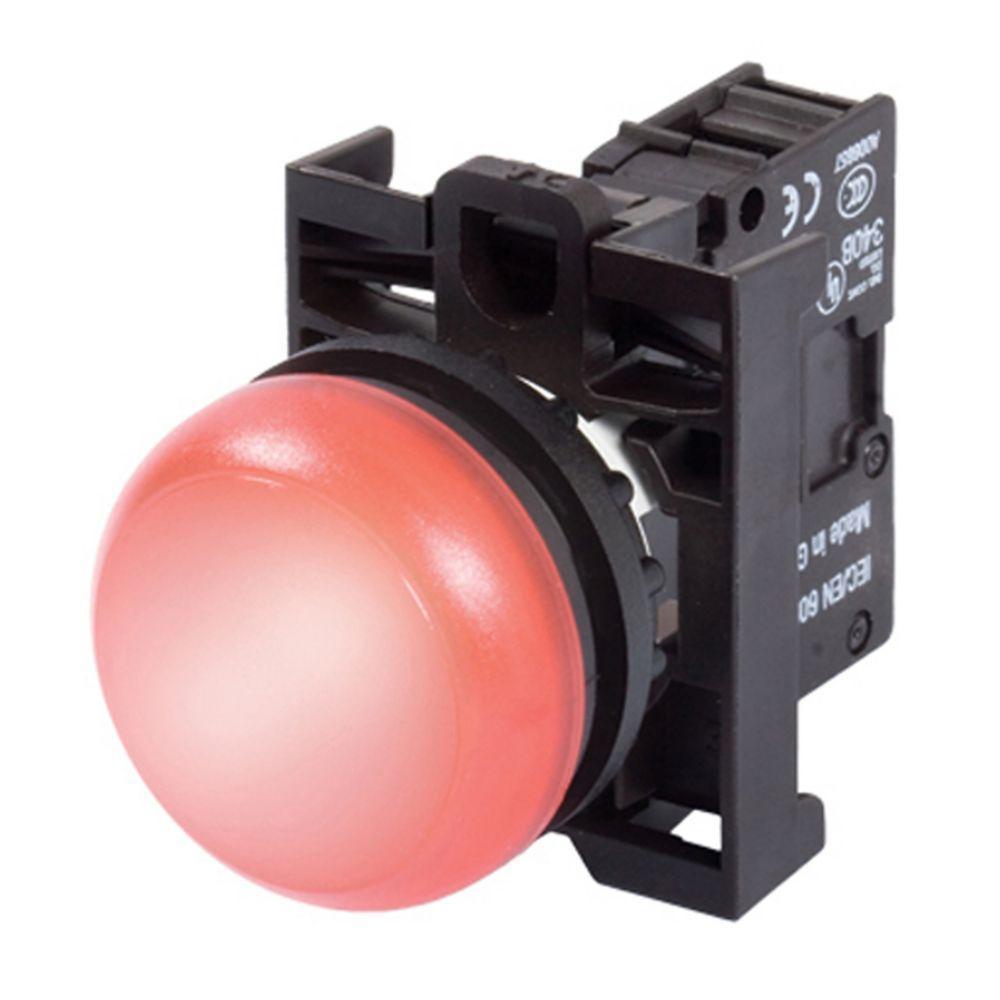

M22-L-R-R CH PILOT INDICATING LIGHT 22MM RED FLAT LENS LED 12-30V

Mouse over image to zoom, click to enlarge

  • M22-L-R-R CH PILOT INDICATING LIGHT 22MM RED FLAT LENS LED 12-30V
  • M22-L-R-R CH PILOT INDICATING LIGHT 22MM RED FLAT LENS LED 12-30V

Description: EATON Indicating Light, Illuminated Modular, Series: M22, 12 to 30 V AC/DC, Flush Button Style, Red Lens, LED Lamp, Red, 22.5 mm Size, 100000 hr Average Life, NEMA 4X/13/IP67/IP69K Enclosure

Manufacturer PN: M22-L-R-R

UPC:  78668527860

Kendall Electric Inc PN: 2688883

Invoice Description:

M22-L-R-R CH PILOT INDICATING LIGHT 22MM RED FLAT LENS LED 12-30V


SPEC SHEET

▸ See All in Pilot Lights


How Can We Make This Page Better?

EATON M22-L-R-R Illuminated Modular Indicating Light, 12 to 30 V AC/DC

Log In for Pricing and Availability




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON Indicating Light, Illuminated Modular, Series: M22, 12 to 30 V AC/DC, Flush Button Style, Red Lens, LED Lamp, Red, 22.5 mm Size, 100000 hr Average Life, NEMA 4X/13/IP67/IP69K Enclosure

Specifications

 Application Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
 Average Life 100000 hr
 Brand Name EATON
 Color Red
 Enclosure NEMA 4X/13/IP67/IP69K
 Lamp Type LED
 Lens Color Red
 Manufacturer Part Number M22-L-R-R
 PART NUMBER KEYWORDS M22-L-R-R ; M22LRR ; 10596182 ; 786685278605 ; 78668527860 ; 00786685278605
 Series M22
 Size 22.5 mm
 Standards/Approvals Lloyd's Register Certified,CCC Marked,CSA Certified,GoST-R,CE Marked,Bureau Veritas
 Style Flush Button
 Type Illuminated Modular
 Voltage Rating 12 to 30 V AC/DC

Features

▪ Customizable laser engraving on all lenses
▪ LED offering only for improved brightness quality and up to 100000 hr of operation
▪ Lenses designed specifically for LED illumination
▪ Modular construction makes assembly fast and simplifies stocking of components and complete devices
▪ Capable of communicating via ASi protocol with ASi adapter modules
