Eaton

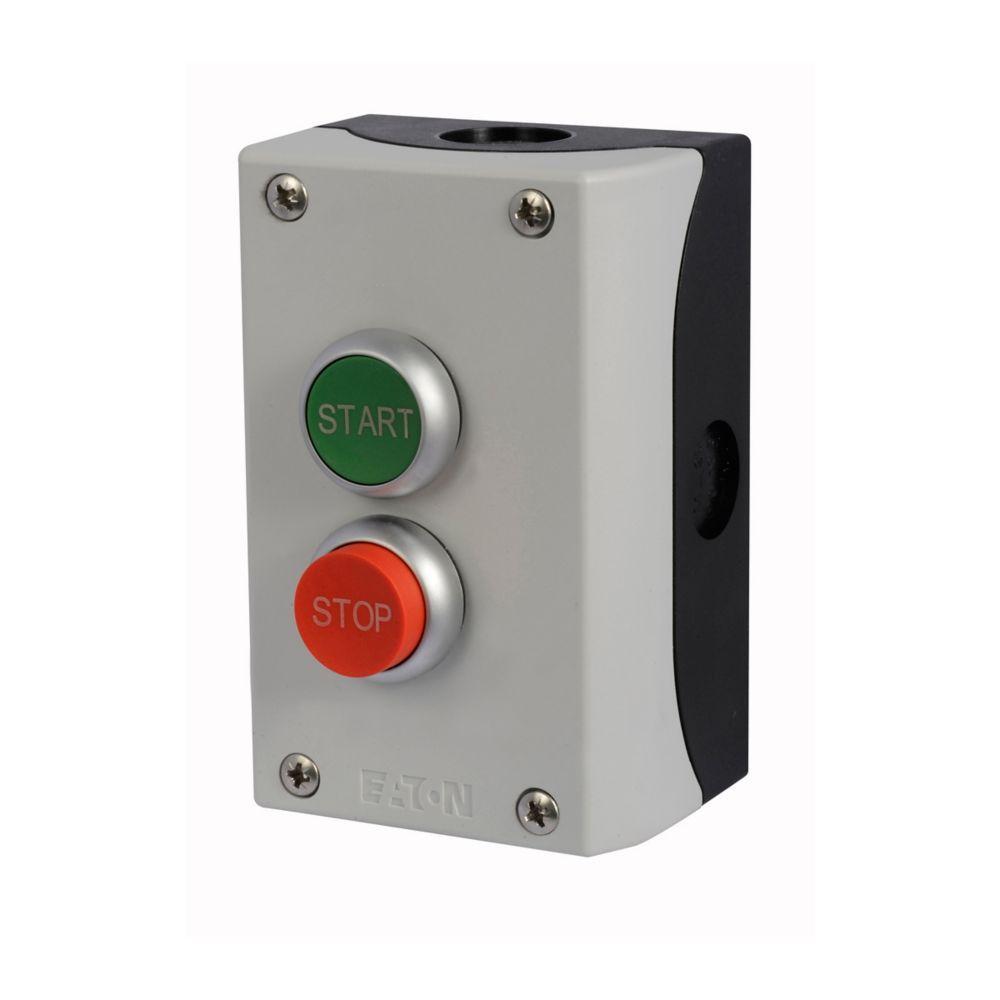

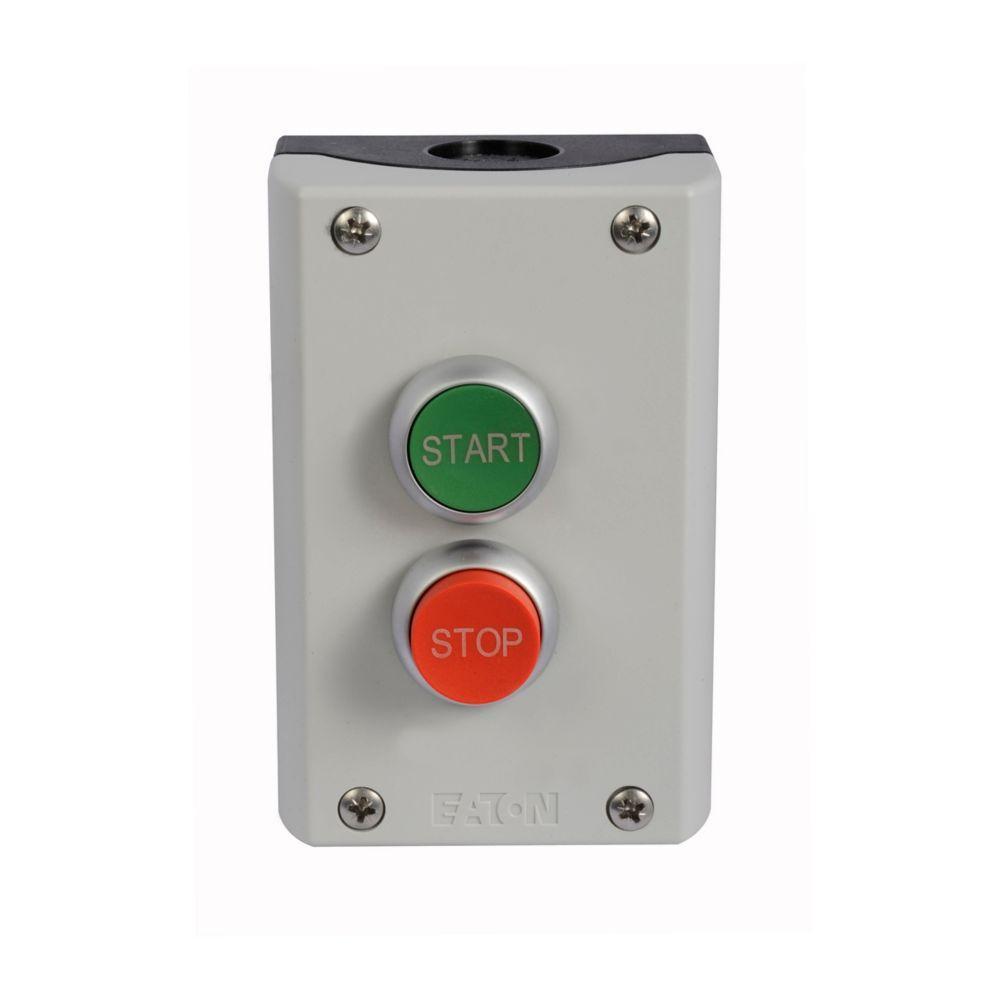

M22-C2-M2V CH ASSEMBLED GREY PUSHBUTTON STATION FLUSH GREEN START 1NO EXTENDED RED STOP 1NC VERTICAL ORIENTATION

Mouse over image to zoom, click to enlarge

  • M22-C2-M2V CH ASSEMBLED GREY PUSHBUTTON STATION FLUSH GREEN START 1NO EXTENDED RED STOP 1NC VERTICAL ORIENTATION
  • M22-C2-M2V CH ASSEMBLED GREY PUSHBUTTON STATION FLUSH GREEN START 1NO EXTENDED RED STOP 1NC VERTICAL ORIENTATION
  • M22-C2-M2V CH ASSEMBLED GREY PUSHBUTTON STATION FLUSH GREEN START 1NO EXTENDED RED STOP 1NC VERTICAL ORIENTATION

Description: EATON Pushbutton Control Station, Non-Illuminated Assembled, Series: M22, 2 Operators, 1NO-1NC Contact Configuration, Momentary Contact Mode, Legend: START/STOP, Green/Red Legend, Extended Pushbutton Actuator, NEMA 4X/13/IP66 NEMA Rating, Surface Mounting, Polycarbonate, Gray, 4.72 x 3.15 x 2.7 in Dimensions

Manufacturer PN: M22-C2-M2V

UPC:  78668528301

Kendall Electric Inc PN: 3760637

Invoice Description:

M22-C2-M2V CH ASSEMBLED GREY PUSHBUTTON STATION FLUSH GREEN START 1NO EXTENDED RED STOP 1NC VERTICAL ORIENTATION


SPEC SHEET

▸ See All in Pushbutton Control Stations


How Can We Make This Page Better?

EATON M22-C2-M2V Non-Illuminated Assembled Pushbutton Control Station, 1NO-1NC Contact, 2 Operators, NEMA 4X/13/IP66 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
EATON Pushbutton Control Station, Non-Illuminated Assembled, Series: M22, 2 Operators, 1NO-1NC Contact Configuration, Momentary Contact Mode, Legend: START/STOP, Green/Red Legend, Extended Pushbutton Actuator, NEMA 4X/13/IP66 NEMA Rating, Surface Mounting, Polycarbonate, Gray, 4.72 x 3.15 x 2.7 in Dimensions

Specifications

 Actuator Extended Pushbutton
 Application Automation and Logic Control Equipment Applications
 Brand Name EATON
 Color Gray
 Contact Configuration 1NO-1NC
 Dimensions 4.72 x 3.15 x 2.7 in
 Legend START/STOP
 Legend Color Green/Red
 Manufacturer Part Number M22-C2-M2V
 Material Polycarbonate
 Mounting Type Surface
 NEMA Rating NEMA 4X/13/IP66
 Number of Operators 2
 PART NUMBER KEYWORDS M22-C2-M2V ; M22C2M2V ; 10596618 ; 786685283012 ; 78668528301 ; 00786685283012
 Series M22
 Standards/Approvals CCC Marked,CSA Certified,Lloyd's Register Certified,CE Marked,GoST-R,Bureau Veritas
 Type Non-Illuminated Assembled

Features

▪ One element, 1NO green start inscription flush pushbutton
▪ Two element, 1NC red stop inscription extended pushbutton

Resources

 Catalog Page
 Product Data Sheet
