M100J30 MERSEN SWITCH.FUS 100A J R 3+0 POS.

Mouse over image to zoom, click to enlarge

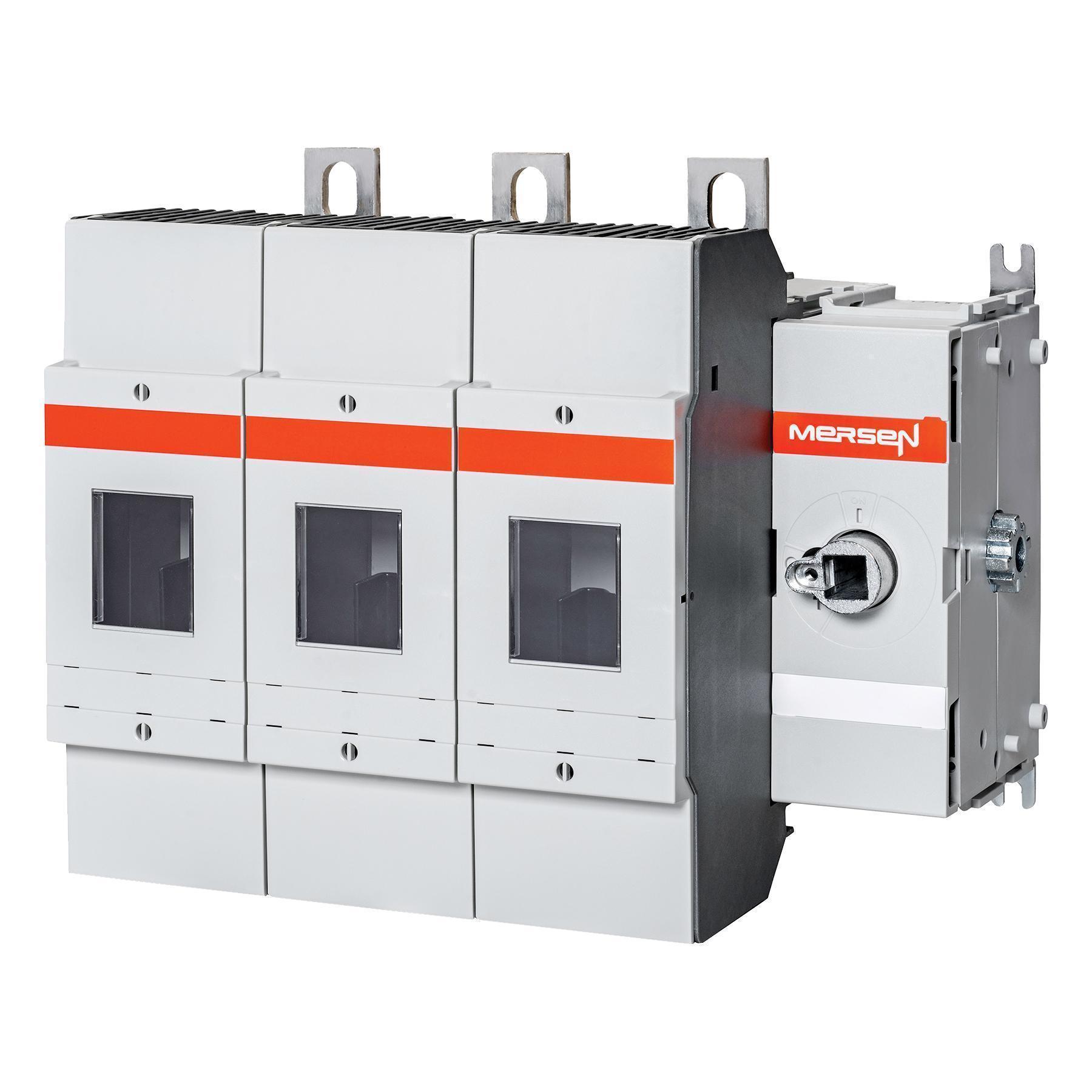

  • M100J30 MERSEN SWITCH.FUS 100A J R 3+0 POS.
  • M100J30 MERSEN SWITCH.FUS 100A J R 3+0 POS.

Description: Mersen Disconnect Switch, 3+0 Position Class J Fusible, 600 V AC, 100 A, 30 hp, 60 hp, 75 hp, 50 Hz Frequency, 3 Pole, Handle Actuator, Base Mounting, Blade Terminal, -40 to 40 deg C, 220 mm H x 150.7 mm W x 104.5 mm D Dimensions, BE

Manufacturer PN: M100J30

UPC:  60534055805

Kendall Electric Inc PN: 3504632

Invoice Description:

M100J30 MERSEN SWITCH.FUS 100A J R 3+0 POS.


SPEC SHEET

How Can We Make This Page Better?

Mersen M100J30 3+0 Position Class J Fusible Disconnect Switch, 600 V AC, 100 A, 30 hp, 60 hp, 75 hp, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Mersen’s fusible disconnect switches are listed to UL 98 and bear the CE mark conforming to IEC 60947-3. They are “service entrance” devices capable of fully rated load-break and load-make. While longterm safety, reliability, and functionality are always paramount in the design of our products, these switches are also engineered to have the smallest footprint. The modular design allows placement of the handle anywhere amongst the poles. The fuse doors cannot open when the switch is in the “ON” position, and all switches are double-break, which isolates both fuse clips from voltage during fuse replacement. The switches’ “Test” position allows actuation of the auxiliary contacts without main power. Power taps enable energizing a CPT or surge device without the need for a separate terminal block. A wide range of ergonomic handles and accessories is available.
Mersen Disconnect Switch, 3+0 Position Class J Fusible, 600 V AC, 100 A, 30 hp, 60 hp, 75 hp, 50 Hz Frequency, 3 Pole, Handle Actuator, Base Mounting, Blade Terminal, -40 to 40 deg C, 220 mm H x 150.7 mm W x 104.5 mm D Dimensions, BE

Specifications

 Actuator Type Handle
 Amperage Rating 100 A
 Application Main Disconnects, Short Circuit Protection, Electrical Isolation, Overcurrent Protection and Safety Switch
 Brand Name Mersen
 Dimensions 220 mm H x 150.7 mm W x 104.5 mm D
 Frequency Rating 50 Hz
 Horsepower 30 hp, 60 hp, 75 hp
 Manufacturer Part Number M100J30
 Material BE
 Mounting Type Base
 Number of Poles 3
 PART NUMBER KEYWORDS M100J30 ; 13099225 ; 03605340558050 ; 3605340558050
 Standards/Approvals RoHS Compliant|CSA Certified|UL Listed Guide WHTY|File No. E191605|UL 98|IEC 60947-3|cULus Listed|CE Certified
 Temperature Rating -40 to 40 deg C
 Terminal Type Blade
 Type 3+0 Position Class J Fusible
 Voltage Rating 600 V AC

Features

▪ Multiple Configurations
▪ Power taps
▪ Adjustable shaft depth
▪ Fuse monitoring
▪ Interlocked fuse doors
▪ 30 hp at 240 VAC, 60 hp at 480 VAC, 75 hp at 600 VAC 3-phase horsepower rating
