Eaton

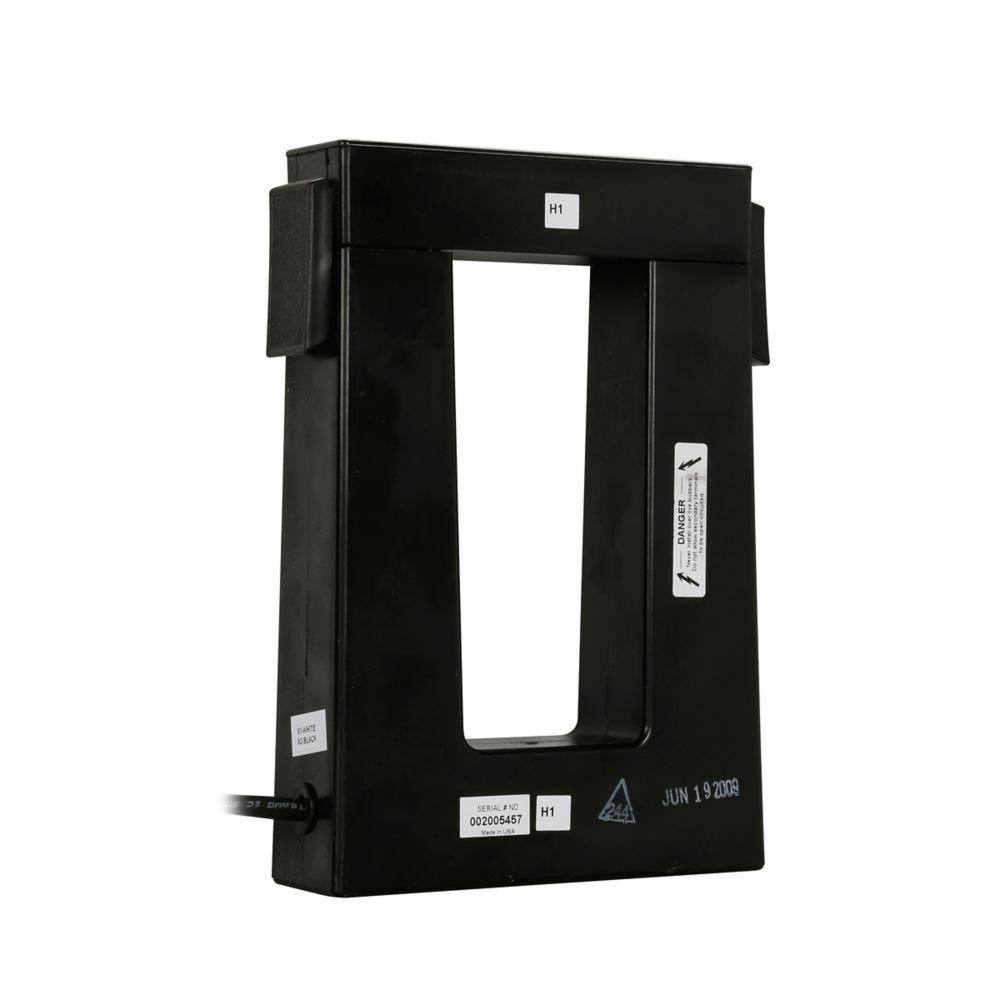

M080-202 CH SPLIT CORE CT 2000 PRIMARY AMPS, 1% ACCURACY, 2.6"" X 6.25"" W

Mouse over image to zoom, click to enlarge

  • M080-202 CH SPLIT CORE CT 2000 PRIMARY AMPS, 1% ACCURACY, 2.6"" X 6.25"" W
  • M080-202 CH SPLIT CORE CT 2000 PRIMARY AMPS, 1% ACCURACY, 2.6"" X 6.25"" W

Description: EATON Current Transformer, Split Core, Series: M080, 2000:5 Current Ratio, 2000 A Primary Current, 5 A Secondary Current, 600 V AC, 60 Hz Frequency, 1 % Accuracy, Wire Lead Connection, 6.25 in L x 6.05 in W x 1.75 in H Dimensions

Manufacturer PN: M080-202

UPC:  78211426517

Kendall Electric Inc PN: 4701216

Invoice Description:

M080-202 CH SPLIT CORE CT 2000 PRIMARY AMPS, 1% ACCURACY, 2.6"" X 6.25"" W


SPEC SHEET

▸ See All in Current Transformers


How Can We Make This Page Better?

EATON M080-202 Split Core Current Transformer, 2000:5 Current Ratio, 2000 A Primary, 5 A Secondary, 600 V AC, 60 Hz

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Split core AC current sensors have different hole sizes and current ratings to suit any application. Split core models are perfect for retrofits. Output is fixed at the industry standard of 0 to 5A.
EATON Current Transformer, Split Core, Series: M080, 2000:5 Current Ratio, 2000 A Primary Current, 5 A Secondary Current, 600 V AC, 60 Hz Frequency, 1 % Accuracy, Wire Lead Connection, 6.25 in L x 6.05 in W x 1.75 in H Dimensions

Specifications

 Accuracy 1 %
 Application New Construction, Retrofit, Commercial Grade, Industrial Metering, Relaying, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type Wire Lead
 Current Ratio 2000:5
 Dimensions 6.25 in L x 6.05 in W x 1.75 in H
 Frequency Rating 60 Hz
 Manufacturer Part Number M080-202
 Primary Current 2000 A
 Secondary Current 5 A
 Series M080
 Standards/Approvals CSA Certified,UL Recognized
 Type Split Core
 Video Links
 Voltage Rating 600 V AC

Features

▪ Split core circuits are specifically designed to be installed around primary conductors without disconnecting wires or breaking the circuit to be monitored
▪ These current transformers are perfect solutions for energy management applications and are manufactured for installation ease
▪ 2.6 x 6.25 in window
