LEDVANCE

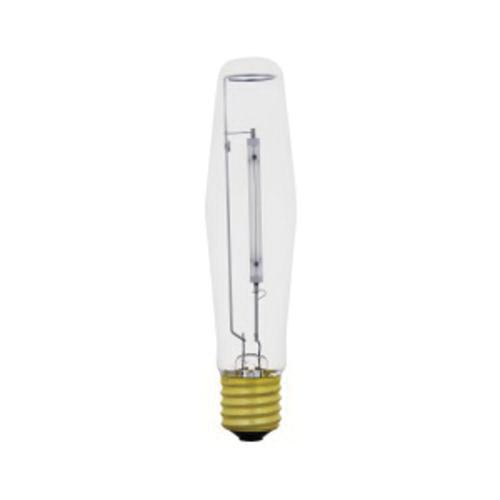

LU400PLUS/ECO SYL 400W ET18 MOGUL 67312 Non-Cycling HPS Lamp

Mouse over image to zoom, click to enlarge

  • LU400PLUS/ECO SYL 400W ET18 MOGUL 67312 Non-Cycling HPS Lamp
  • LU400PLUS/ECO SYL 400W ET18 MOGUL 67312 Non-Cycling HPS Lamp

Description: Sylvania High Pressure Sodium Bulb, HID, LU400/PLUS/ECO Designation, 400 W Wattage, 100 V AC, E39 Lamp Base, ET18 Shape, 50000 Lumens Initial/42700 Lumens Mean Lumens, 40000 hr Average Life, 22 CRI, 2100 K Color Temperature, Clear Lamp, Open Fixture, 2.244 in Dia x 9.75 in L Dimensions

Manufacturer PN: LU400/PLUS/ECO/67312

UPC:  04613567312

Kendall Electric Inc PN: 30518

Invoice Description:

LU400PLUS/ECO SYL 400W ET18 MOGUL 67312 Non-Cycling HPS Lamp


SPEC SHEET

▸ See All in HID - High Pressure Sodium


How Can We Make This Page Better?

Sylvania LU400/PLUS/ECO/67312 HID High Pressure Sodium Bulb, 400 W, E39 Lamp, ET18 Shape, 50000 Lumens Initial/42700 Lumens Mean Lumens

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The SYLVANIA LUMALUX PLUS and LUMALUX PLUS ECO lamps incorporate the latest technology to eliminate the end-of-life cycling of HPS lamps. They remain off at end-of-life. LUMALUX PLUS/ECO lamps are constructed with lead-free welded bases and pass the existing Federal TCLP test. OSRAM SYLVANIA offers the most comprehensive lamp and ballast system solutions. For compatible SYLVANIA ballasts please refer to our Lamp and Ballast Catalog or contact your local SYLVANIA representative.
Sylvania High Pressure Sodium Bulb, HID, LU400/PLUS/ECO Designation, 400 W Wattage, 100 V AC, E39 Lamp Base, ET18 Shape, 50000 Lumens Initial/42700 Lumens Mean Lumens, 40000 hr Average Life, 22 CRI, 2100 K Color Temperature, Clear Lamp, Open Fixture, 2.244 in Dia x 9.75 in L Dimensions

Specifications

 Application For manufacturing facilities, parking lots and garages, street and roadway lighting and warehouses
 Average Life 40000 hr
 Brand Name Sylvania
 Color Rendering Index CRI 22
 Color Temperature 2100 K
 Designation LU400/PLUS/ECO
 Dimensions 2.244 in Dia x 9.75 in L
 Fixture Type Open
 Lamp Base Type E39
 Lamp Finish Clear
 Lumens 50000 Lumens Initial/42700 Lumens Mean
 Manufacturer Part Number LU400/PLUS/ECO/67312
 PART NUMBER KEYWORDS LU400/PLUS/ECO/67312 ; LU400PLUSECO67312 ; 67312 ; 8146563 ; 046135673122 ; 46135673122 ; 04613567312 ; 00046135673122
 Shape ET18
 Standards/Approvals S51
 Type HID
 Voltage Rating 100 V AC
 Wattage 400 W

Features

▪ 5.75 in light center length
▪ 3 to 4 min warm-up time
▪ 3.21 in arc length
▪ 50000 initial/42700 mean vertical lumens
▪ 1 min hot restrike time
▪ Over 65% longer life than comparable HPS lamps
▪ Same initial lumens as a standard HPS lamp with a 15% higher maintained light output at end-of rated life
▪ Non-cycling lamps mean quicker identification of outages, fewer repeat trips and provides less stress to the igniter
▪ Same warm-up and hot restrike time as standard HPS
▪ Lamp design eliminates voltage rise (standard high pressure sodium lamps may exhibit voltage rise of 30/60 VAC)
▪ Passes Federal TCLP test, lead-free and up to 90% less mercury than standard HPS lamps
▪ Lead-free base allows a higher maximum base temperature of 250 deg C, 40 deg C higher than ANSI specification for lead soldered base
▪ Direct replacements for standard HPS, operates on ballast of similar wattage
▪ Universal operating position
