RAB Lighting

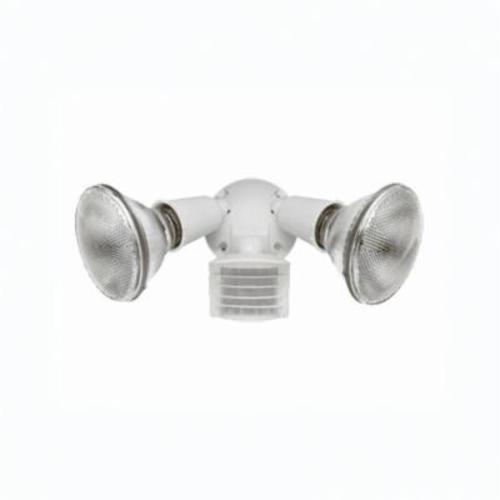

LU300W RAB WHT 300W SENSOR W/2-FLDS

Mouse over image to zoom, click to enlarge

  • LU300W RAB WHT 300W SENSOR W/2-FLDS
  • LU300W RAB WHT 300W SENSOR W/2-FLDS
  • LU300W RAB WHT 300W SENSOR W/2-FLDS

Description: RAB Luminator® Floodlight Kit, 120 V AC, 300 W Fixture, 2.5 A, PAR38 Incandescent Lamp, 150 W Lamp, Medium Lamp Base, 2 Lamps, White Light, Vandal and Corrosion-Resistant/Double Look Down Lens, Wall Mounting, Polycarbonate Housing Material, 110 deg Sensing, 8 s to 10 min Time Delay, 15-1/2 in L x 4-1/2 in W Dimensions

Manufacturer PN: LU300W

UPC:  01981375011

Kendall Electric Inc PN: 2018096

Invoice Description:

LU300W RAB WHT 300W SENSOR W/2-FLDS


SPEC SHEET

▸ See All in Outdoor Motion Sensor Lighting


How Can We Make This Page Better?

RAB Luminator® LU300W Floodlight Kit, (2) PAR38 Incandescent Lamp, 300 W Fixture, 120 V AC, Polycarbonate Housing

Log In for Pricing and Availability




Description

RAB Luminator® Floodlight Kit, 120 V AC, 300 W Fixture, 2.5 A, PAR38 Incandescent Lamp, 150 W Lamp, Medium Lamp Base, 2 Lamps, White Light, Vandal and Corrosion-Resistant/Double Look Down Lens, Wall Mounting, Polycarbonate Housing Material, 110 deg Sensing, 8 s to 10 min Time Delay, 15-1/2 in L x 4-1/2 in W Dimensions

Specifications

 Amperage Rating 2.5 A
 Application Outdoor and Wet Location Applications
 Brand Name RAB
 Dimensions 15-1/2 in L x 4-1/2 in W
 Fixture Wattage 300 W
 Housing Material Polycarbonate
 Includes Luminator® Sensor, (2) Floodlights, Round Mounting Plate
 Lamp Base Type Medium
 Lamp Type Incandescent
 Lamp Wattage 150 W
 Light Color White
 Manufacturer Part Number LU300W
 Mounting Type Wall
 Number of Lamps 2
 Sensing Angle 110 deg
 Standards/Approvals UL Listed
 Time Delay 8 s to 10 min
 Voltage Rating 120 V AC

Features

▪ Deactivates lights during daylight
▪ Fully adjustable for 24 hr operation or custom applications
▪ 5 min of test time when power is turned on, rests to auto mode without further adjustment
▪ Made of tough, corrosion-resistant polycarbonate sensor housing
▪ Lamps not included
▪ Luminator® sensor with two weatherproof, corrosionproof floodlights and round mounting plate
▪ Pre-wired for easy installation
▪ Both floods and sensor have universal ball swivels for easy tool less adjustment
▪ Non-fixture
▪ Manual override
▪ Fully adjustable positioning
▪ 110 deg double look down lens
▪ Tough, vandal-resistant lens and grill
▪ LS300 fits 1/2 in standard threaded cover plates
▪ Two flip logic prevents activation by momentary power outages
▪ Override resets to auto after 6 hr or at dawn
▪ No extra wiring needed
▪ Withstands up to 3000 VAC
