Dialight

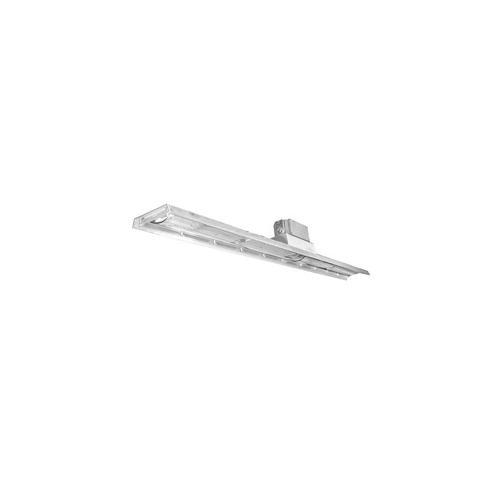

LTM3C4H2W DIALIGHT 66 WATT DUROSITE 4' LED LINEAR GEN II IP66 NEMA 4X 6700 LUMENS DIFFUSED LENS

Mouse over image to zoom, click to enlarge

  • LTM3C4H2W DIALIGHT 66 WATT DUROSITE 4' LED LINEAR GEN II IP66 NEMA 4X 6700 LUMENS DIFFUSED LENS
  • LTM3C4H2W DIALIGHT 66 WATT DUROSITE 4' LED LINEAR GEN II IP66 NEMA 4X 6700 LUMENS DIFFUSED LENS

Description: DuroSite® Linear Fixture, Generation II Medium Beam Top Conduit, 100 to 277 V AC, 66 W Fixture, LED Lamp, >100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 75 CRI, Polycarbonate Diffuser Lens, 6700 Lumens, NEMA 4X/IP66 Enclosure, Threaded Mounting, Copper-Free Aluminum Housing Material, Gray Housing Finish, 4 ft L x 4.94 in W x 7.47 in H Dimensions

Manufacturer PN: LTM3C4H2W

UPC:  56020948827

Kendall Electric Inc PN: 3538898

Invoice Description:

LTM3C4H2W DIALIGHT 66 WATT DUROSITE 4' LED LINEAR GEN II IP66 NEMA 4X 6700 LUMENS DIFFUSED LENS


SPEC SHEET

▸ See All in Outdoor Ceiling Lighting


How Can We Make This Page Better?

DuroSite® LTM3C4H2W Generation II Medium Beam Top Conduit Linear Fixture,) LED Lamp, 66 W Fixture, 100 to 277 V AC, Gray Housing

Log In for Pricing and Availability




Description

Dialight highly efficient and lightweight DuroSite® low profile/top conduit linear replaces HID and fluorescent lighting fixtures in industrial applications. the LT/LP rugged solid state design makes it highly resistant to shock and vibration. its fully gasketed IP66 rated enclosure makes it suitable for dusty & wet locations, while its UL 1598/A rating guarantees added protection from salt water spray. the LT/LP also offers wiring and mounting versatility for ease of installation in many lighting applications.
DuroSite® Linear Fixture, Generation II Medium Beam Top Conduit, 100 to 277 V AC, 66 W Fixture, LED Lamp, >100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 75 CRI, Polycarbonate Diffuser Lens, 6700 Lumens, NEMA 4X/IP66 Enclosure, Threaded Mounting, Copper-Free Aluminum Housing Material, Gray Housing Finish, 4 ft L x 4.94 in W x 7.47 in H Dimensions

Specifications

 Application Indoor, Outdoor and Industrial Applications
 Average Life >100000 hr
 Brand Name DuroSite®
 Color Rendering Index CRI 75
 Color Temperature 5000 K
 Dimensions 4 ft L x 4.94 in W x 7.47 in H
 Enclosure NEMA 4X/IP66
 Fixture Wattage 66 W
 Housing Finish Gray
 Housing Material Copper-Free Aluminum
 Light Color Cool White
 Lumens 6700 Lumens
 Manufacturer Part Number LTM3C4H2W
 Mounting Type Threaded
 Standards/Approvals UL 1598A|CSA C22.2 No. 250|ETL Listed|IEC 61000-3-2|FCC Title 47 Subpart B Section 15 Class A
 Type Generation II Medium Beam Top Conduit
 Voltage Rating 100 to 277 V AC

Features

▪ Instant ON/OFF operation
▪ Resistant to water, salt, dust and vibration
▪ Resistant up to 20 psi of hose directed water
▪ Integrated wiring box
▪ Low profile housing for limited space applications
▪ Temperature compensation technology for longer life

Resources

 Catalog Page
 Product Data Sheet
