Acuity Brands

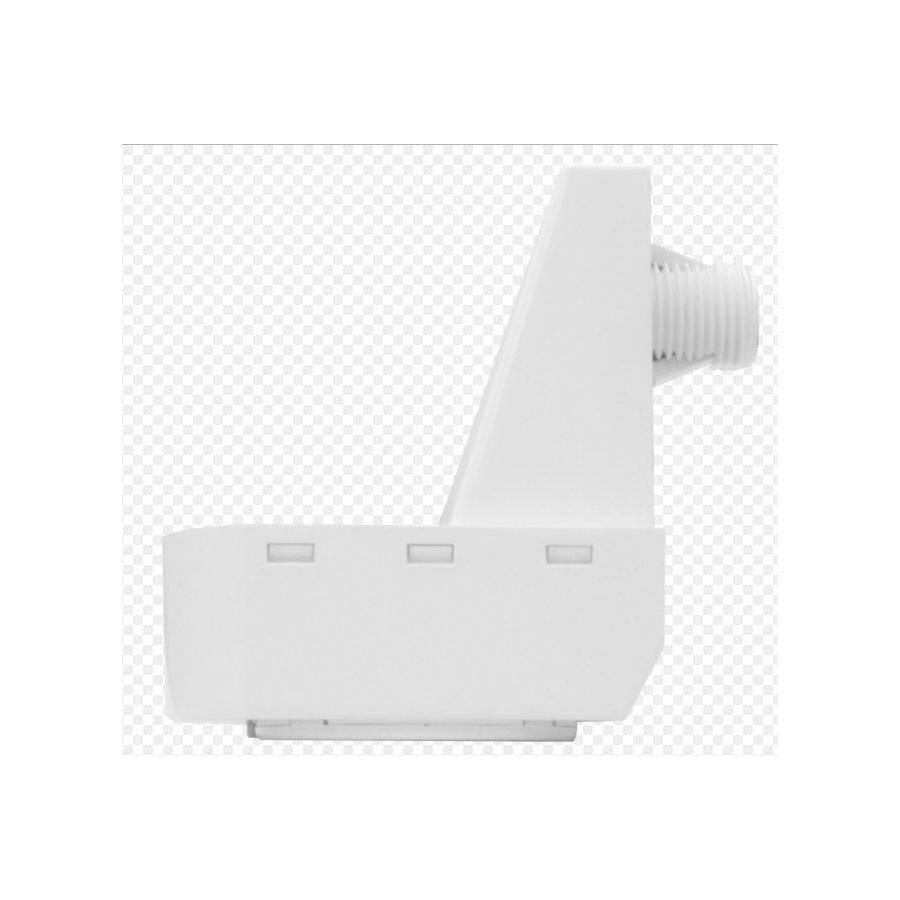

LSXR 6 HVOLT ACUITY BRANDS SENSOR 347-480 VAC

Mouse over image to zoom, click to enlarge

  • LSXR 6 HVOLT ACUITY BRANDS SENSOR 347-480 VAC
  • LSXR 6 HVOLT ACUITY BRANDS SENSOR 347-480 VAC

Description: Sensor Switch™, LSXR, Occupancy Sensor, Series: LSXR, 120/208/240/277 V AC, 1/4 hp Power, Passive Infrared Sensor, 360 deg Viewing, 10 min Time Delay, Fluorescent/LED Lamp, IP66 Enclosure, Fixture Mounting, -10 to 60 deg C, 3-3/4 in H x 2-1/2 in W x 4 in D Dimensions

Manufacturer PN: LSXR6HVOLT

Kendall Electric Inc PN: 4523264

Invoice Description:

LSXR 6 HVOLT ACUITY BRANDS SENSOR 347-480 VAC


SPEC SHEET

▸ See All in Fixture Mount Occupancy Sensors


How Can We Make This Page Better?

Sensor Switch™ LSXR LSXR Occupancy Sensor, 120/208/240/277 V AC, Passive Infrared Sensor, 360 deg Viewing, Fixture Mounting

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The LSXR family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications. All LSXR family sensors utilize passive infrared (PIR) detection and feature interchangeable lenses, providing flexibility for multiple mounting height and coverage pattern requirements. Available options include dual relays, HVOLT powering, and an integrated switching/dimming photocell. All LSXR family sensors utilize 100% digital passive infrared (PIR) detection and power from/switch line voltage. Available options include dual relays, HVOLT powering, and an integrated switching/dimming photocell.
Sensor Switch™, LSXR, Occupancy Sensor, Series: LSXR, 120/208/240/277 V AC, 1/4 hp Power, Passive Infrared Sensor, 360 deg Viewing, 10 min Time Delay, Fluorescent/LED Lamp, IP66 Enclosure, Fixture Mounting, -10 to 60 deg C, 3-3/4 in H x 2-1/2 in W x 4 in D Dimensions

Specifications

 Application Auditorium, Cafeteria, Classroom, Conference Room, Corridor, Gymnasium, Private Office, Restroom, Stairwell and Warehouse/Storage
 Brand Name Sensor Switch™
 Dimensions 3-3/4 in H x 2-1/2 in W x 4 in D
 Enclosure IP66
 Lamp Type Fluorescent/LED
 Manufacturer Part Number LSXR
 Mounting Type Fixture
 PART NUMBER KEYWORDS LSXR ; 224N56 ; 13092045 ; 820476869396 ; 82047686939 ; 00820476869396
 Power Rating 1/4 hp
 Sensor Type Passive Infrared
 Series LSXR
 Standards/Approvals cULus Listed|CSA Certified|CSAus Certified
 Temperature Rating -10 to 60 deg C
 Time Delay 10 min
 Viewing Angle 360 deg
 Voltage Rating 120/208/240/277 V AC

Features

▪ Non volatile settings memory
▪ Convenient test model quickens initial walk and/or photocell testing
▪ Green LED indicator
▪ Lampmaximizer® minimum on times (15 min) enables usage of shorter occupancy times delays while protecting fluorescent lamp life
▪ Default 10 min occupancy times delays
▪ Four interchangeable lenses high mounts 360 deg, low mounts 360 deg, high mounts aisleway, and small motions 360 deg
▪ Integrated mounting bracket drops lens down 3 in from chase nipple no bracket accessory required
▪ 100% digital PIR detection, provides excellent RF immunity
▪ No PIR field calibration or sensitivity adjustments required
▪ Single or dual relay versions designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads
▪ Powers from single or two phase line connections
▪ Reversible hot and loads wires eliminates backwards wiring
▪ Photocell and 0 to10 VDC dimming options
▪ Digital pushbuttons programming no tools or analog adjustments required
