Eaton

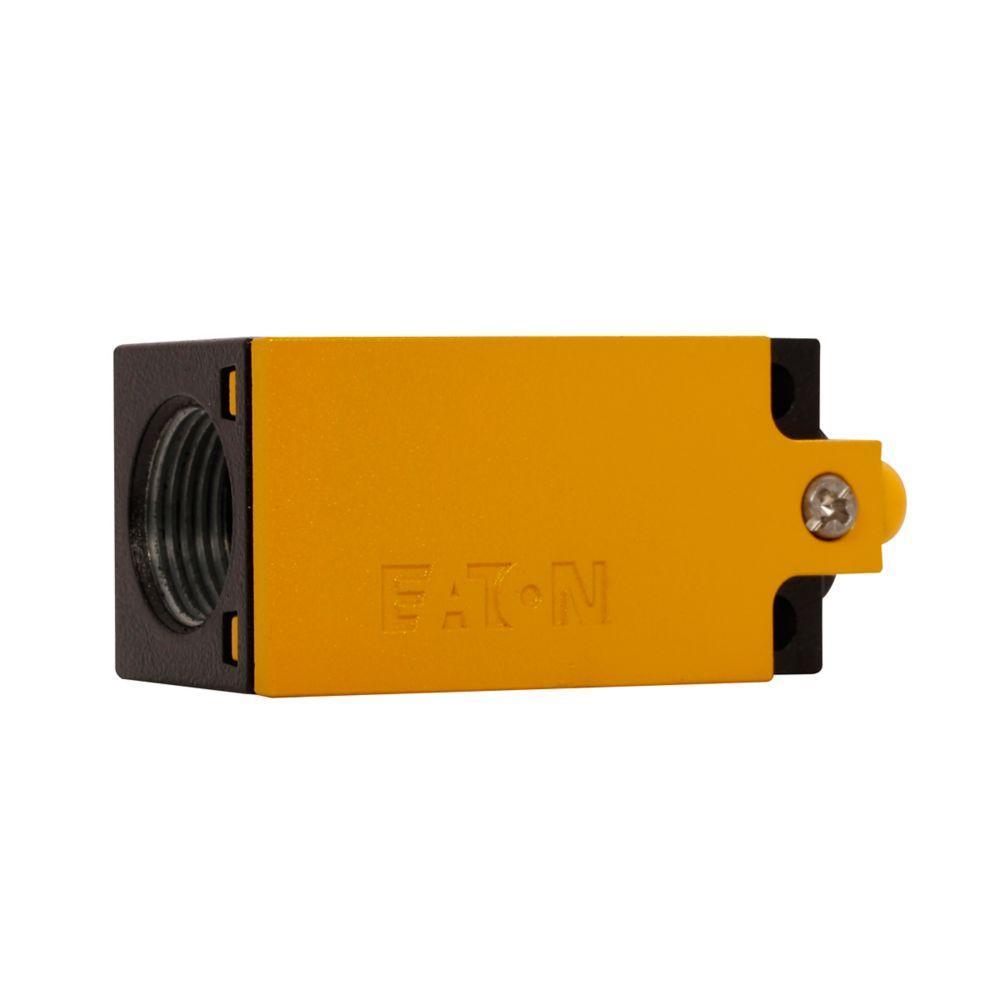

LSM-02 CH MINI DIN SWITCH,METAL,TOP PUSH,CAGE CLAMP,2-N.C.

Mouse over image to zoom, click to enlarge

  • LSM-02 CH MINI DIN SWITCH,METAL,TOP PUSH,CAGE CLAMP,2-N.C.
  • LSM-02 CH MINI DIN SWITCH,METAL,TOP PUSH,CAGE CLAMP,2-N.C.

Description: EATON Limit Switch Body, Safety, 2NC Contact Configuration, 6 A at 240 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure, -13 to 158 deg F, Cage Clamp Connection, For Use With: LS-Titan™ Miniature DIN Limit Switch, Die Cast Zinc, 1.22 in L x 1.32 in W x 2.99 in H Dimensions

Manufacturer PN: LSM-02

UPC:  78668539214

Kendall Electric Inc PN: 3749855

Invoice Description:

LSM-02 CH MINI DIN SWITCH,METAL,TOP PUSH,CAGE CLAMP,2-N.C.


SPEC SHEET

▸ See All in Limit Switch Bodies


How Can We Make This Page Better?

EATON LSM-02 Safety Limit Switch Body With Slow Make Break Positive Opening, 2NC Contact, For Use With LS-Titan™ Miniature DIN Limit Switch, 6 A at 240 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s LS-Titan limit switch line is a complete offering of safety position switches designed for worldwide application. Economical insulated plastic or rugged metal enclosures and modular, plug-in operating heads and bodies make the LS-Titan a flexible switching solution.
EATON Limit Switch Body, Safety, 2NC Contact Configuration, 6 A at 240 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure, -13 to 158 deg F, Cage Clamp Connection, For Use With: LS-Titan™ Miniature DIN Limit Switch, Die Cast Zinc, 1.22 in L x 1.32 in W x 2.99 in H Dimensions

Specifications

 Brand Name EATON
 Connection Type Cage Clamp
 Contact Configuration 2NC
 Contact Rating 6 A at 240 V AC, 3 A at 24 V DC
 Dimensions 1.22 in L x 1.32 in W x 2.99 in H
 Enclosure IP66/67
 Manufacturer Part Number LSM-02
 Material Die Cast Zinc
 PART NUMBER KEYWORDS LSM-02 ; LSM02 ; 10903231 ; 786685392141 ; 78668539214 ; 00786685392141
 Standards/Approvals UL Listed,RoHS Compliant
 Suitable For Use With LS-Titan™ Miniature DIN Limit Switch
 Temperature Rating -13 to 158 deg F
 Type Safety

Resources

 Catalog Page
 Product Data Sheet
