Eaton

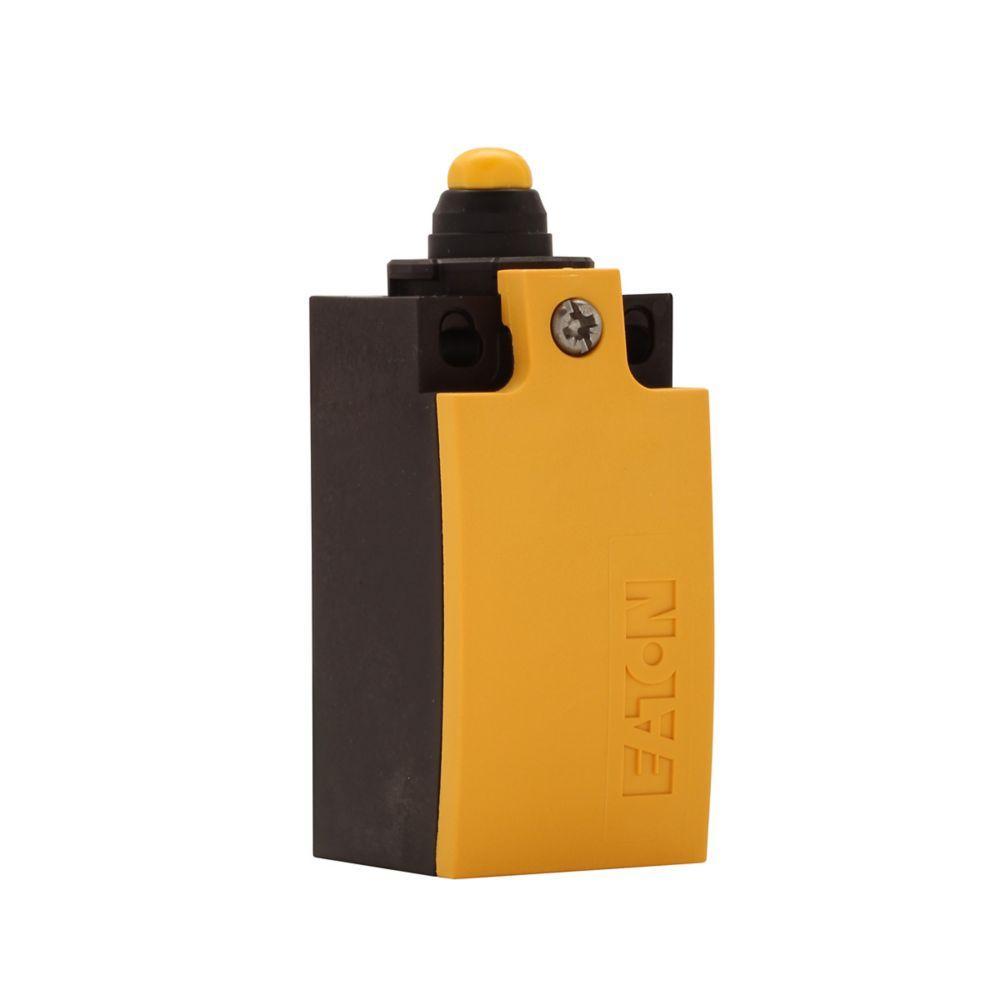

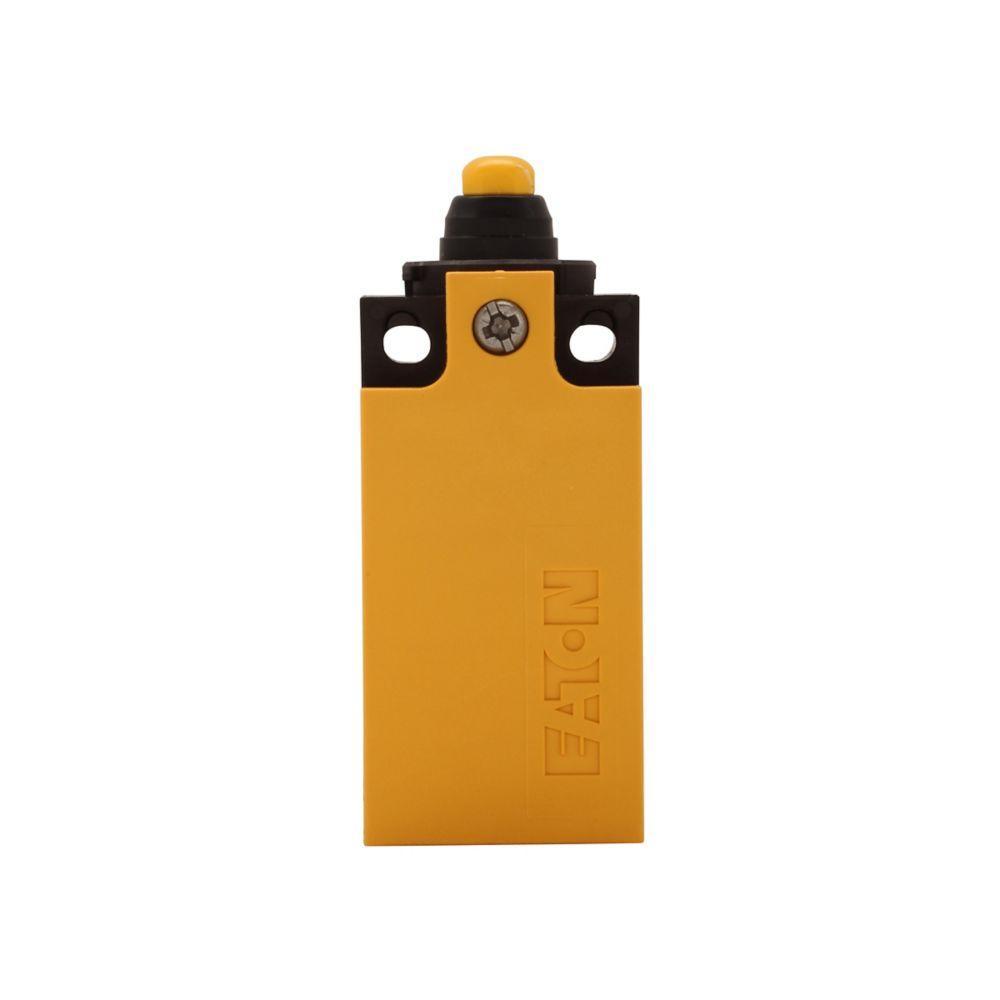

LS-S11S CH MINI DIN,PLASTIC,SNAP ACTION,SCREW TERM, 1-N.O.&1-N.C.

Mouse over image to zoom, click to enlarge

  • LS-S11S CH MINI DIN,PLASTIC,SNAP ACTION,SCREW TERM, 1-N.O.&1-N.C.
  • LS-S11S CH MINI DIN,PLASTIC,SNAP ACTION,SCREW TERM, 1-N.O.&1-N.C.
  • LS-S11S CH MINI DIN,PLASTIC,SNAP ACTION,SCREW TERM, 1-N.O.&1-N.C.

Description: EATON LS-Titan™ Safety Switch Body, 1NO-1NC Contact Configuration, 6 A at 230 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure, -13 to 158 deg F, Screw Connection, For Use With: LS-Titan™ Safety Switch, Plastic, 2.99 in L x 1.22 in W x 0.1 in H Dimensions

Manufacturer PN: LS-S11S

UPC:  78668539248

Kendall Electric Inc PN: 4664449

Invoice Description:

LS-S11S CH MINI DIN,PLASTIC,SNAP ACTION,SCREW TERM, 1-N.O.&1-N.C.


SPEC SHEET

▸ See All in Plunger Actuated Limit Switches


How Can We Make This Page Better?

EATON LS-Titan™ LS-S11S Safety Switch Body, 1NO-1NC Contact, For Use With LS-Titan™ Safety Switch, 6 A at 230 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s LS-Titan limit switch line is a complete offering of safety position switches designed for worldwide application. Economical insulated plastic or rugged metal enclosures and modular, plug-in operating heads and bodies make the LS-Titan a flexible switching solution.
EATON LS-Titan™ Safety Switch Body, 1NO-1NC Contact Configuration, 6 A at 230 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure, -13 to 158 deg F, Screw Connection, For Use With: LS-Titan™ Safety Switch, Plastic, 2.99 in L x 1.22 in W x 0.1 in H Dimensions

Specifications

 Application Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type Screw
 Contact Configuration 1NO-1NC
 Contact Rating 6 A at 230 V AC, 3 A at 24 V DC
 Dimensions 2.99 in L x 1.22 in W x 0.1 in H
 Enclosure IP66/67
 Manufacturer Part Number LS-S11S
 Material Plastic
 PART NUMBER KEYWORDS LS-S11S ; LSS11S ; 10903387 ; 786685392486 ; 78668539248 ; 00786685392486
 Standards/Approvals UL Listed,RoHS Compliant
 Suitable For Use With LS-Titan™ Safety Switch
 Temperature Rating -13 to 158 deg F

Features

▪ +/-0.02 mm accuracy
▪ 99.97 cm/s operating speed
▪ Plastic enclosure material

Resources

 Catalog Page
 Product Data Sheet
