Eaton

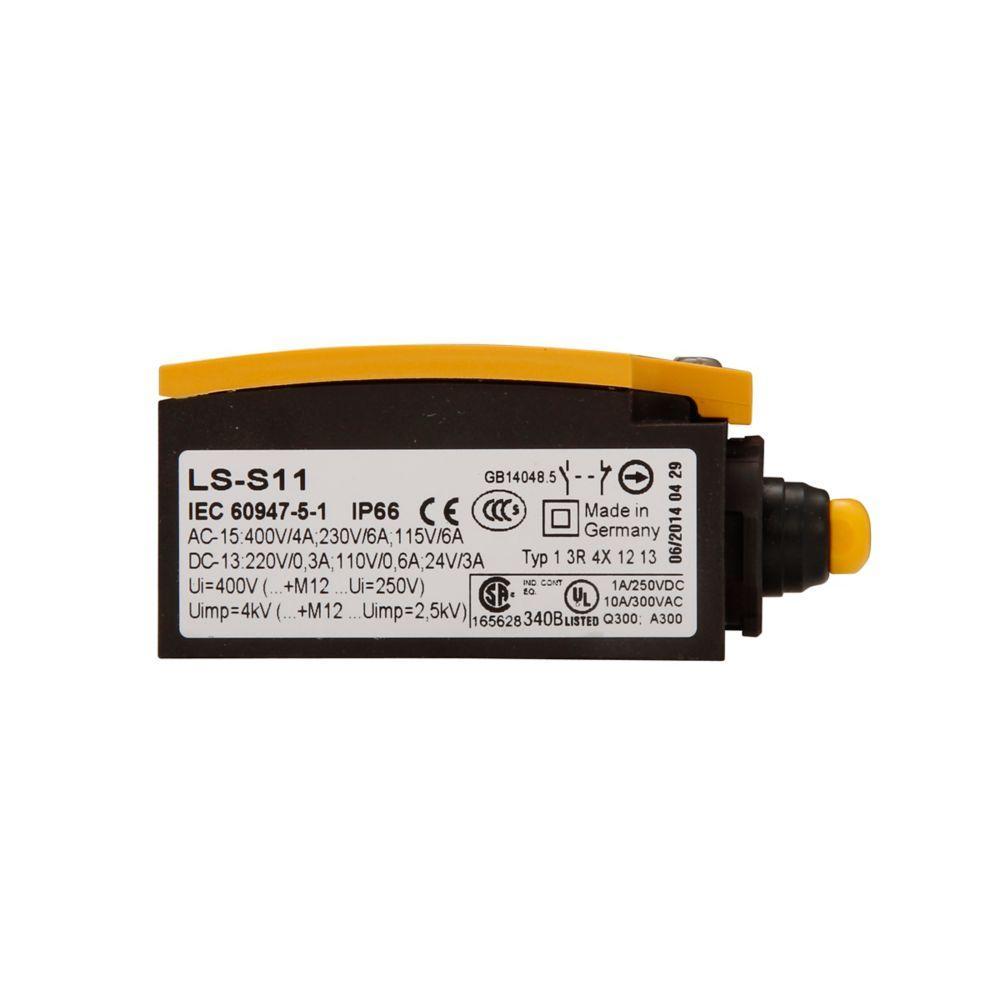

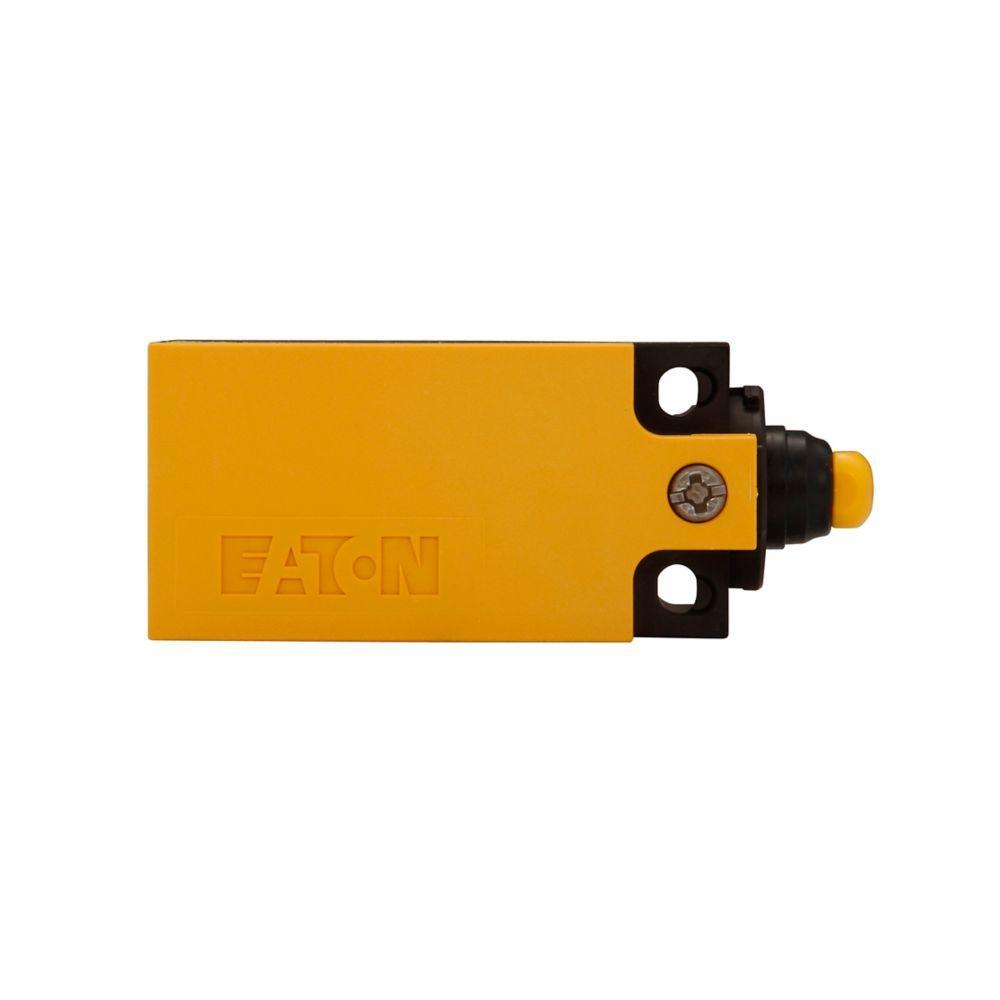

LS-S11 CH MINI DIN SWITCH,PLASTIC,B BEFORE M,SCREWTERM,1-N.O.&1-N.C

Mouse over image to zoom, click to enlarge

  • LS-S11 CH MINI DIN SWITCH,PLASTIC,B BEFORE M,SCREWTERM,1-N.O.&1-N.C
  • LS-S11 CH MINI DIN SWITCH,PLASTIC,B BEFORE M,SCREWTERM,1-N.O.&1-N.C
  • LS-S11 CH MINI DIN SWITCH,PLASTIC,B BEFORE M,SCREWTERM,1-N.O.&1-N.C

Description: EATON Limit Switch Body, 1NO-1NC Contact Configuration, 6 A at 230 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure, -13 to 158 deg F, Screw Terminal Connection, For Use With: LS-Titan™ Miniature DIN Limit Switch, Plastic, 2.99 in L x 1.22 in W x 1.32 in H Dimensions

Manufacturer PN: LS-S11

UPC:  78668552054

Kendall Electric Inc PN: 3654776

Invoice Description:

LS-S11 CH MINI DIN SWITCH,PLASTIC,B BEFORE M,SCREWTERM,1-N.O.&1-N.C


SPEC SHEET

▸ See All in Limit Switch Bodies


How Can We Make This Page Better?

EATON LS-S11 Limit Switch Body With Positive Opening Contact, 1NO-1NC Contact, For Use With LS-Titan™ Miniature DIN Limit Switch, 6 A at 230 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s LS-Titan limit switch line is a complete offering of safety position switches designed for worldwide application. Economical insulated plastic or rugged metal enclosures and modular, plug-in operating heads and bodies make the LS-Titan a flexible switching solution.
EATON Limit Switch Body, 1NO-1NC Contact Configuration, 6 A at 230 V AC, 3 A at 24 V DC Contact, IP66/67 Enclosure, -13 to 158 deg F, Screw Terminal Connection, For Use With: LS-Titan™ Miniature DIN Limit Switch, Plastic, 2.99 in L x 1.22 in W x 1.32 in H Dimensions

Specifications

 Brand Name EATON
 Connection Type Screw Terminal
 Contact Configuration 1NO-1NC
 Contact Rating 6 A at 230 V AC, 3 A at 24 V DC
 Dimensions 2.99 in L x 1.22 in W x 1.32 in H
 Enclosure IP66/67
 Manufacturer Part Number LS-S11
 Material Plastic
 PART NUMBER KEYWORDS LS-S11 ; LSS11 ; 12072070 ; 786685520544 ; 78668552054 ; 00786685520544
 Standards/Approvals CSA Certified,UL Listed,RoHS Compliant
 Suitable For Use With LS-Titan™ Miniature DIN Limit Switch
 Temperature Rating -13 to 158 deg F

Resources

 Catalog Page
 Product Data Sheet
