Eaton
LPN-RK-500SPI BUSS INDICATING LPN-RK 500SP 05171262685

Mouse over image to zoom, click to enlarge

  • LPN-RK-500SPI BUSS INDICATING LPN-RK 500SP 05171262685
  • LPN-RK-500SPI BUSS INDICATING LPN-RK 500SP 05171262685
  • LPN-RK-500SPI BUSS INDICATING LPN-RK 500SP 05171262685
  • LPN-RK-500SPI BUSS INDICATING LPN-RK 500SP 05171262685

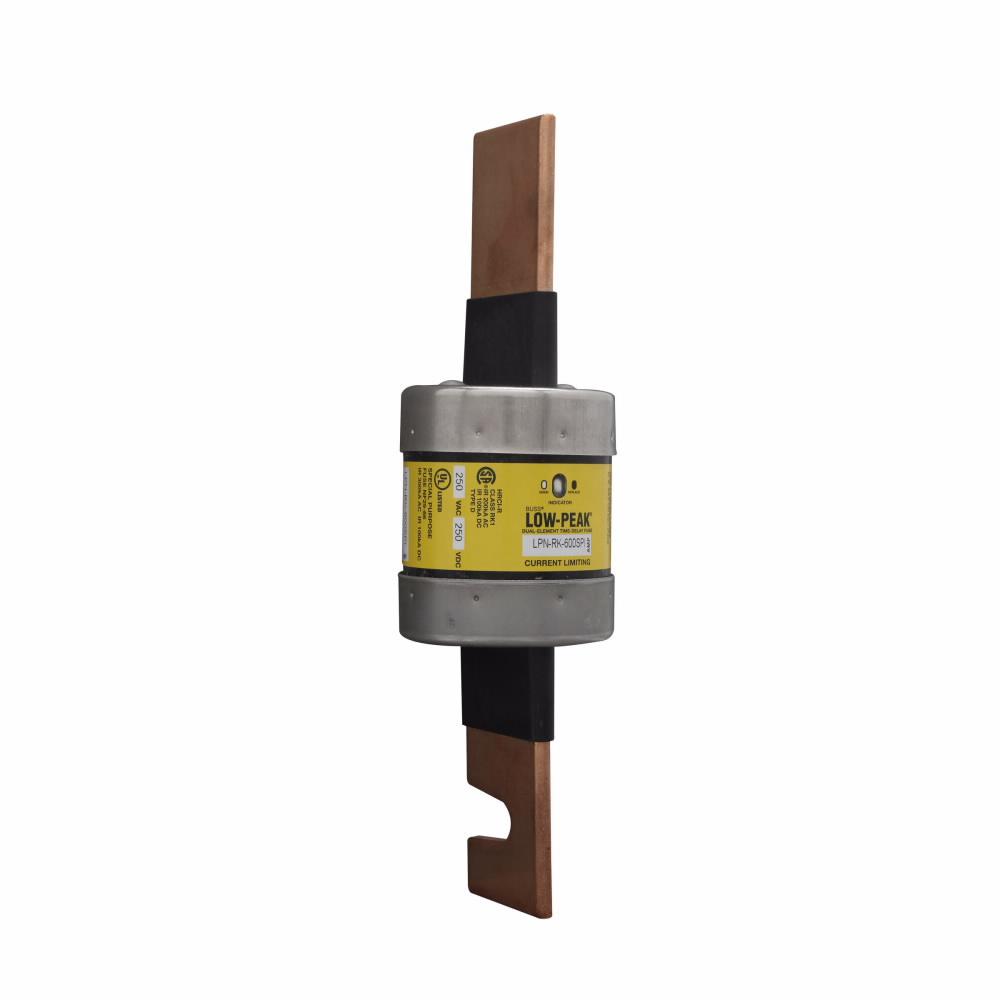

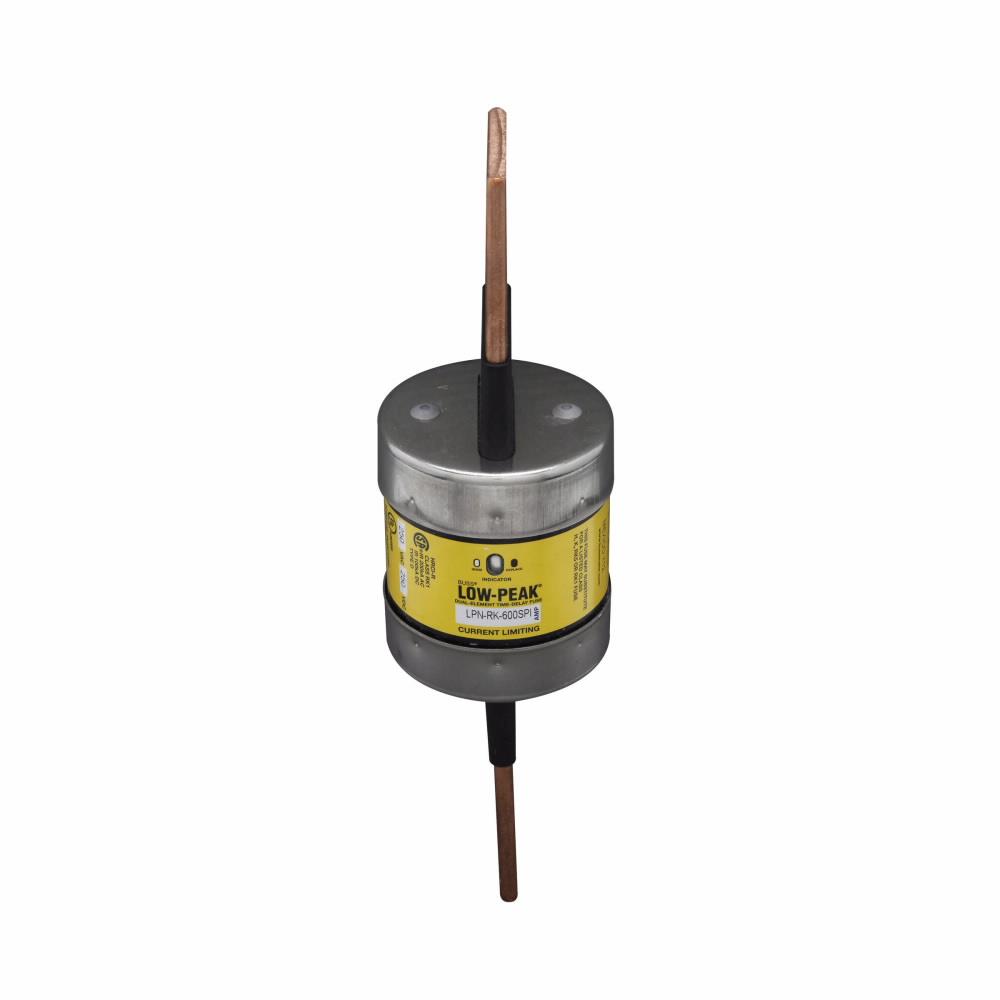

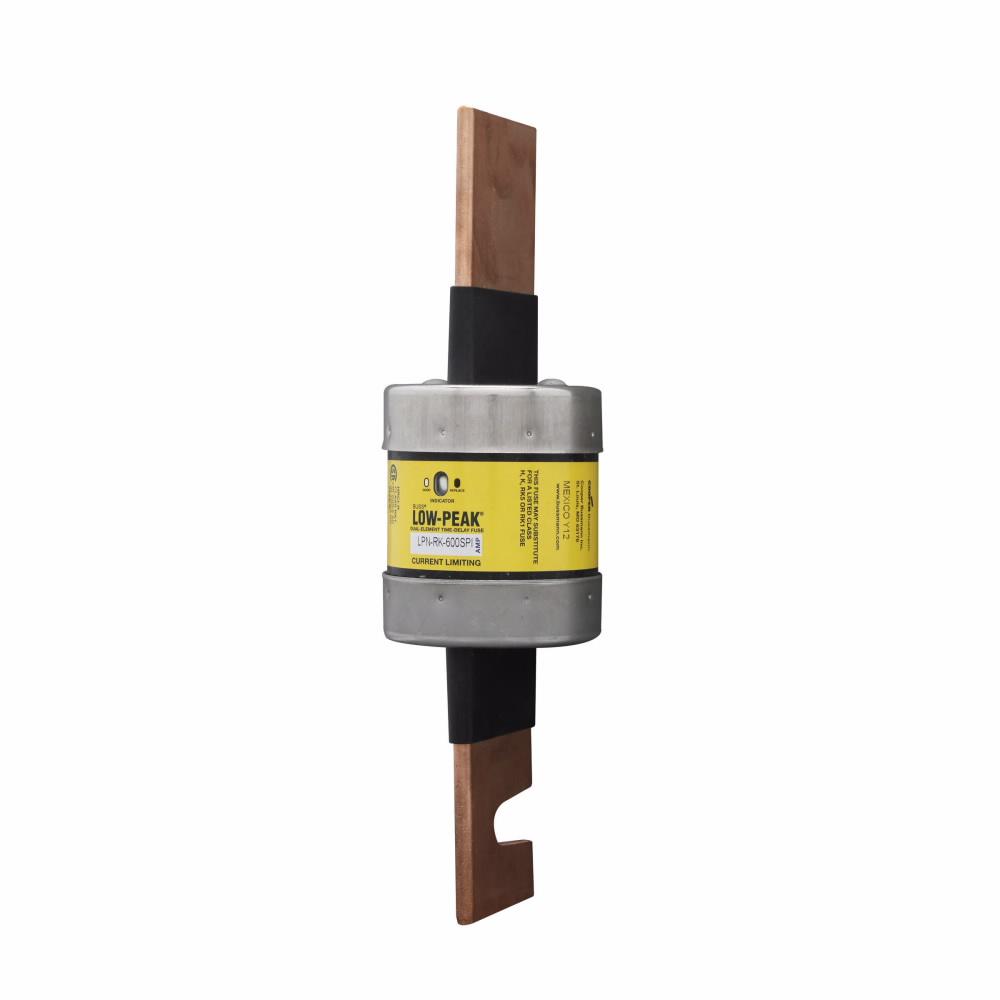

Description: Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 500 A, 250 V AC/DC, 300/100 kAIC Interrupt, Class: RK1, Dual Element, Melamine

Manufacturer PN: LPN-RK-500SPI

UPC:  05171262685

Kendall Electric Inc PN: 2465908

Invoice Description:

LPN-RK-500SPI BUSS INDICATING LPN-RK 500SP 05171262685


SPEC SHEET

▸ See All in Class RK1 Fuses


How Can We Make This Page Better?

Bussmann Low-Peak™ LPN-RK-500SPI Current Limiting Time Delay Fuse, 500 A, 250 V AC/DC, 300/100 kAIC Interrupt, RK1 Class

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Indicating, Rejection/Non-Rejection: Rejection, 500 A, 250 V AC/DC, 300/100 kAIC Interrupt, Class: RK1, Dual Element, Melamine

Specifications

 Amperage Rating 500 A
 Application Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards and Power Panelboards Applications
 Brand Name Bussmann
 Class RK1
 Element Dual
 Indicating Non Indicating Indicating
 Manufacturer Part Number LPN-RK-500SPI
 Material Melamine
 PART NUMBER KEYWORDS LPN-RK-500SPI ; LPNRK500SPI ; 7630848 ; 051712626859 ; 51712626859 ; 05171262685 ; 00051712626859
 Rejection Non Rejection Rejection
 Series LPN-RK
 Standards/Approvals CE Marked
 Type Current Limiting Time Delay
 Video Links
 Voltage Rating 250 V AC/DC

Features

▪ Electrically isolated end caps for additional safety

Resources

 Catalog Page
 Product Data Sheet
