Schneider Electric
  • LP5K0901BW3 SQD REVERSING CONTACTOR
  • LP5K0901BW3 SQD REVERSING CONTACTOR

Description: Schneider Electric Square D™ TeSys™ K IEC Contactor, K-Line Mechanical, Series: LP5K, 690 V AC, 24 V DC Coil, 9/16/20 A Maximum Load Current, 1.8 W Coil, 3 Pole, 50/60 Hz Frequency, Reversing Contact, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20/50 A at 600 VAC, 10/50 A at 600 VAC Contact, Screw Clamp Connection, 57/58/90 mm Size, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -25 to 50 deg C Operating, Rail/Surface Mounting, 90 mm W x 57 mm D x 58 mm H Dimensions

Manufacturer PN: LP5K0901BW3

UPC:  38911050165

Kendall Electric Inc PN: 4000032

Invoice Description:

LP5K0901BW3 SQD REVERSING CONTACTOR


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Square D™ TeSys™ K LP5K0901BW3 K-Line Mechanical IEC Contactor, 690 V AC, 24 V DC V Coil, 9/16/20 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Schneider Electric Square D™ TeSys™ K IEC Contactor, K-Line Mechanical, Series: LP5K, 690 V AC, 24 V DC Coil, 9/16/20 A Maximum Load Current, 1.8 W Coil, 3 Pole, 50/60 Hz Frequency, Reversing Contact, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20/50 A at 600 VAC, 10/50 A at 600 VAC Contact, Screw Clamp Connection, 57/58/90 mm Size, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -25 to 50 deg C Operating, Rail/Surface Mounting, 90 mm W x 57 mm D x 58 mm H Dimensions

Specifications

 Application For motor control and resistive loads
 Brand Name Square D
 Coil Power Rating 1.8 W
 Coil Voltage 690 V AC, 24 V DC
 Connection Type Screw Clamp
 Contact Configuration 3NO
 Contact Rating 20/50 A at 600 V AC, 10/50 A at 600 V AC
 Contact Type Reversing

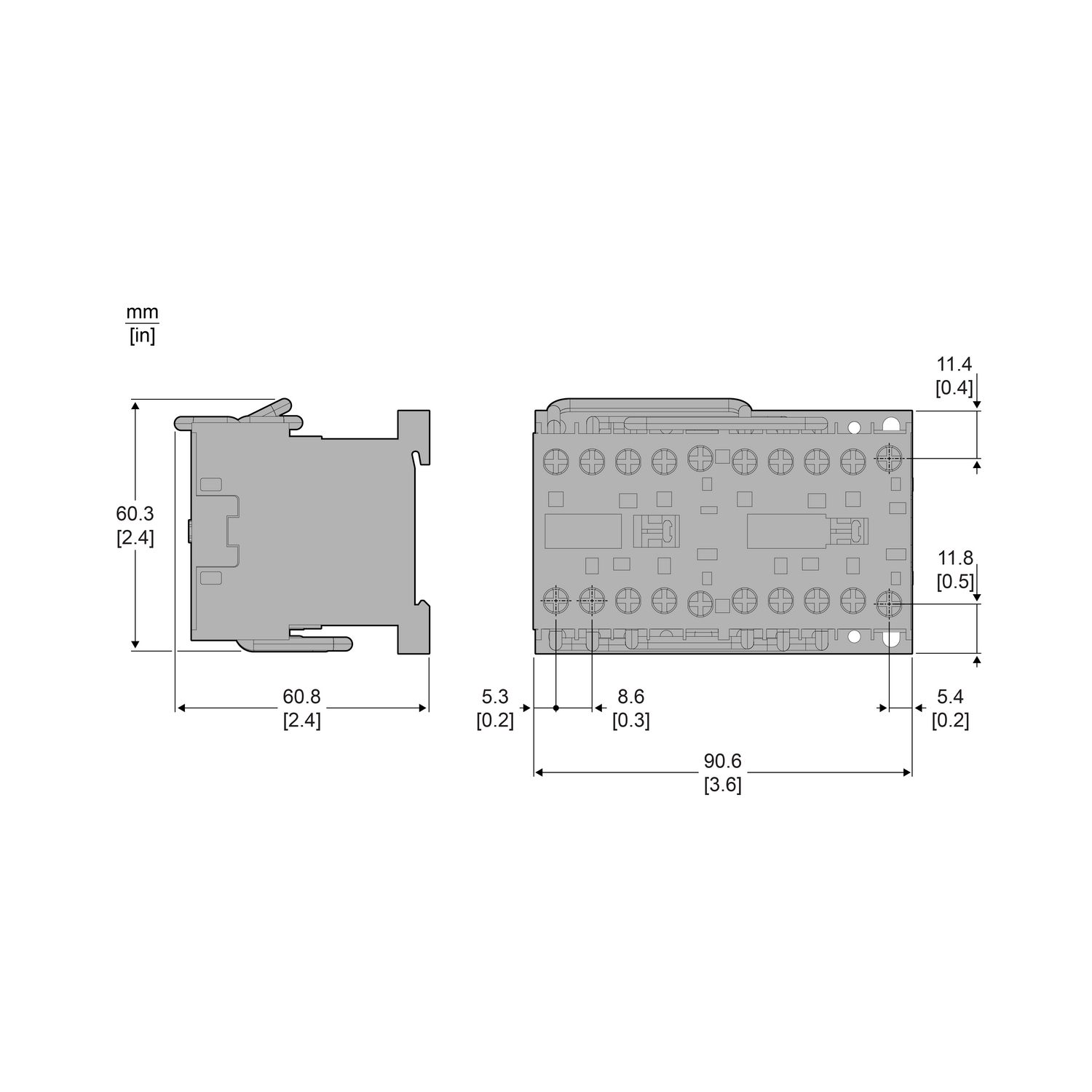

 Dimensions 90 mm W x 57 mm D x 58 mm H
 Enclosure IP20
 Frequency Rating 50/60 Hz
 Manufacturer Part Number LP5K0901BW3
 Maximum Load Current 9/16/20 A
 Mounting Type Rail/Surface
 Number of Auxiliary Contacts 1NC
 Number of Poles 3
 Operating Cycles 3600 cycles/hr
 Operating Temperature -25 to 50 deg C
 PART NUMBER KEYWORDS LP5K0901BW3 ; 8118919 ; 785901641988 ; 78590164198 ; 03389110501650 ; 3389110501650
 Series LP5K
 Size 57/58/90 mm
 Standards/Approvals BS 5424|CE Certified|CSA File No. LR43364 Class 3211 04|ECCN EAR99|IEC 60947/VDE 0660|NF C 63-110|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E164862 NLDX2
 Terminal Type Screw Clamp
 Type K-Line Mechanical

Features

▪ One of the smallest contactor offerings in the market
