  • LP4K0910BW3 SQD CONTACTOR 600VAC
  • LP4K0910BW3 SQD CONTACTOR 600VAC

Description: Schneider Electric Square D™ TeSys™ K IEC Contactor, Series: LP4K, 690 VAC Coil, 9/16/20 A Maximum Load Current, 1.8 W Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, 20/50 A at 600 V AC, 10/50 A at 600 V AC Contact, Screw Clamp Connection, 45/57/58 mm Size, Screw Clamp Terminal, Open Enclosure, 3600 cycles/hr Operating Cycles, -25 to 50 deg C Operating, Rail/Surface Mounting, 45 mm W x 57 mm D x 58 mm H Dimensions

Manufacturer PN: LP4K0910BW3

UPC:  38911042858

Kendall Electric Inc PN: 4000031

Invoice Description:

LP4K0910BW3 SQD CONTACTOR 600VAC


SPEC SHEET

▸ See All in NEMA & IEC Contactors


How Can We Make This Page Better?

Schneider Electric Square D™ TeSys™ K LP4K0910BW3 IEC Contactor, 690 VAC V Coil, 9/16/20 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Schneider Electric Square D™ TeSys™ K IEC Contactor, Series: LP4K, 690 VAC Coil, 9/16/20 A Maximum Load Current, 1.8 W Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, 20/50 A at 600 V AC, 10/50 A at 600 V AC Contact, Screw Clamp Connection, 45/57/58 mm Size, Screw Clamp Terminal, Open Enclosure, 3600 cycles/hr Operating Cycles, -25 to 50 deg C Operating, Rail/Surface Mounting, 45 mm W x 57 mm D x 58 mm H Dimensions

Specifications

 Application Industry, Infrastructure, Building, Resistive Load and Motor Control Applications
 Brand Name Square D
 Coil Power Rating 1.8 W
 Coil Voltage 690 V AC
 Connection Type Screw Clamp
 Contact Configuration 3NO
 Contact Rating 20/50 A at 600 V AC, 10/50 A at 600 V AC

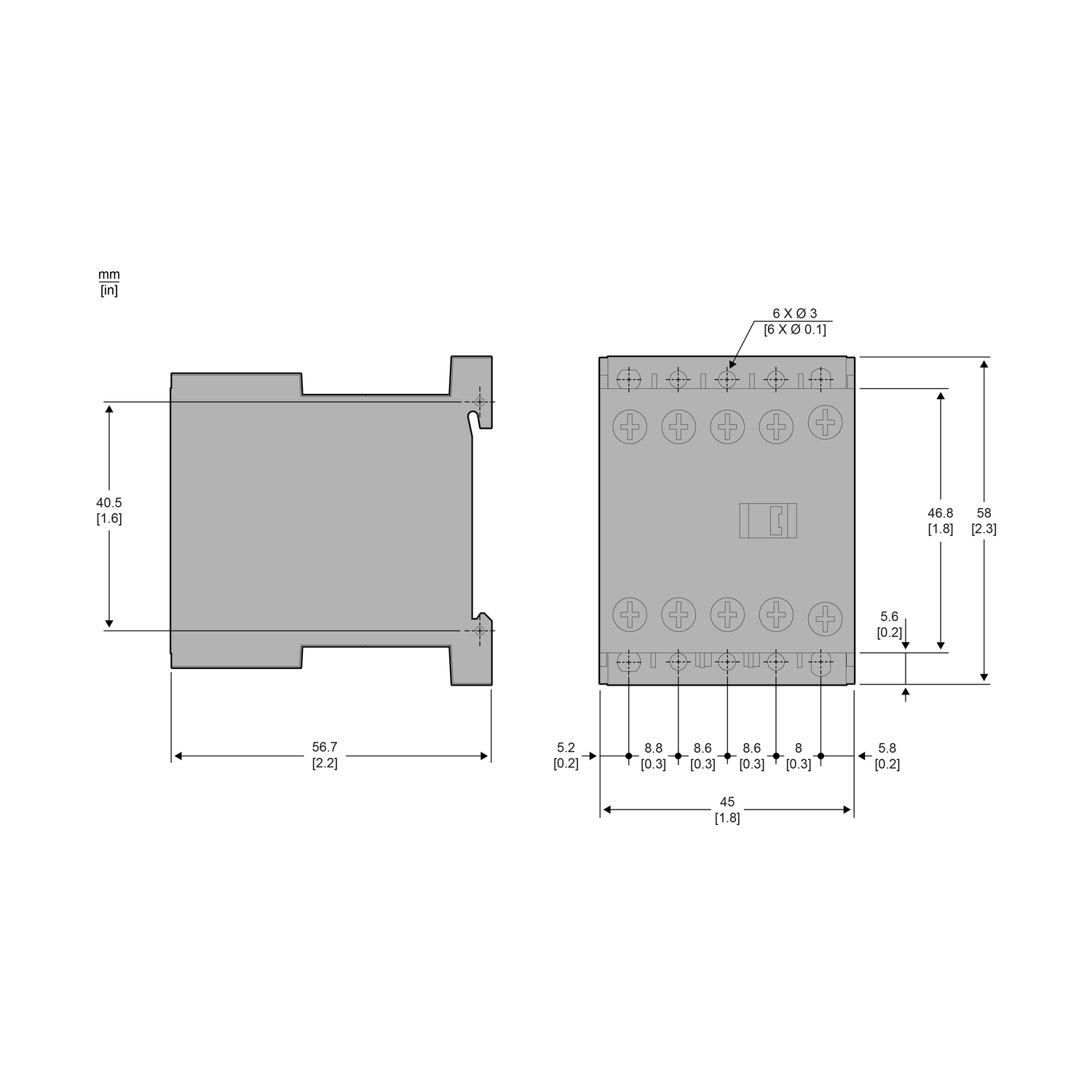

 Dimensions 45 mm W x 57 mm D x 58 mm H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number LP4K0910BW3
 Maximum Load Current 9/16/20 A
 Mounting Type Rail/Surface
 Number of Auxiliary Contacts 1NO
 Number of Poles 3
 Operating Cycles 3600 cycles/hr
 Operating Temperature -25 to 50 deg C
 PART NUMBER KEYWORDS LP4K0910BW3 ; 8086512 ; 785901913689 ; 78590191368 ; 03389110428582 ; 3389110428582
 Series LP4K
 Size 45/57/58 mm
 Standards/Approvals BS 5424|CE Certified|CSA Certified|Green Premium|IEC 60947|NF C 63-110|NF F 16-101|NF F 16-102|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov|REACH Compliant|RoHS Compliant|UL 94-V-1 Flammability Rating|UL Listed|VDE 0660|WEEE Compliant
 Terminal Type Screw Clamp

Features

▪ One of the smallest contactor offerings in the market
▪ Designed for simple control systems
