Fluke

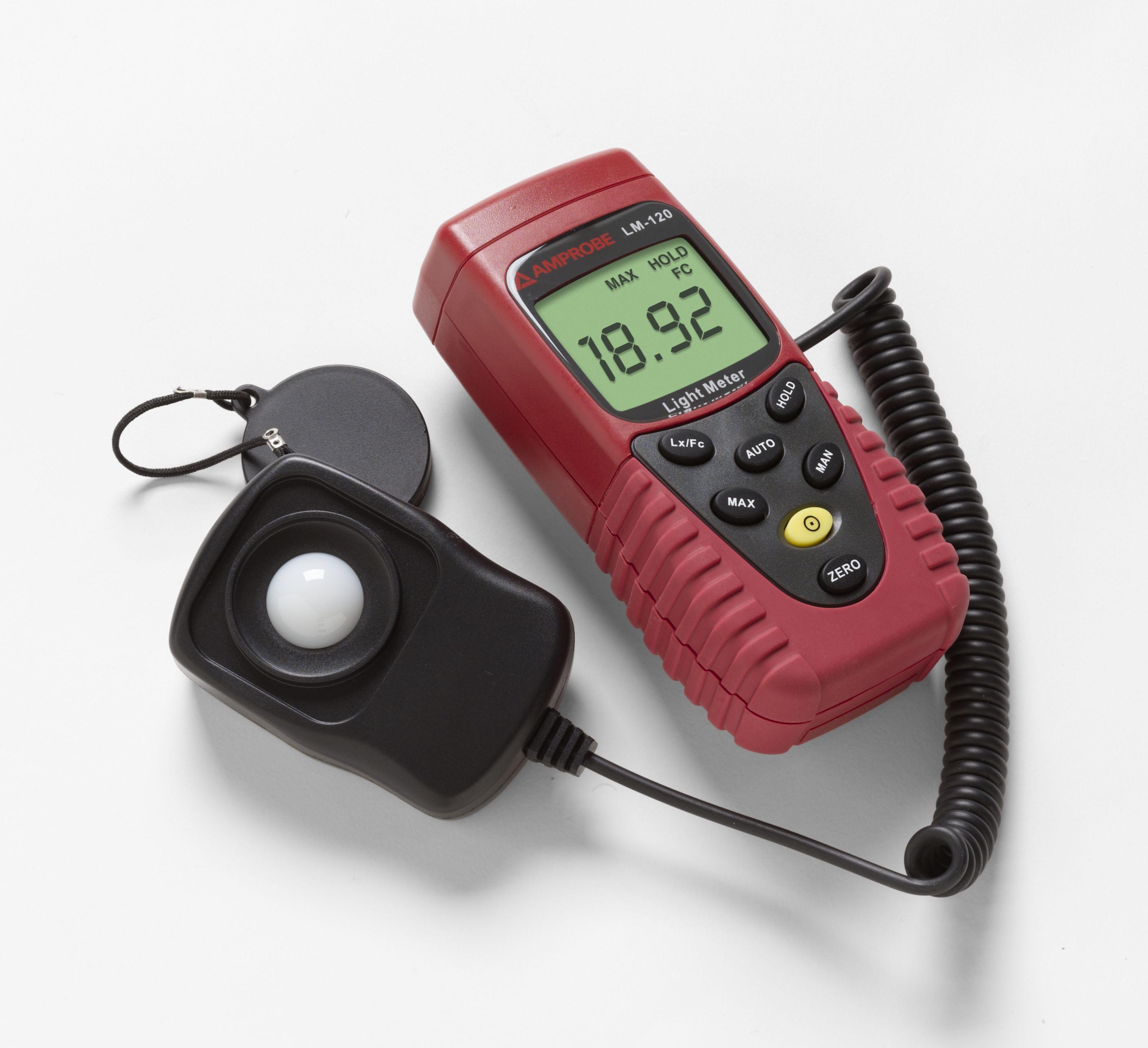

LM-120 LIGHT METER ( FLUKE)

Mouse over image to zoom, click to enlarge

  • LM-120 LIGHT METER ( FLUKE)
  • LM-120 LIGHT METER ( FLUKE)

Description: Amprobe® Light Meter, Auto/Manual Ranging, 20 to 200000 lux/20 to 20000 fc Measuring, 0.01 fc/lux Resolution, +/-3% Accuracy, 3-3/4 Digits LCD Digital Display, Data Hold: Yes, 6 min Auto Power Off, 9V Battery

Manufacturer PN: LM-120

Kendall Electric Inc PN: 4397501

Invoice Description:

LM-120 LIGHT METER ( FLUKE)


SPEC SHEET

▸ See All in Light Meters


How Can We Make This Page Better?

Amprobe® LM-120 Auto/Manual Ranging Light Meter, 20 to 200000 lux/20 to 20000 fc Measuring, 0.01 fc/lux Resolution, +/-3% Accuracy, 3-3/4 Digits LCD Digital Display, 9V Battery

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Amprobe® LM-120 light meter measures the visible light from fluorescent, metal halide, high pressure sodium or incandescent sources. It is a portable, easy-to-use digital light meter designed for simple one hand operation reading in Lumen (lux) or footcandle (fc) units. The LM-120 measures a wide range of light up to 20000 fc or 200000 lux with an accurate, high resolution of 0.01 fc/lux. This unit is auto-ranging plus manual ranging with ability to zero out the reading before taking a measurement. Use the LM-120 light meter to measure the illumination level in the interior and to switch off or reduce or increase the output level of lighting fixtures. Reduce the energy burden of the building by significantly increasing the efficiency of its lighting system. One lux is the illumination from a one candela lamp perpendicular to a surface one meter squared at a distance of one meter. One fc is the illumination from a one candela lamp perpendicular to a surface one foot squared at a distance of 1 ft.
Amprobe® Light Meter, Auto/Manual Ranging, 20 to 200000 lux/20 to 20000 fc Measuring, 0.01 fc/lux Resolution, +/-3% Accuracy, 3-3/4 Digits LCD Digital Display, Data Hold: Yes, 6 min Auto Power Off, 9V Battery

Specifications

 Accuracy +/-3%
 Application Environmental Applications
 Auto Power Off 6 min
 Battery Type 9V
 Brand Name Fluke
 Data Hold Yes
 Includes Battery (Installed), Carrying Case and User Manual
 Manufacturer Part Number LM-120
 Measuring Range 20 to 200000 lux/20 to 20000 fc
 Standards/Approvals RoHS Compliant|CE Marked
 Type Auto/Manual Ranging

Features

▪ Dual scale meter measures visible light from fluorescent, metal halide, high pressure sodium and incandescent sources up to 200000 Lumens/sq-m (lux) or 20000 fc
▪ Measure in lux or foot-candles, front panel switchable
▪ Silicon photodiode sensor and filter
▪ Data hold to freeze reading on digital display
▪ Maximum/minimum ability to show high and low readings
▪ Auto ranging plus manual range
▪ Zero function to null display before a reading
▪ Auto power off to save battery life
▪ Includes protective sensor cap
▪ Large, 3-1/2 in digit display

Resources

 Product Data Sheet
