Eaton

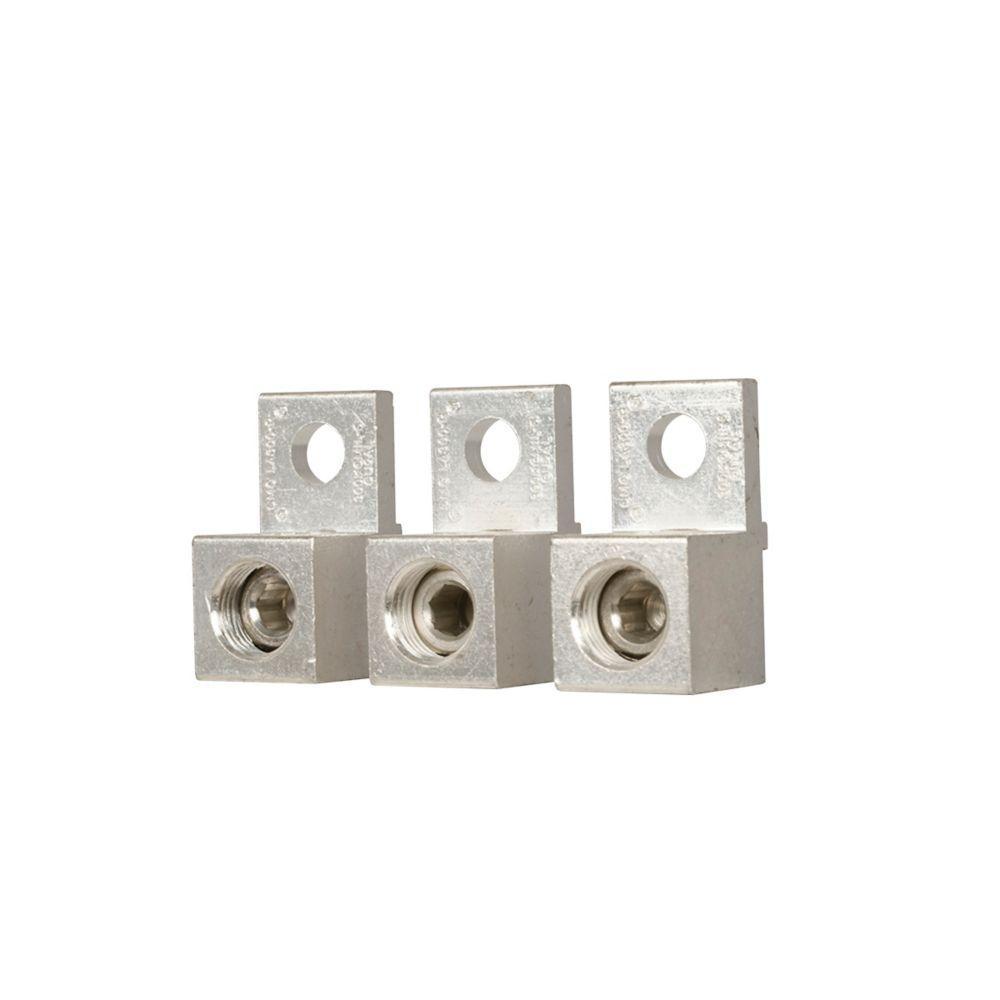

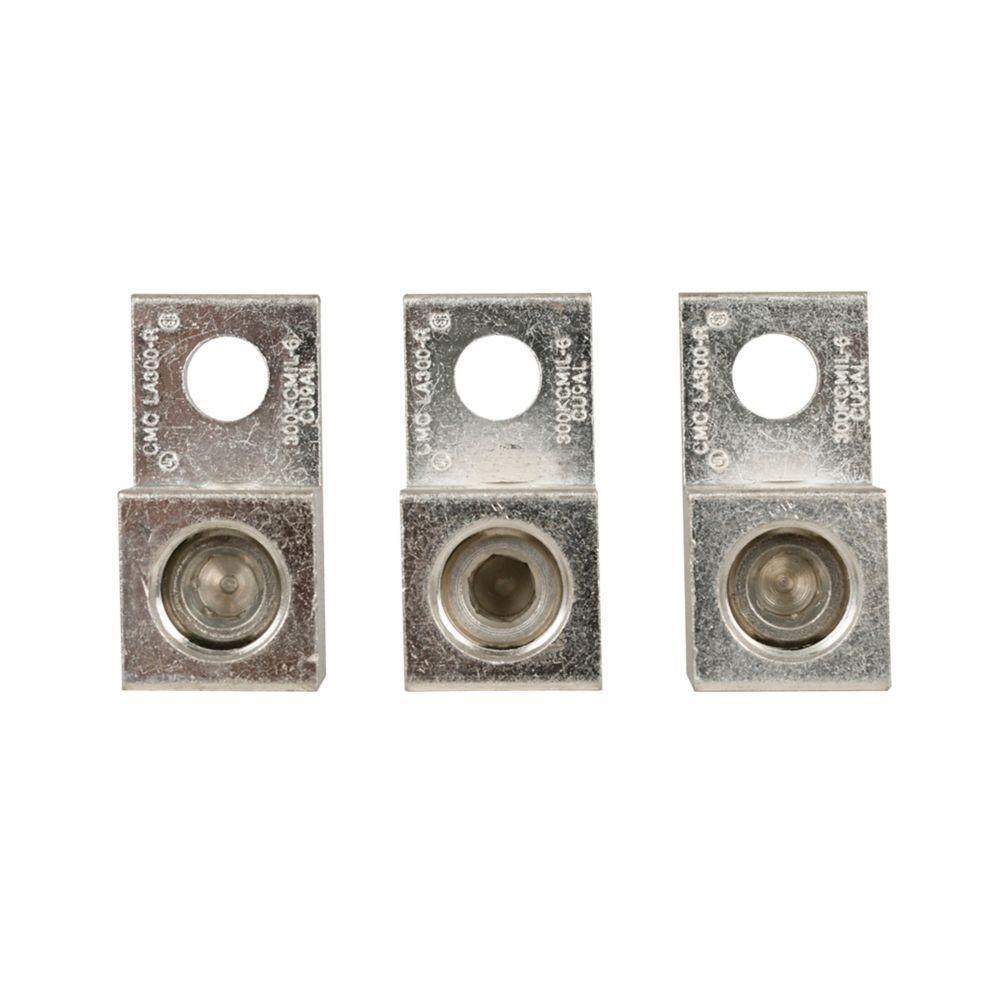

LK3R9DL CH LUG KIT, 3 LUGS, USE W/ R9 D&L-FRAME

Mouse over image to zoom, click to enlarge

  • LK3R9DL CH LUG KIT, 3 LUGS, USE W/ R9 D&L-FRAME
  • LK3R9DL CH LUG KIT, 3 LUGS, USE W/ R9 D&L-FRAME
  • LK3R9DL CH LUG KIT, 3 LUGS, USE W/ R9 D&L-FRAME

Description: EATON Line and Load Terminal Lug, Series: R9, 100 to 200 A, 3 Pole, 1.52 in L x 1 in W x 1.2 in H Dimensions

Manufacturer PN: LK3R9DL

UPC:  78668540869

Kendall Electric Inc PN: 2812822

Invoice Description:

LK3R9DL CH LUG KIT, 3 LUGS, USE W/ R9 D&L-FRAME


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

EATON LK3R9DL R9 Line and Load Terminal Lug, 100 to 200 A, 3 Poles

Log In for Pricing and Availability




Description

Eaton's full-range of rotary disconnects offers a compact, economical, and high-quality choice for switching and isolation spanning a range from 16A - 1200A. The R5 Series of switches are UL 508 listed devices, suitable for use as motor disconnects. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance, or anywhere a local means of disconnect is needed or required.
EATON Line and Load Terminal Lug, Series: R9, 100 to 200 A, 3 Pole, 1.52 in L x 1 in W x 1.2 in H Dimensions

Specifications

 Amperage Rating 100 to 200 A
 Application R9 Series Rotary Disconnects and Power Distribution Applications
 Brand Name EATON
 Dimensions 1.52 in L x 1 in W x 1.2 in H
 Manufacturer Part Number LK3R9DL
 Number of Poles 3
 Series R9
 Standards/Approvals Contact Manufacturer
 Video Links

Features

▪ Connection of copper cables on to the terminals (no spade lugs)
▪ Each kit includes lugs for line or load side
▪ 3 lugs, copper aluminum cable
