Acuity Brands

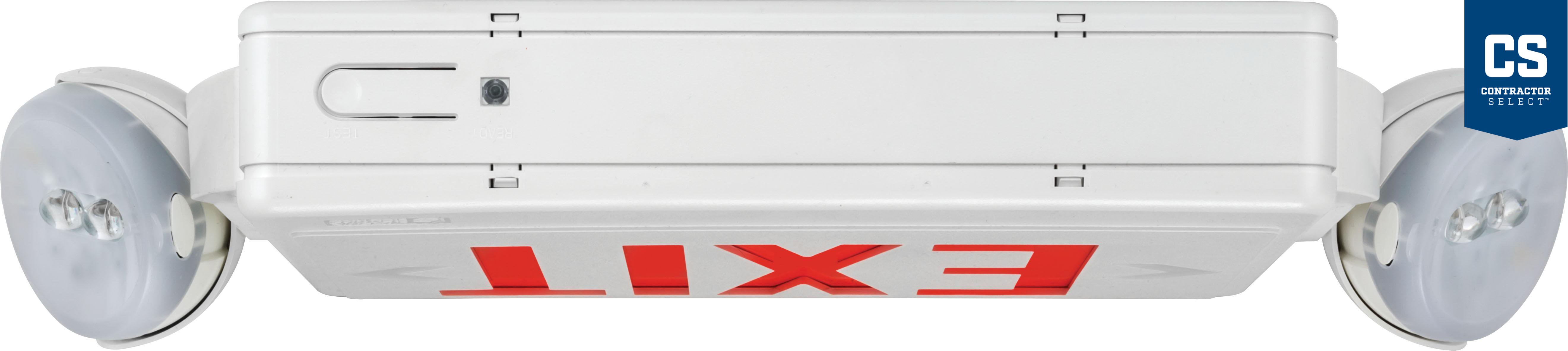

LHQM-LED-R-M6 LITHONIA WHITE THERMOPLASTIC, LED EXIT/ ADJUSTABLE LED 2 HEADED UNIT COMBO, SINGLE STENCIL FACE, WITH EXTRA FACE PLATE, RED LETTERS, NI-CAD BATTERY, DAMP LOCATION (CI# 186HU9)

Mouse over image to zoom, click to enlarge

  • LHQM-LED-R-M6 LITHONIA WHITE THERMOPLASTIC, LED EXIT/ ADJUSTABLE LED 2 HEADED UNIT COMBO, SINGLE STENCIL FACE, WITH EXTRA FACE PLATE, RED LETTERS, NI-CAD BATTERY, DAMP LOCATION (CI# 186HU9)
  • LHQM-LED-R-M6 LITHONIA WHITE THERMOPLASTIC, LED EXIT/ ADJUSTABLE LED 2 HEADED UNIT COMBO, SINGLE STENCIL FACE, WITH EXTRA FACE PLATE, RED LETTERS, NI-CAD BATTERY, DAMP LOCATION (CI# 186HU9)
  • LHQM-LED-R-M6 LITHONIA WHITE THERMOPLASTIC, LED EXIT/ ADJUSTABLE LED 2 HEADED UNIT COMBO, SINGLE STENCIL FACE, WITH EXTRA FACE PLATE, RED LETTERS, NI-CAD BATTERY, DAMP LOCATION (CI# 186HU9)
  • LHQM-LED-R-M6 LITHONIA WHITE THERMOPLASTIC, LED EXIT/ ADJUSTABLE LED 2 HEADED UNIT COMBO, SINGLE STENCIL FACE, WITH EXTRA FACE PLATE, RED LETTERS, NI-CAD BATTERY, DAMP LOCATION (CI# 186HU9)

Description: Lithonia Lighting® QUANTUM® Emergency Exit Unit Combo, Stencil Face, Series: LHQM, 120/277 VAC, 4.3 W Fixture, 0.03/0.05 A, LED Lamp, 1.5 W Lamp, 2 Lamps, 2 Heads, 10 years Average Life, Legend: EXIT, Red Legend, 6 in H Legend, Surface Mounting, Ni-Cd Battery Power Source, Thermoplastic Housing Material, White Housing Finish, 8 in H x 19-1/4 in W x 4-3/4 in D Dimensions

Manufacturer PN: LHQMLEDRM6

UPC:  74597625443

Kendall Electric Inc PN: 2807094

Invoice Description:

LHQM-LED-R-M6 LITHONIA WHITE THERMOPLASTIC, LED EXIT/ ADJUSTABLE LED 2 HEADED UNIT COMBO, SINGLE STENCIL FACE, WITH EXTRA FACE PLATE, RED LETTERS, NI-CAD BATTERY, DAMP LOCATION (CI# 186HU9)


SPEC SHEET

▸ See All in Combo Lighting Unit & Exits


How Can We Make This Page Better?

Lithonia Lighting® QUANTUM® LHQM LED R M6 Stencil Face Emergency Exit Unit Combo, LED Lamp, 4.3 W Fixture, 120/277 VAC, White Housing, EXIT Legend

Log In for Pricing and Availability




Description

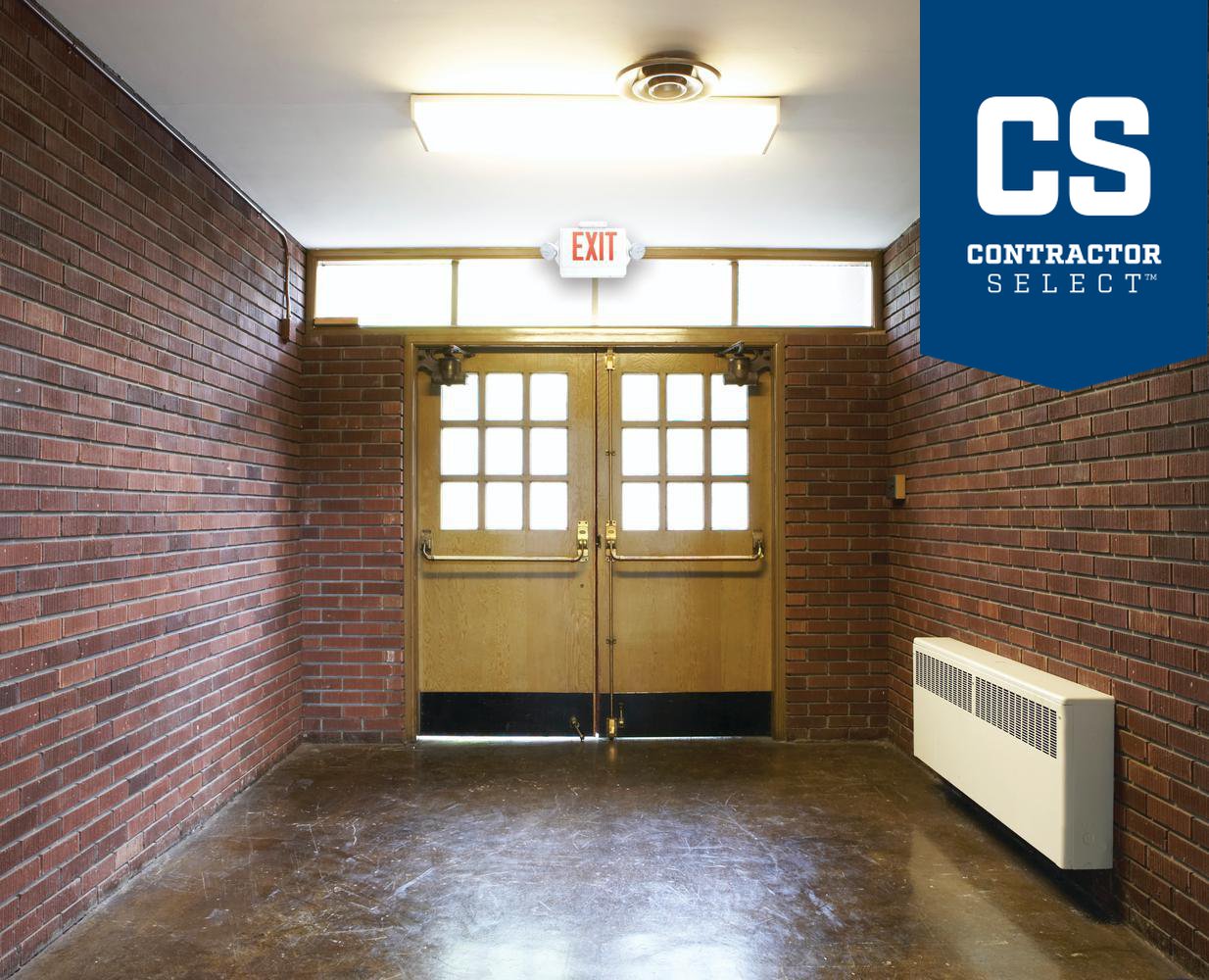

The Quantum Exit-Unit Combo from Lithonia Lighting has a streamlined design and works perfectly in above-the-door applications. The innovative, snap-together design allows for installation in less than three minutes. Impact and corrosion-resistant, this tough exit combo is ideal for any commercial applications that require both an exit sign and lighting unit.
Lithonia Lighting® QUANTUM® Emergency Exit Unit Combo, Stencil Face, Series: LHQM, 120/277 VAC, 4.3 W Fixture, 0.03/0.05 A, LED Lamp, 1.5 W Lamp, 2 Lamps, 2 Heads, 10 years Average Life, Legend: EXIT, Red Legend, 6 in H Legend, Surface Mounting, Ni-Cd Battery Power Source, Thermoplastic Housing Material, White Housing Finish, 8 in H x 19-1/4 in W x 4-3/4 in D Dimensions

Specifications

 Amperage Rating 0.03/0.05 A
 Application For both exit sign and unit equipments
 Average Life 10 years
 Brand Name Lithonia Lighting®
 Dimensions 8 in H x 19-1/4 in W x 4-3/4 in D
 Fixture Wattage 4.3 W
 Housing Finish White
 Housing Material Thermoplastic
 Includes Extra Face Plate
 Lamp Type LED
 Lamp Wattage 1.5 W
 Legend EXIT
 Legend Color Red
 Legend Size 6 in H
 Manufacturer Part Number LHQM LED R M6
 Mounting Type Surface
 Number of Heads 2
 Number of Lamps 2
 Power Source Ni-Cd Battery
 Series LHQM
 Standards/Approvals UL 924|NOM Certified|NFPA 101|NEC Compliant|OSHA Compliant
 Type Stencil Face
 Video Links
 Voltage Rating 120/277 VAC

Features

▪ The Quantum LHQM LED emergency light and exit combination unit from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain
▪ The advanced optical design and electronic technology deliver high-quality light output when it is needed most
▪ VOLTAGE- Functions between 120 or 277 V (60 Hz) with input wattage of 3 W
▪ HOURS OF LIFE- The typical life of the LED lamp is 10 years using one 1.5 W LED per lamp head
▪ DESIGN- Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof, UV-stable resin resists discoloration from natural and man-made light sources
▪ BATTERY- Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free 9.6V nickel-cadmium battery provides 90 min of emergency power
