Eaton

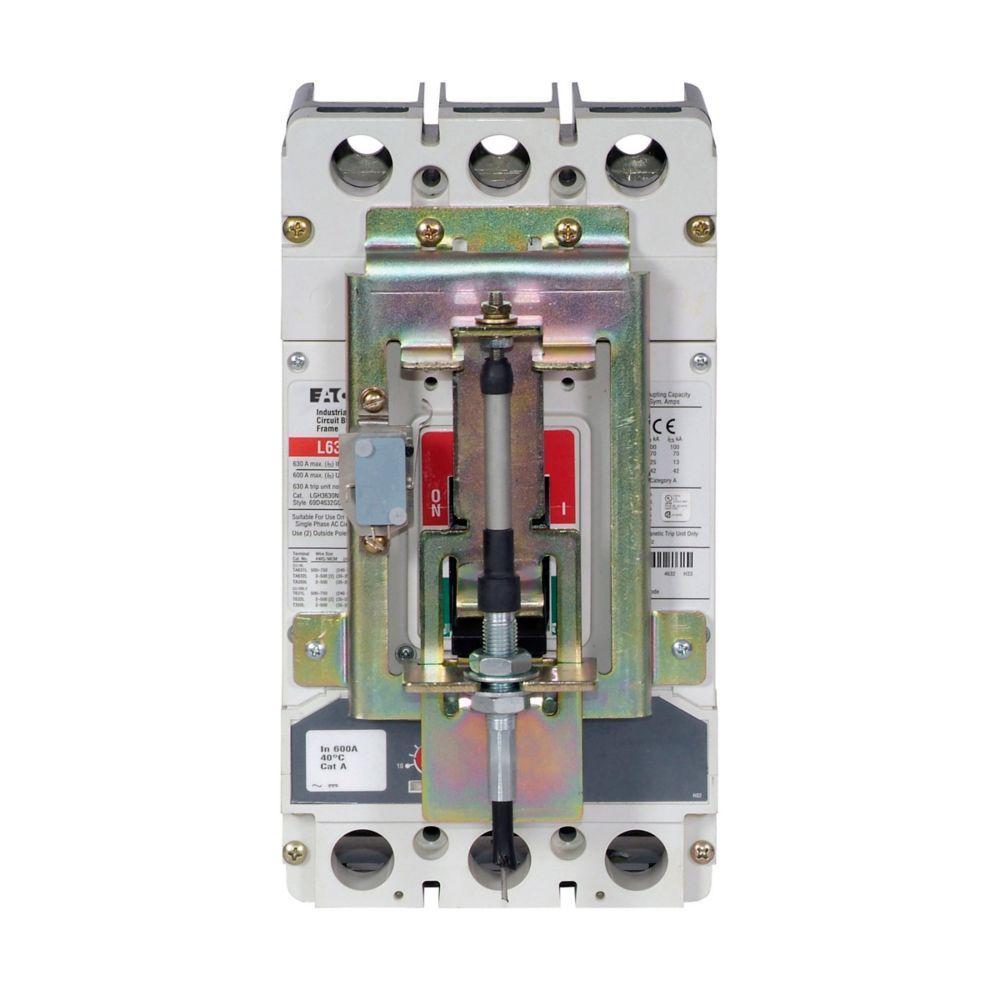

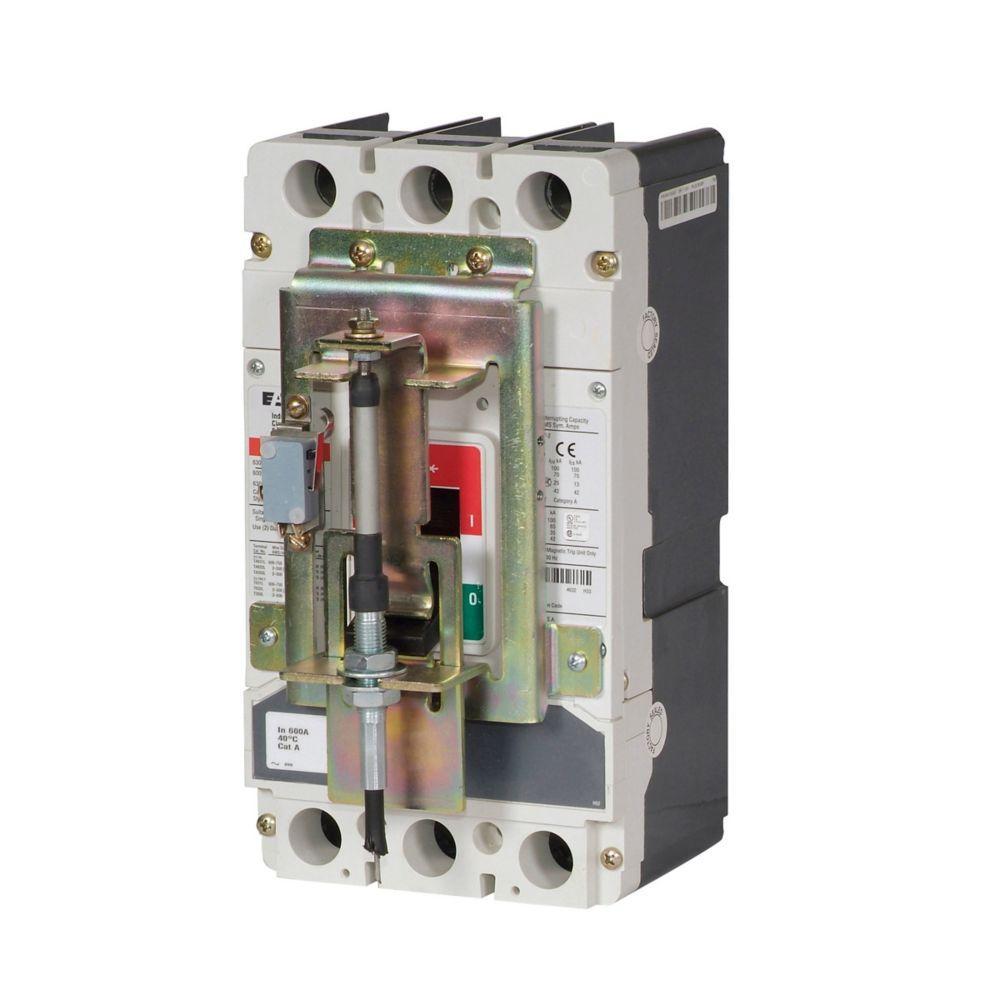

LHMFS07 C-H LG FLEXIBLE SHAFT 7 FT. LENGTH FOR TYPE 1/3R12

Mouse over image to zoom, click to enlarge

  • LHMFS07 C-H LG FLEXIBLE SHAFT 7 FT. LENGTH FOR TYPE 1/3R12
  • LHMFS07 C-H LG FLEXIBLE SHAFT 7 FT. LENGTH FOR TYPE 1/3R12
  • LHMFS07 C-H LG FLEXIBLE SHAFT 7 FT. LENGTH FOR TYPE 1/3R12

Description: EATON Handle Mechanism, Flexible Shaft Flange Mount, Series: G Series, NEMA 1/3R/12, Padlock Handle/Operation, Left/Right Handle Mounting Position, For Use With: G Series LG Frame Molded Case Circuit Breaker, 7 ft Shaft Length

Manufacturer PN: LHMFS07

UPC:  78668528476

Kendall Electric Inc PN: 2775595

Invoice Description:

LHMFS07 C-H LG FLEXIBLE SHAFT 7 FT. LENGTH FOR TYPE 1/3R12


SPEC SHEET

▸ See All in Disconnect Operating Mechanisms


How Can We Make This Page Better?

EATON LHMFS07 G Series Flexible Shaft Flange Mount Handle Mechanism, NEMA 1/3R/12, Padlock Handle/Operation, Left/Right Handle Mounting, For Use With G Series LG Frame Molded Case Circuit Breaker

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Flange mounted handle mechanisms mount on the flange of an enclosure door. The flex shaft is an extra heavy duty mechanism that includes a flexible shaft in various lengths, 3 ft through 10 ft for use with various size enclosures. The flex shaft handle will accept up to three padlock shackles, each with a maximum diameter of 3/8 in. It can be used with Type 12 fabricated enclosures. An optional handle is available for flex shaft that is suitable for use with Type 4 environments.
EATON Handle Mechanism, Flexible Shaft Flange Mount, Series: G Series, NEMA 1/3R/12, Padlock Handle/Operation, Left/Right Handle Mounting Position, For Use With: G Series LG Frame Molded Case Circuit Breaker, 7 ft Shaft Length

Specifications

 Brand Name EATON
 Handle Mounting Position Left/Right
 Handle Operation Padlock
 Manufacturer Part Number LHMFS07
 NEMA Rating NEMA 1/3R/12
 PART NUMBER KEYWORDS LHMFS07 ; 10533994 ; 786685284767 ; 78668528476 ; 00786685284767
 Series G Series
 Shaft Length 7 ft
 Standards/Approvals Contact Manufacturer
 Suitable For Use With G Series LG Frame Molded Case Circuit Breaker
 Type Flexible Shaft Flange Mount
