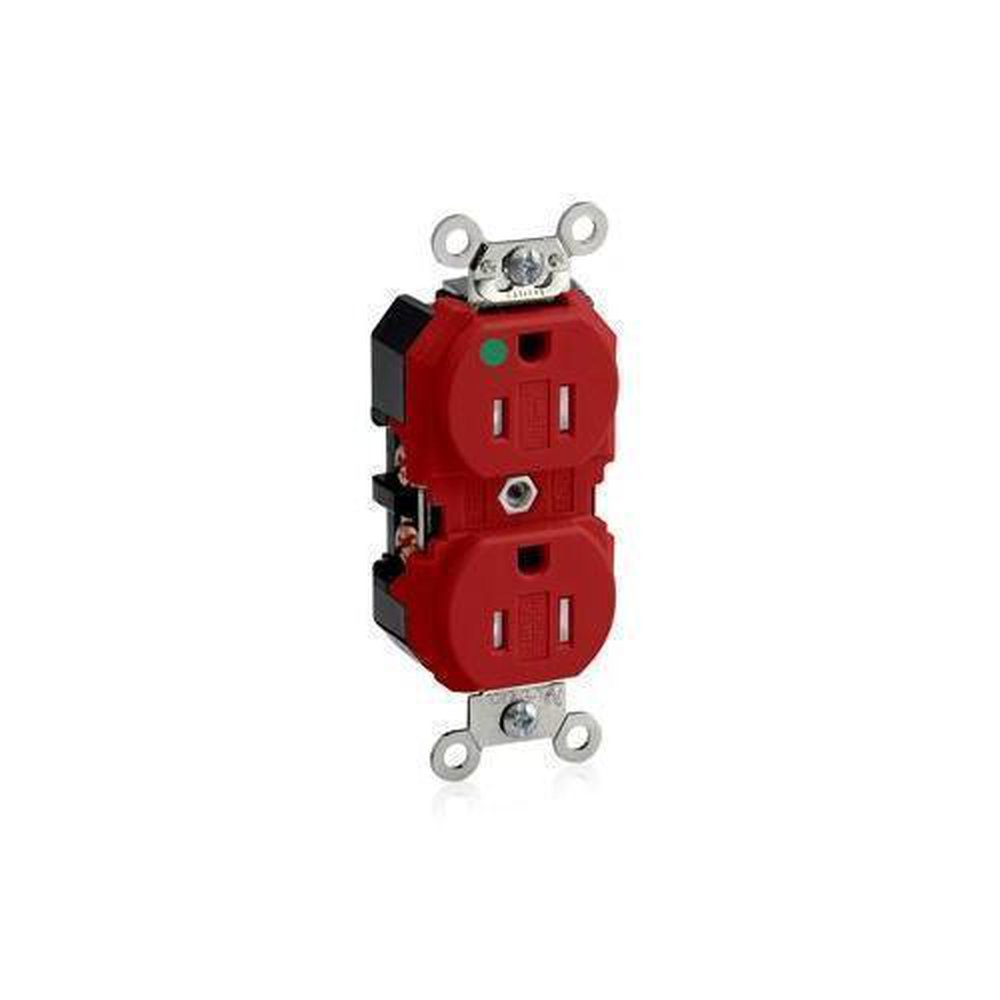

LEVITON 8200-SGR

Mouse over image to zoom, click to enlarge

Description: Leviton®, 8200-SGR, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Tamper Resistant, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Extra Heavy Duty/Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Red, 46 in H x 1.55 in W x 1.21 in D Dimensions

Manufacturer PN: 8200-SGR

UPC:  07847705717

Kendall Electric Inc PN: 2488812

Invoice Description:

LEVITON 8200-SGR


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Leviton® 8200-SGR 1-Phase Duplex Extra Heavy Duty Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Red

Log In for Pricing and Availability




Description

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Leviton®, 8200-SGR, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Tamper Resistant, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Extra Heavy Duty/Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Red, 46 in H x 1.55 in W x 1.21 in D Dimensions

Specifications

 Amperage Rating 15 A
 Brand Name Leviton®
 Color Red
 Dimensions 46 in H x 1.55 in W x 1.21 in D
 Grade Extra Heavy Duty/Hospital
 Horsepower 1/2 hp
 Manufacturer Part Number 8200-SGR
 Material Thermoplastic
 NEMA Rating NEMA 5-15R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 8200-SGR ; 8200SGR
 Standards/Approvals NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification WC596 File No. E13399|UL 498HG File No. E13399|UL Listed|CSA Certified|UL94 V-2 Flammability Rating
 Temperature Rating -40 to 60 deg C
 Terminal Type Back/Side Wire
 Type 1-Phase Duplex Extra Heavy Duty Tamper Resistant
 Voltage Rating 125 V AC

Features

▪ Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
▪ Wallbox mounting
▪ Self-grounding
▪ 1-phase
▪ 2000 VAC minimum dielectric strength
▪ Nickel plated steel strap
▪ 14 to 10 AWG wire terminal
▪ 8-hole feed-through wired termination
▪ Tamper resistant
▪ Impact resistant thermoplastic nylon cover and body
▪ Four corner latches securely fasten face
▪ Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
▪ High performance brass #10-32 terminal screws to reduce conductor oxidation
▪ Back and side wire ground termination brass strap version
▪ Back and side wiring options
▪ Break-OFF tabs allow easy 2-circuit conversion
▪ Apron barrier to prevent accidental contact between terminal screw heads and metal box
▪ Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
