LEDVANCE
LED12T8/L48/FG/841/AB/40589 SYLVANIA 4FT LEDUAL DUAL MODE LED T8, FROSTED GLASS, 12W,120 277V VOLTS, 82 CRI, 1800 LUMENS, 4100K, 50000 LIFE ZZZZ

Mouse over image to zoom, click to enlarge

Description: Sylvania DUALescent™ Tubular LED Lamp, Double Ended Dual Mode Non-Dimmable Type A/B Universal, LED12T8/L48/FG/841/AB Designation, 12 W Wattage, 120 to 277 V AC, 0.24/0.11 A, G13 Lamp Base, T8 Shape, 1800 Lumens, 50000 hr Average Life, 82 CRI, 4100 K Color Temperature, Frosted Glass Lamp, Instant-On/Programmed/Rapid Start, 220 deg Beam, 47.725 in L x 1.02 in H Dimensions

Manufacturer PN: LED12T8/L48/FG/841/AB/40589

UPC:  04613540589

Kendall Electric Inc PN: 3972172

Invoice Description:

LED12T8/L48/FG/841/AB/40589 SYLVANIA 4FT LEDUAL DUAL MODE LED T8, FROSTED GLASS, 12W,120 277V VOLTS, 82 CRI, 1800 LUMENS, 4100K, 50000 LIFE ZZZZ


SPEC SHEET

▸ See All in LED - Linear/Tubular


How Can We Make This Page Better?

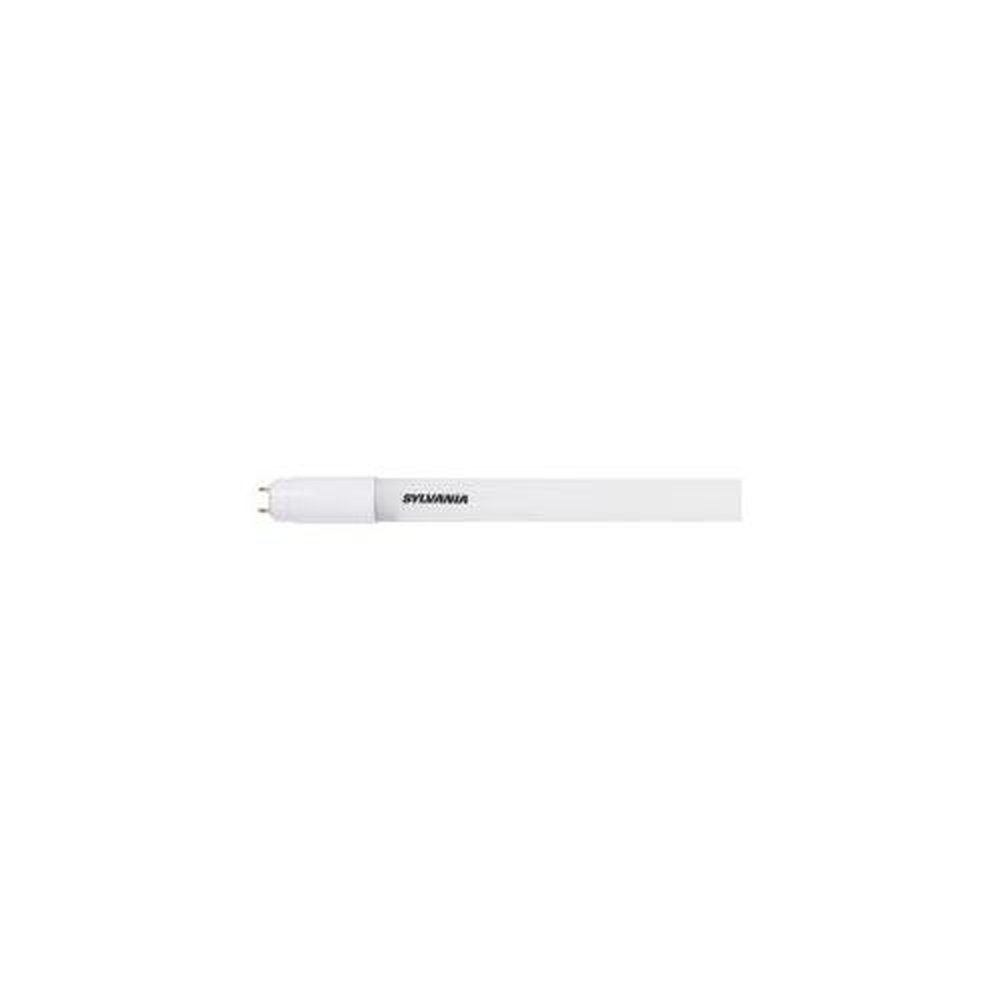

Sylvania DUALescent™ LED12T8/L48/FG/841/AB/40589 Double Ended Dual Mode Non-Dimmable Type A/B Universal Tubular LED Lamp, 12 W, G13 Lamp, T8 Shape, 1800 Lumens

Log In for Pricing and Availability




Description

Sylvania DUALescent™ Tubular LED Lamp, Double Ended Dual Mode Non-Dimmable Type A/B Universal, LED12T8/L48/FG/841/AB Designation, 12 W Wattage, 120 to 277 V AC, 0.24/0.11 A, G13 Lamp Base, T8 Shape, 1800 Lumens, 50000 hr Average Life, 82 CRI, 4100 K Color Temperature, Frosted Glass Lamp, Instant-On/Programmed/Rapid Start, 220 deg Beam, 47.725 in L x 1.02 in H Dimensions

Specifications

 Amperage Rating 0.24/0.11 A
 Application For upgrading fluorescent fixtures to LED, which provides energy savings
 Average Life 50000 hr
 Beam Angle 220 deg
 Brand Name Sylvania
 Color Rendering Index CRI 82
 Color Temperature 4100 K
 Designation LED12T8/L48/FG/841/AB
 Dimensions 47.725 in L x 1.02 in H
 Lamp Base Type G13
 Lamp Finish Frosted Glass
 Lumens 1800 Lumens
 Manufacturer Part Number LED12T8/L48/FG/841/AB/40589
 PART NUMBER KEYWORDS LED12T8/L48/FG/841/AB/40589 ; LED12T8L48FG841AB40589 ; 40589 ; 14708944 ; 046135405891 ; 46135405891 ; 04613540589 ; 00046135405891 ; 4058118127139
 Shape T8
 Standards/Approvals cULus 1993/1598c|DLC QPL Premium Listed|FCC Approved|Lead-Free Compliant|NSF Certified|RoHS Compliant|UL Listed
 Start Type Instant-On/Programmed/Rapid
 Type Double Ended Dual Mode Non-Dimmable Type A/B Universal
 Voltage Rating 120 to 277 V AC
 Wattage 12 W

Features

▪ Utilizes either fluorescent ballast or operates directly on line voltage providing flexibility in installation
▪ Lamps operate on shunted and non-shunted lamp holders thereby reducing installation costs
▪ DLC listed allows for rebates in areas where applicable saving on overall project cost
▪ No polarity can be installed in either direction, saving time (costs) in installation
▪ Low wattage lamp providing for maximum energy savings
▪ Operated as UL type A, DUALescent™ is compatible with instant start and select programmed rapid start ballasts
▪ When used as UL type B, DUALescent™ can also be used to replace fluorescent T12 lamps
▪ Suitable for use with tube guards
▪ Suitable for dry and damp locations, not for use where directly exposed to water
