  • LC2D25BD SQD REVERSING CONTACTOR
  • LC2D25BD SQD REVERSING CONTACTOR

Description: Schneider Electric Square D™ TeSys™ D IEC Contactor, D-Line Mechanical Standard, Series: LC1D, 690 V AC, 24/300 V DC Coil, 25/40 A Maximum Load Current, 5.4 W Coil, 3 Pole, 60 Hz Frequency, 1.2/3.2 W Wattage, Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 575 VAC, 40/60 at 575 VAC Contact, Screw Clamp Connection, 101/85/90 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -20 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 90 mm W x 101 mm D x 99 mm H Dimensions

Manufacturer PN: LC2D25BD

UPC:  38911039259

Kendall Electric Inc PN: 3999999

Invoice Description:

LC2D25BD SQD REVERSING CONTACTOR


SPEC SHEET

How Can We Make This Page Better?

Schneider Electric Square D™ TeSys™ D LC2D25BD LC1D D-Line Mechanical Standard IEC Contactor With Protective Cover, 690 V AC, 24/300 V DC V Coil, 25/40 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). Rated 25A AC-3 11kW@400V, it includes a 24V DC coil, 2NO+2NC aux contacts, a mechanical interlock. It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V DC coil for easy integration to all control systems. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 25A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Schneider Electric Square D™ TeSys™ D IEC Contactor, D-Line Mechanical Standard, Series: LC1D, 690 V AC, 24/300 V DC Coil, 25/40 A Maximum Load Current, 5.4 W Coil, 3 Pole, 60 Hz Frequency, 1.2/3.2 W Wattage, Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 575 VAC, 40/60 at 575 VAC Contact, Screw Clamp Connection, 101/85/90 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -20 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 90 mm W x 101 mm D x 99 mm H Dimensions

Specifications

 Application For motor control and resistive loads
 Brand Name Square D
 Coil Power Rating 5.4 W
 Coil Voltage 690 V AC, 24/300 V DC
 Connection Type Screw Clamp
 Contact Configuration 3NO
 Contact Rating 10/60 A at 575 V AC, 40/60 at 575 V AC
 Contact Type Reversing

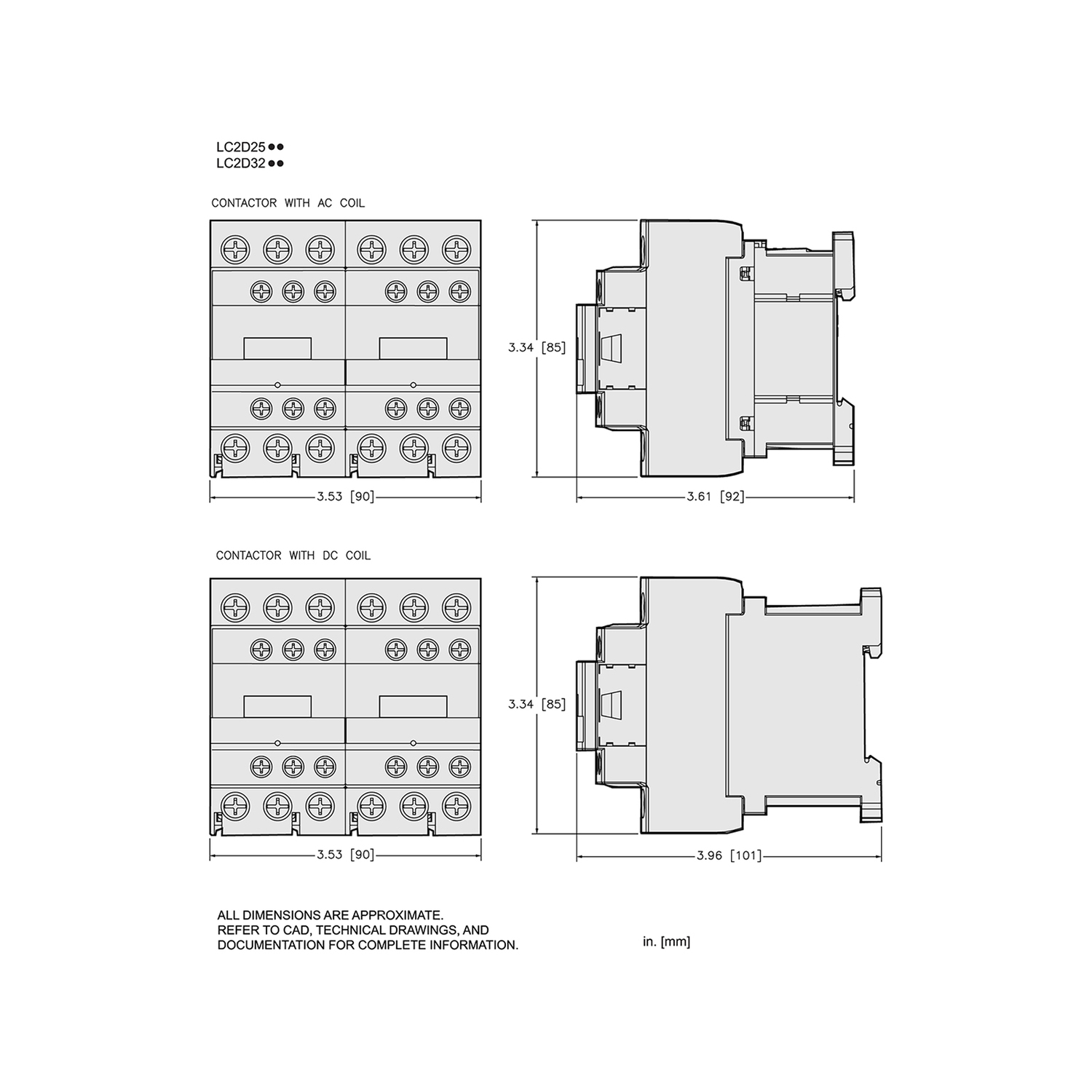

 Dimensions 90 mm W x 101 mm D x 99 mm H
 Enclosure IP2X
 Frequency Rating 60 Hz
 Manufacturer Part Number LC2D25BD
 Maximum Load Current 25/40 A
 Mounting Type Rail/Surface
 Number of Auxiliary Contacts 1NO-1NC
 Number of Poles 3
 Operating Cycles 3600 cycles/hr
 Operating Temperature -20 to 60/-40 to 70 deg C
 PART NUMBER KEYWORDS LC2D25BD ; 8084829 ; 785901207603 ; 78590120760 ; 03389110392593 ; 3389110392593
 Series LC1D
 Size 101/85/90 mm
 Standards/Approvals DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCA;CB
 Terminal Type Screw Clamp
 Type D-Line Mechanical Standard
 Video Links
 Wattage 1.2/3.2 W

Features

▪ New modern look and feel of all machines
▪ Easier to install and operate with multi-standard screws
▪ Digital customer experience for technical documents
▪ Maintenance guide via EcoStruxureTM Facility Expect
