Schneider Electric
  • LC1D80BD SQD CONTACTOR 600VAC 80AMP
  • LC1D80BD SQD CONTACTOR 600VAC 80AMP

Description: Schneider Electric Square D™ TeSys™ D IEC Contactor, Direct On-Line Standard, Series: LC1D, 690 V AC, 24/300 V DC Coil, 80/125 A Maximum Load Current, 22 W Coil, 3 Pole, 50/60 Hz Frequency, 5.1/12.5 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 60/125 A at 600 VAC Contact, Screw Clamp Connection, 127/186/85 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 85 mm W x 186 mm D x 127 mm H Dimensions

Manufacturer PN: LC1D80BD

UPC:  38911043997

Kendall Electric Inc PN: 3999975

Invoice Description:

LC1D80BD SQD CONTACTOR 600VAC 80AMP


SPEC SHEET

▸ See All in NEMA & IEC Contactors


How Can We Make This Page Better?

Schneider Electric Square D™ TeSys™ D LC1D80BD Direct On-Line Standard IEC Contactor With Protective Cover, 690 V AC, 24/300 V DC V Coil, 80/125 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 7.32 inches deep. It weighs 5.71 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Schneider Electric Square D™ TeSys™ D IEC Contactor, Direct On-Line Standard, Series: LC1D, 690 V AC, 24/300 V DC Coil, 80/125 A Maximum Load Current, 22 W Coil, 3 Pole, 50/60 Hz Frequency, 5.1/12.5 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 60/125 A at 600 VAC Contact, Screw Clamp Connection, 127/186/85 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 85 mm W x 186 mm D x 127 mm H Dimensions

Specifications

 Application For motor control and resistive loads
 Brand Name Square D
 Coil Power Rating 22 W
 Coil Voltage 690 V AC, 24/300 V DC
 Connection Type Screw Clamp
 Contact Configuration 3NO
 Contact Rating 10/60 A at 600 V AC, 60/125 A at 600 V AC
 Contact Type Non-Reversing

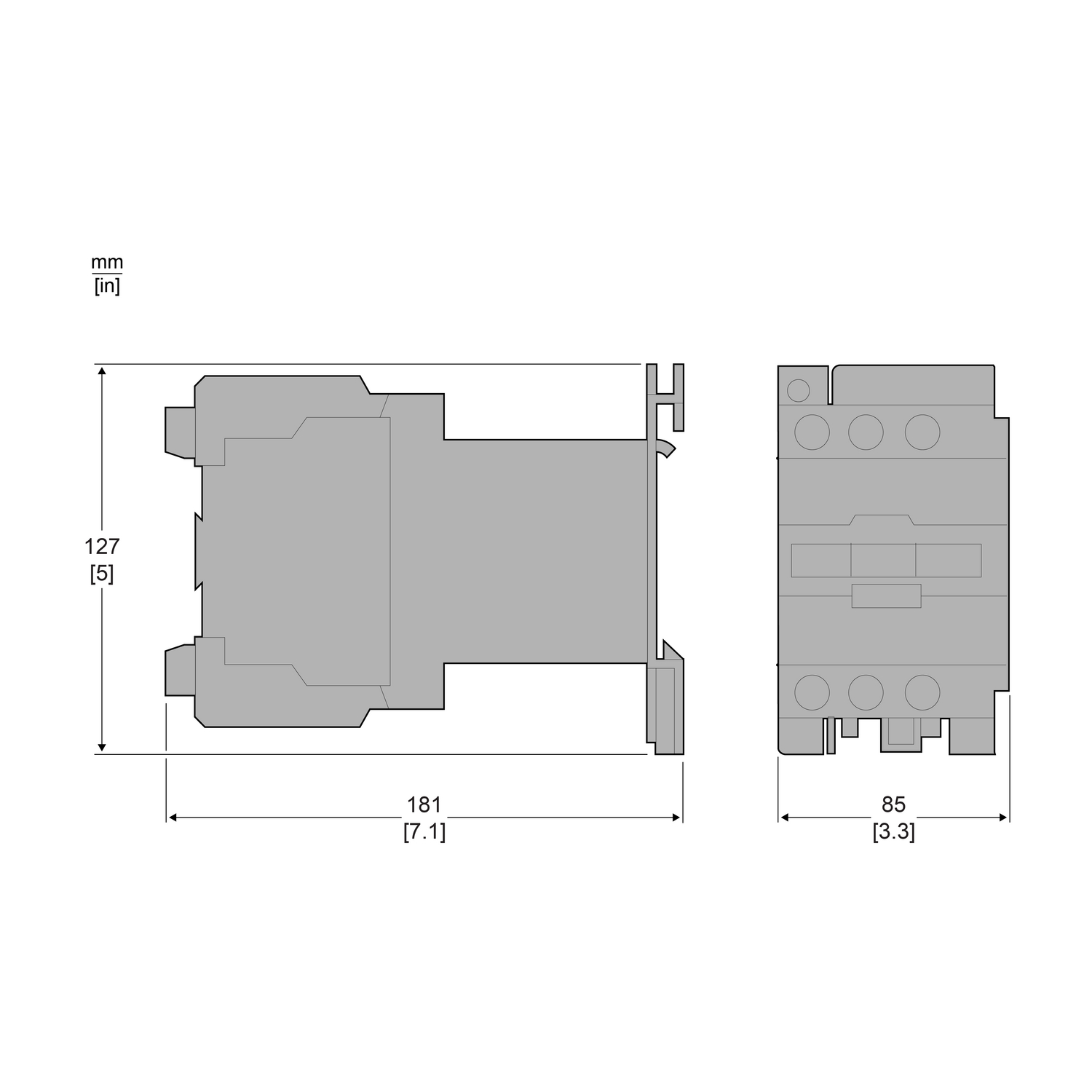

 Dimensions 85 mm W x 186 mm D x 127 mm H
 Enclosure IP2X
 Frequency Rating 50/60 Hz
 Manufacturer Part Number LC1D80BD
 Maximum Load Current 80/125 A
 Mounting Type Rail/Surface
 Number of Auxiliary Contacts 1NO-1NC
 Number of Poles 3
 Operating Cycles 3600 cycles/hr
 Operating Temperature -5 to 60/-40 to 70 deg C
 PART NUMBER KEYWORDS LC1D80BD ; 8084983 ; 785901207801 ; 78590120780 ; 03389110439977 ; 3389110439977
 Series LC1D
 Size 127/186/85 mm
 Standards/Approvals BV/GL/LROS/RINA Certified|CCC Certified|CE Certified|CSA C22.2 File No. 14 File No. LR43364 Class 3211 04|DNV/GOST Approved|ECCN EAR99|EN 60947-4-1/60947-5-1|IEC 60647-4/60947-4-1/60947-5-1/60529/VDE 0106|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E164862 NLDX/508
 Terminal Type Screw Clamp
 Type Direct On-Line Standard
 Video Links
 Wattage 5.1/12.5 W

Features

▪ Long durability with high operating rate
▪ Reliable performance under high environment
▪ Easy installation and maintenance with compact design
▪ Multiple and flexible mounting methods depending on exact need
