  • LC1D65AU7 SQD TESYS D 3P EVERLINK
  • LC1D65AU7 SQD TESYS D 3P EVERLINK

Description: Schneider Electric EverLink Square D™ TeSys™ D IEC Contactor, D-Line, Series: LC1D, 240/690 V AC, 300 V DC Coil, 65/80 A Maximum Load Current, 13/16 VA Coil, 3 Pole, 50/60 Hz Frequency, 6.3/9.6 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 440 VAC, 60 to 80 A at 440 VAC Contact, Screw Clamp Connection, 120/122/55 mm Size, Screw Clamp Terminal, Open Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 55 mm W x 120 mm D x 122 mm H Dimensions

Manufacturer PN: LC1D65AU7

UPC:  38911940903

Kendall Electric Inc PN: 3999970

Invoice Description:

LC1D65AU7 SQD TESYS D 3P EVERLINK


SPEC SHEET

▸ See All in NEMA & IEC Contactors


How Can We Make This Page Better?

Schneider Electric EverLink Square D™ TeSys™ D LC1D65AU7 D-Line IEC Contactor With Protective Cover, 240/690 V AC, 300 V DC V Coil, 65/80 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 65A/440V AC-3/3e (30kW@400V). They can be used to create motor starters for almost any type of application. It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 240 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.90 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Schneider Electric EverLink Square D™ TeSys™ D IEC Contactor, D-Line, Series: LC1D, 240/690 V AC, 300 V DC Coil, 65/80 A Maximum Load Current, 13/16 VA Coil, 3 Pole, 50/60 Hz Frequency, 6.3/9.6 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 440 VAC, 60 to 80 A at 440 VAC Contact, Screw Clamp Connection, 120/122/55 mm Size, Screw Clamp Terminal, Open Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 55 mm W x 120 mm D x 122 mm H Dimensions

Specifications

 Application For motor control and resistive loads
 Brand Name Square D
 Coil Power Rating 13/16 VA
 Coil Voltage 240/690 V AC, 300 V DC
 Connection Type Screw Clamp
 Contact Configuration 3NO
 Contact Rating 10/60 A at 440 V AC, 60 to 80 A at 440 V AC

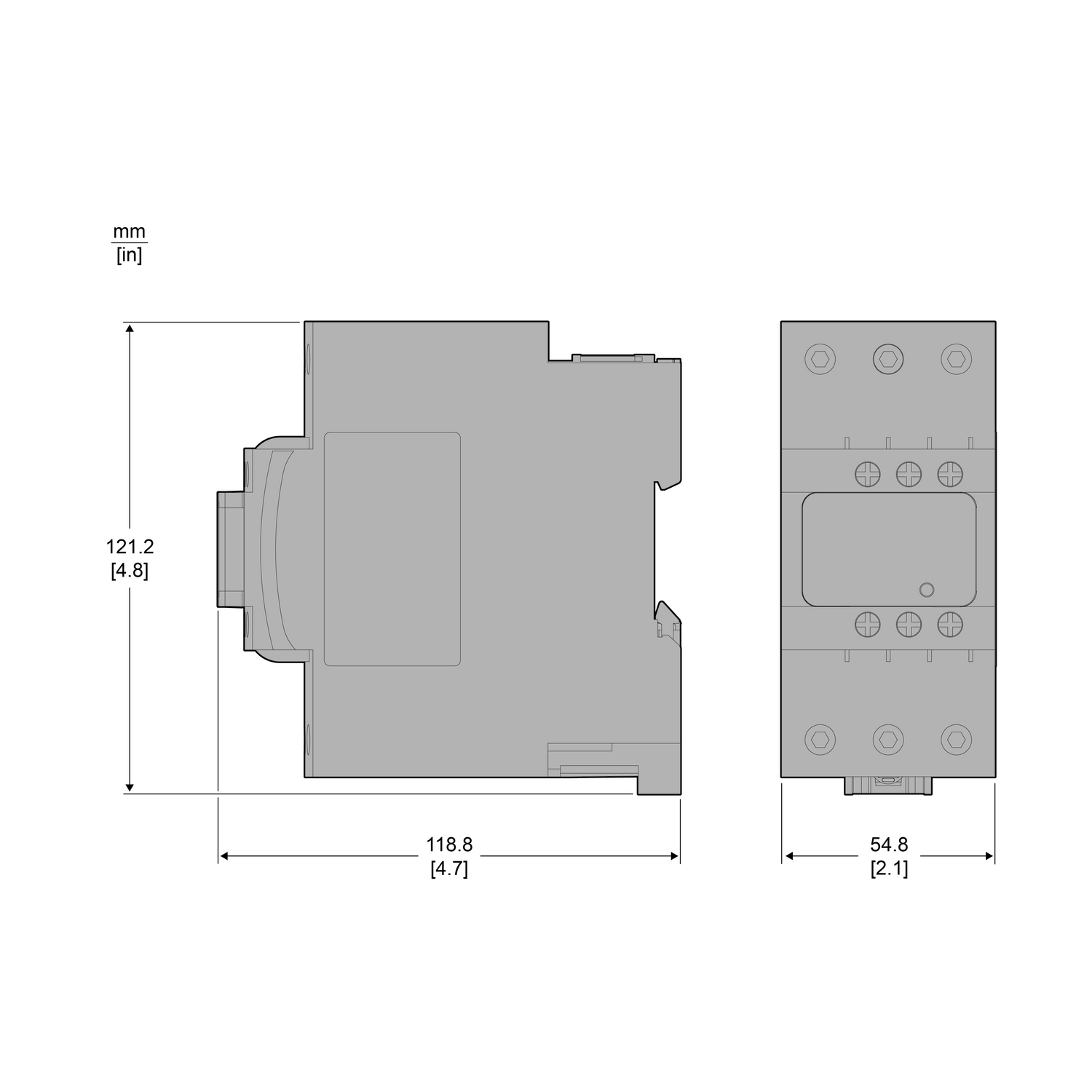

 Dimensions 55 mm W x 120 mm D x 122 mm H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number LC1D65AU7
 Maximum Load Current 65/80 A
 Mounting Type Rail/Surface
 Number of Auxiliary Contacts 1NO-1NC
 Number of Poles 3
 Operating Cycles 3600 cycles/hr
 Operating Temperature -5 to 60/-40 to 70 deg C
 PART NUMBER KEYWORDS LC1D65AU7 ; 10660139 ; 785901661498 ; 78590166149 ; 03389119409032 ; 3389119409032
 Series LC1D
 Size 120/122/55 mm
 Standards/Approvals CCC Certified|CE Certified|CSA C22.2 File No. 14|CSA C22.2 File No. 14 File No. LR43364 Class 3211 04|ECCN EAR99|EN 60947-4-1/60947-5-1|GOST Approved|IEC 60647-4/60947-4-1/60947-5-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E164862 NLDX/508
 Terminal Type Screw Clamp
 Type D-Line
 Video Links
 Wattage 6.3/9.6 W
