Schneider Electric

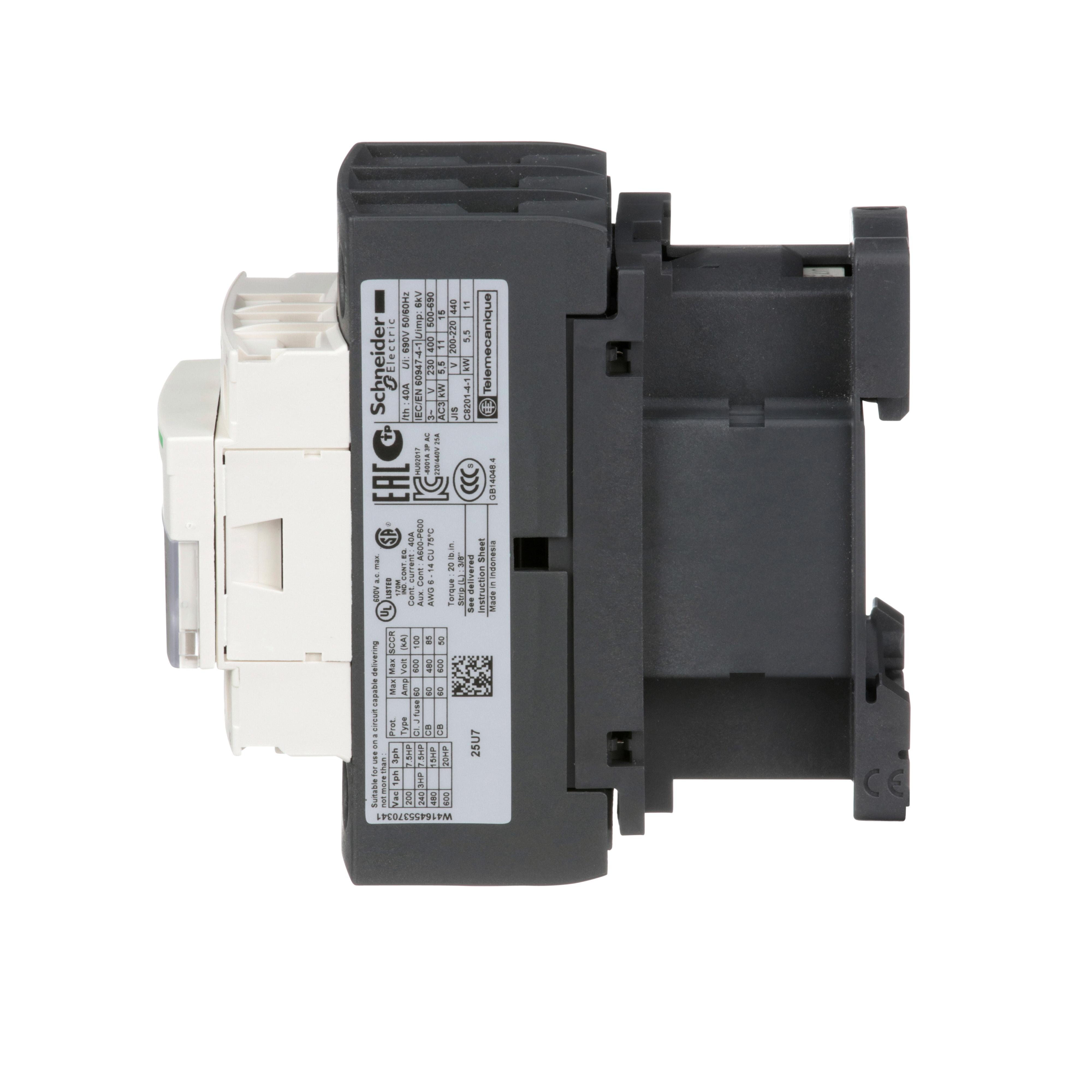

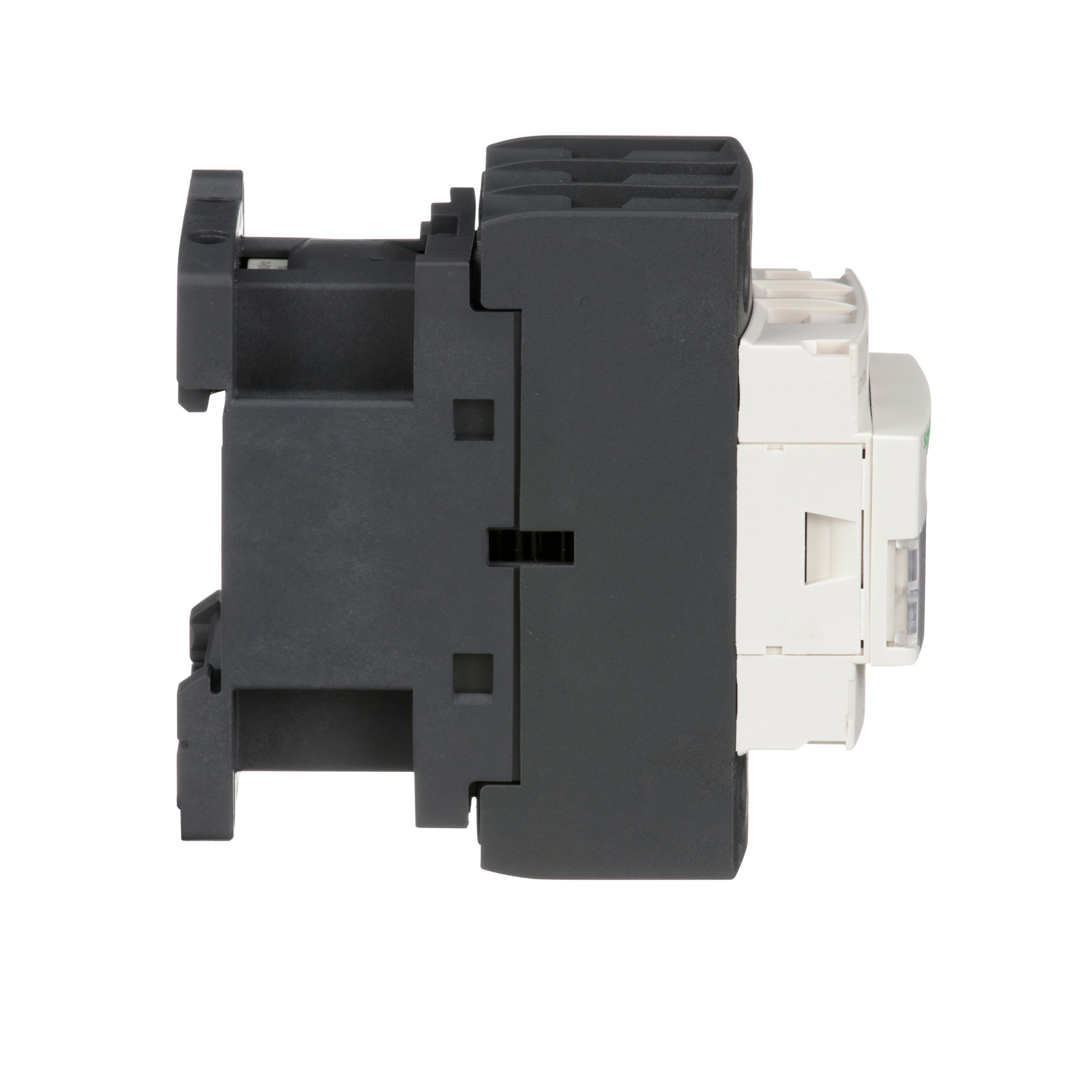

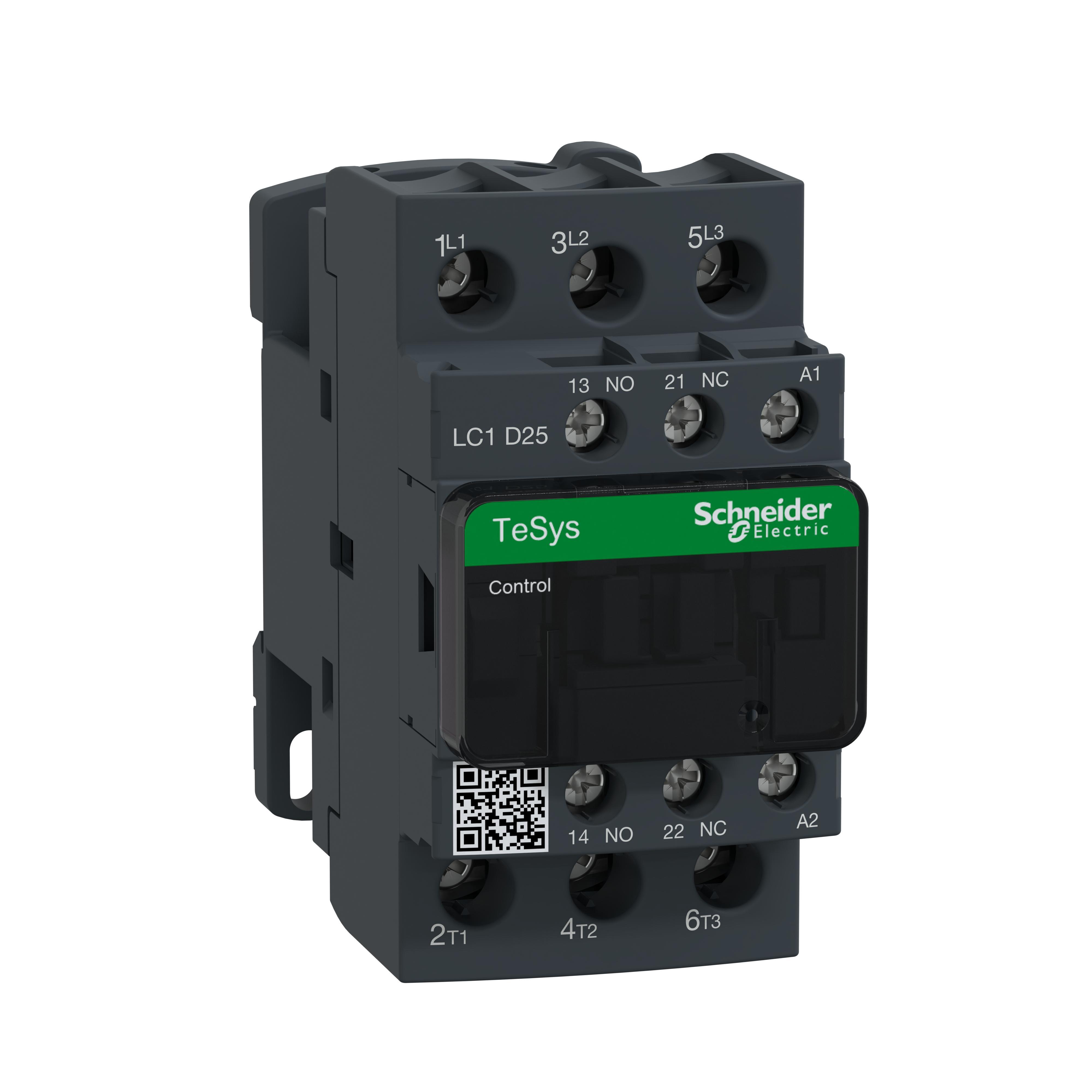

  • LC1D25U7 SQD CONTACTOR 600VAC 25AMP
  • LC1D25U7 SQD CONTACTOR 600VAC 25AMP
  • LC1D25U7 SQD CONTACTOR 600VAC 25AMP
  • LC1D25U7 SQD CONTACTOR 600VAC 25AMP
  • LC1D25U7 SQD CONTACTOR 600VAC 25AMP

Description: Square D™ TeSys™ D IEC Contactor, Direct On-Line Standard, Series: LC1D, 240/690 V AC, 300 V DC Coil, 25/40 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz, 1.25/3.2 W, Non-Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 40/60 at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp, 45/85/92 mm, Screw Clamp Terminal, IP2X, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mount, 45 mm W x 92 mm D x 85 mm H

Manufacturer PN: LC1D25U7

UPC:  38911035008

Kendall Electric Inc PN: 4004942

Invoice Description:

LC1D25U7 SQD CONTACTOR 600VAC 25AMP


SPEC SHEET

How Can We Make This Page Better?

Square D™ TeSys™ D LC1D25U7 Direct On-Line Standard IEC Contactor, 240/690 V AC, 300 V DC V Coil, 25/40 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 240 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Square D™ TeSys™ D IEC Contactor, Direct On-Line Standard, Series: LC1D, 240/690 V AC, 300 V DC Coil, 25/40 A Maximum Load Current, 7.5/7.7 VA Coil, 3 Pole, 50/60 Hz, 1.25/3.2 W, Non-Reversing Contact, 3NO, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 40/60 at 600 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp, 45/85/92 mm, Screw Clamp Terminal, IP2X, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mount, 45 mm W x 92 mm D x 85 mm H

Specifications

 Application Motor Control and Resistive Load Applications
 Brand Name Square D
 Coil Power Rating 7.5/7.7 VA
 Coil Voltage 240/690 V AC, 300 V DC
 Connection Type Screw Clamp
 Contact Configuration 3NO
 Contact Rating 10/60 A at 600 V AC, 40/60 at 600 V AC
 Contact Type Non-Reversing
 Dimensions 45 mm W x 92 mm D x 85 mm H
 Enclosure IP2X
 Frequency Rating 50/60 Hz
 Includes Protective Cover
 Manufacturer Part Number LC1D25U7
 Maximum Load Current 25/40 A
 Mounting Type Rail/Surface
 Number of Auxiliary Contacts 1NO-1NC
 Number of Poles 3
 Operating Cycles 3600 cycles/hr
 Operating Temperature -5 to 60/-40 to 70 deg C
 PART NUMBER KEYWORDS LC1D25U7 ; 8084527 ; 785901207177 ; 78590120717 ; 03389110350081 ; 3389110350081
 Power Factor 0.75 Inrush, 0.3 Hold-In
 Series LC1D
 Size 45/85/92 mm
 Standards/Approvals BV/CCC/DNV (Det Norske Veritas)/GL/GOST/LROS/RINA Certifications|CE Certified|CSA 3211 04|CSA C22.2 No.LR43364|EN 60947-4-1/EN 60947-5-1|File No. E164862 NLDX|IEC 60529/VDE 0106|IEC 60647-4|IEC 60947-4-1/60947-5-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508
 Terminal Type Screw Clamp
 Type Direct On-Line Standard
 Video Links
 Wattage 1.25/3.2 W

Features

▪ New modern look and feel of all machines
▪ Easier to install and operate with multi-standard screws
▪ Digital customer experience for technical documents
▪ Maintenance guide via EcoStruxureTM Facility Expect
