Emerson Electric

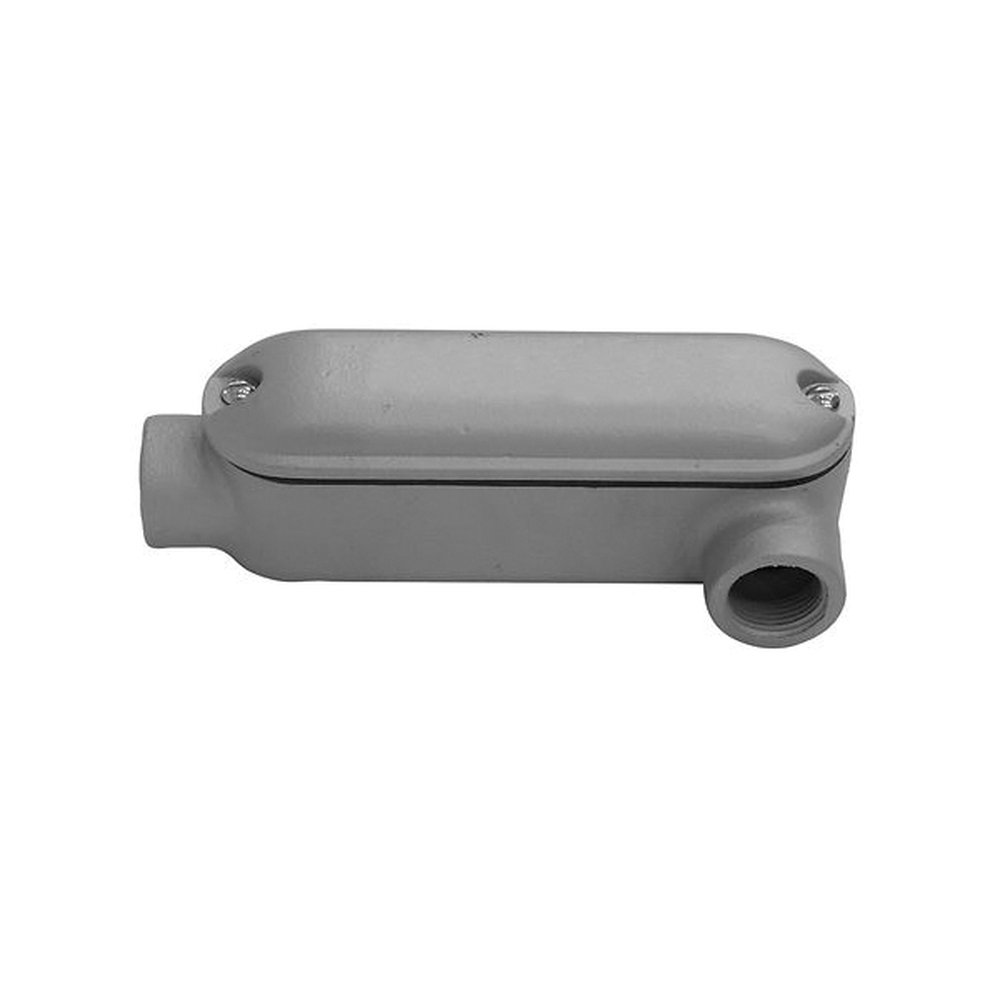

LB6X-400MG GEDNEY 4 IN LB MOGUL COND BDY GALV

Mouse over image to zoom, click to enlarge

Description: O-Z/Gedney Mogul Conduit Body, Type LB, Series: LB6X, 4 in Hub, 2 Hubs, 740 cu-in Capacity, Tapered Female NPT Connection, Malleable Iron, Hot Dipped Galvanized, 27-1/2 in L x 7 in W x 12-1/2 in H Dimensions

Manufacturer PN: LB6X-400MG

UPC:  78312604631

Kendall Electric Inc PN: 4071088

Invoice Description:

LB6X-400MG GEDNEY 4 IN LB MOGUL COND BDY GALV


SPEC SHEET

▸ See All in Conduit Bodies - Type LB


How Can We Make This Page Better?

O-Z/Gedney LB6X-400MG Type LB Mogul Conduit Body, 4 in Hub, 740 cu-in Capacity, Malleable Iron, Hot Dipped Galvanized

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

O-Z/Gedney Mogul Conduit Body, Type LB, Series: LB6X, 4 in Hub, 2 Hubs, 740 cu-in Capacity, Tapered Female NPT Connection, Malleable Iron, Hot Dipped Galvanized, 27-1/2 in L x 7 in W x 12-1/2 in H Dimensions

Specifications

 Application For rigid, IMC conduits and providing access to large, heavy conductors for pulling, splicing, maintenance and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bends
 Brand Name O-Z/Gedney
 Connection Type Tapered Female NPT
 Dimensions 27-1/2 in L x 7 in W x 12-1/2 in H
 Finish Hot Dipped Galvanized
 Hub Size 4 in
 Includes Cover, Neoprene Gasket and Captive Stainless Steel Screws
 Manufacturer Part Number LB6X-400MG
 Material Malleable Iron
 Number of Hubs 2
 PART NUMBER KEYWORDS LB6X-400MG ; LB6X400MG ; 9750542 ; 783126046311 ; 78312604631 ; 00783126046311
 Series LB6X
 Standards/Approvals UL 514A|UL File No. E18095|CSA C22.2 No. 18|CSA 009795|Federal Specification No. A-A-50563|NEMA FB-1|NEMA FB-2.10|Class I, Division 2 Hazardous Locations per NEC 501.10(B)(4)
 Type Type LB

Features

▪ Roomy interiors, more wiring space
▪ Smooth, rounded integral bushings in hubs protect conductor insulation
▪ Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
▪ Supplied with built-in cable pulling rollers
▪ Suitable for wet locations when used with gasketed covers

Resources

 Catalog
 Catalog Page
 Product Data Sheet
