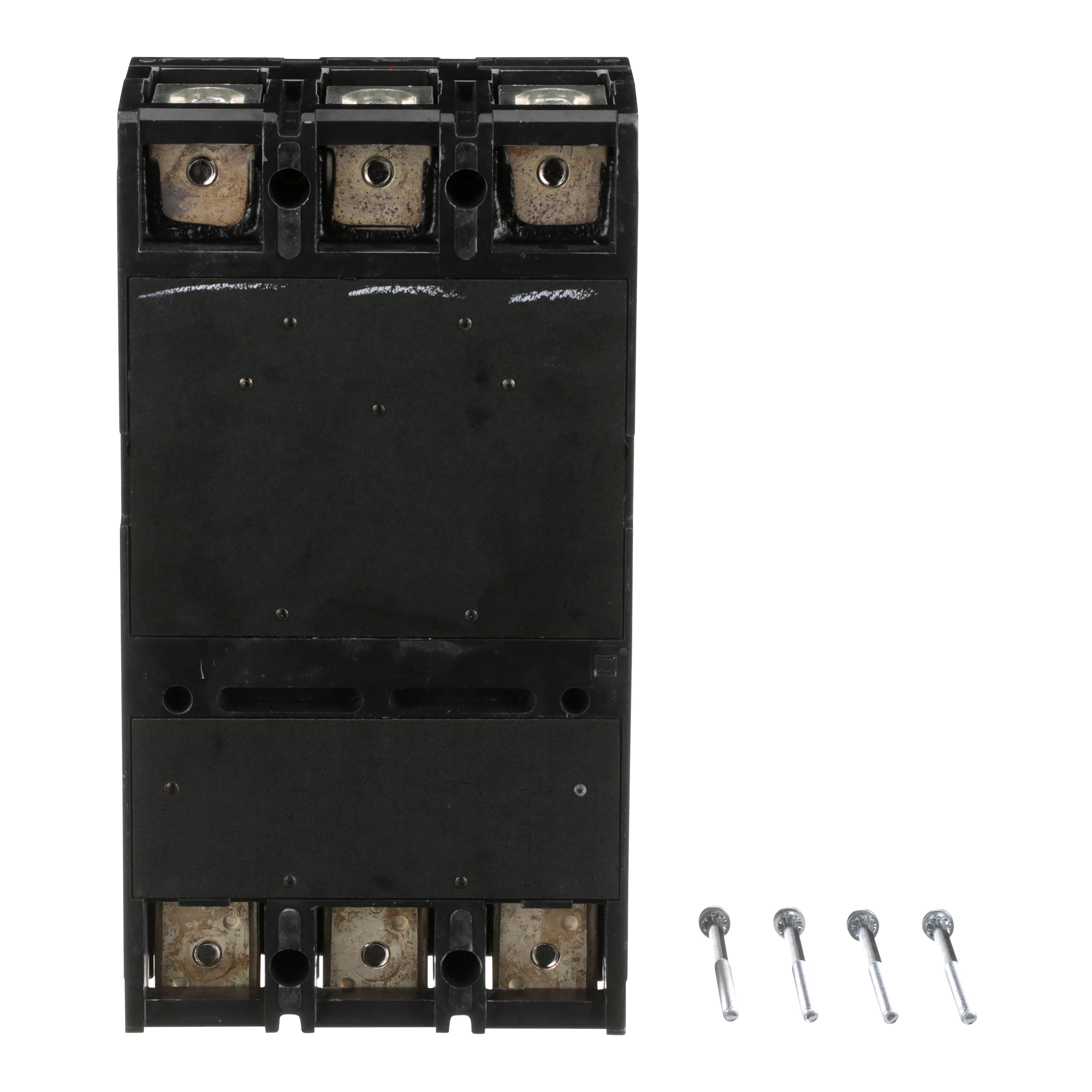

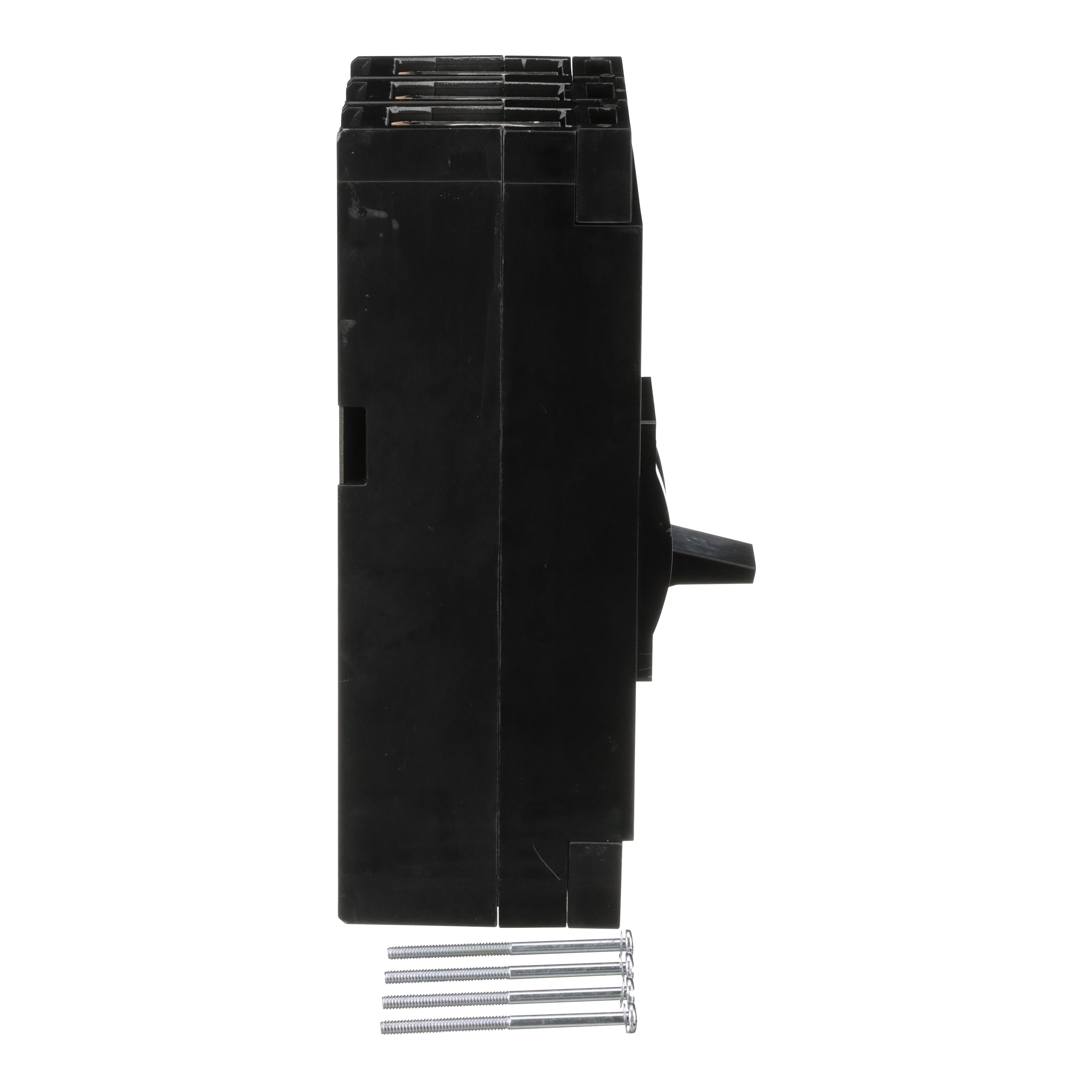

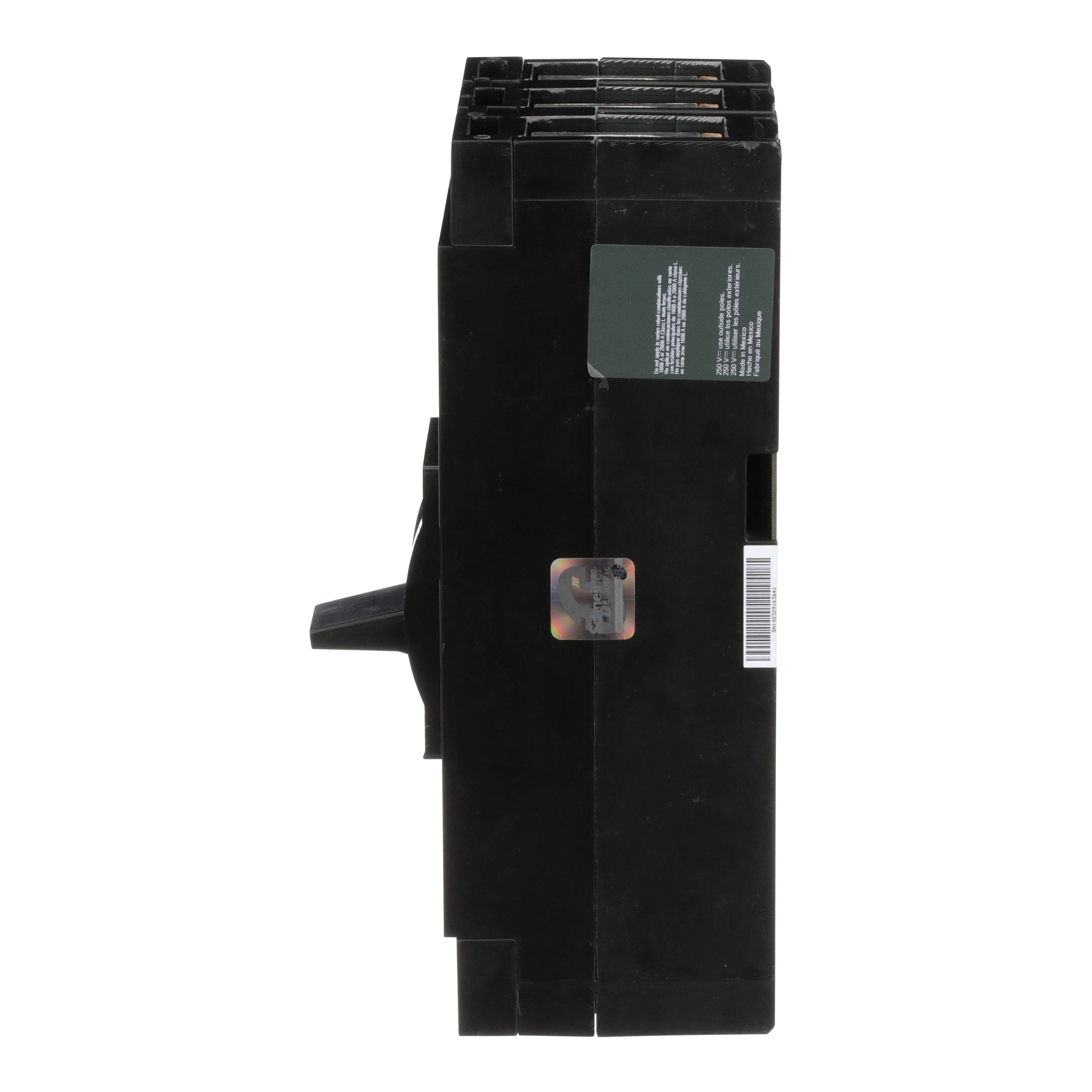

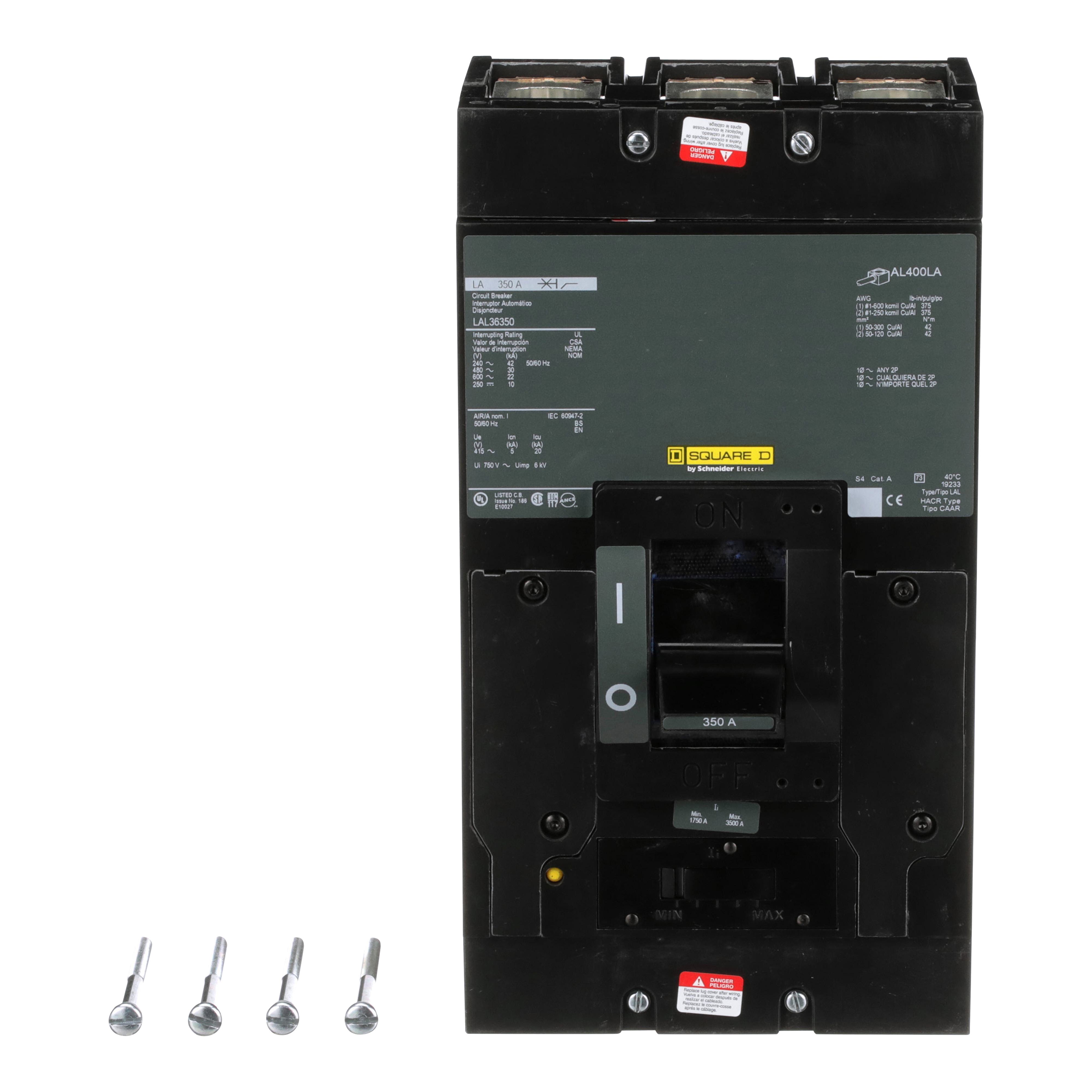

Description: Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type LAL, 600 V AC/250 V DC, 350 A, 50/60 Hz, 250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC Interrupt, L Frame, Thermal Magnetic Trip, 2000/4000 A Trip, 3 Pole, Toggle Handle Actuator, Line/Load Lug, 1 AWG to 250 kcmil, 1 AWG to 600 kcmil Wire, Unit Mount, 5.84 in L x 6 in W x 11 in H

Manufacturer PN: LAL36350

UPC:  78590142682

Kendall Electric Inc PN: 3999907

Invoice Description:

LAL36350 SQD MOLDED CASE CIRCUIT


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

Square D™ I-Line™ PowerPact™ LAL36350 Type LAL Molded Case Circuit Breaker, 600 V AC/250 V DC, 350 A, 250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 350A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.
Square D™ I-Line™ PowerPact™ Molded Case Circuit Breaker, Type LAL, 600 V AC/250 V DC, 350 A, 50/60 Hz, 250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC Interrupt, L Frame, Thermal Magnetic Trip, 2000/4000 A Trip, 3 Pole, Toggle Handle Actuator, Line/Load Lug, 1 AWG to 250 kcmil, 1 AWG to 600 kcmil Wire, Unit Mount, 5.84 in L x 6 in W x 11 in H

Specifications

 Actuator Type Toggle Handle
 Amperage Rating 350 A
 Brand Name Square D
 Connection Type Line/Load Lug

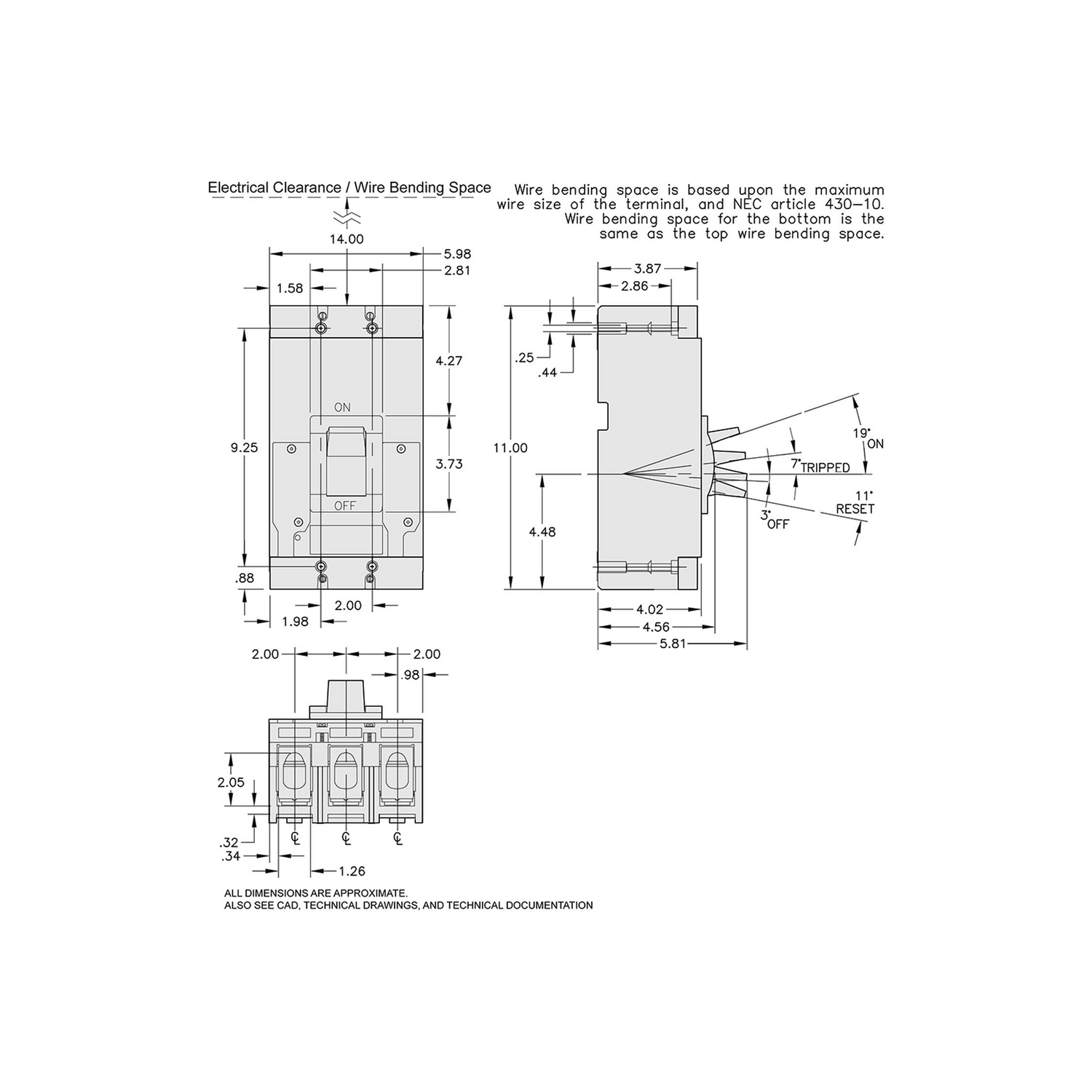

 Dimensions 5.84 in L x 6 in W x 11 in H
 Frame L
 Frequency Rating 50/60 Hz
 Manufacturer Part Number LAL36350
 Mounting Type Unit
 Number of Poles 3
 PART NUMBER KEYWORDS LAL36350 ; 8046247 ; 785901426820 ; 78590142682 ; 00785901426820 ; 0785901426820
 Standards/Approvals RoHS Compliant|UL 489 File No. E10027|CSA C22.2 File No. 5-02 File No. LR40970|CCC Certified|CE Certified|NMX J-266|Federal Specification W-C-375B/GEN|IEC 60947-2|NEMA AB1|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Trip Range 2000/4000 A
 Type Type LAL
 Voltage Rating 600 V AC/250 V DC

Features

▪ Use manual circuit open or automatic current interruption for overload or short circuit conditions
▪ Flexible platform for various types of mounting and terminations
▪ Unit mount and I-Line construction available
