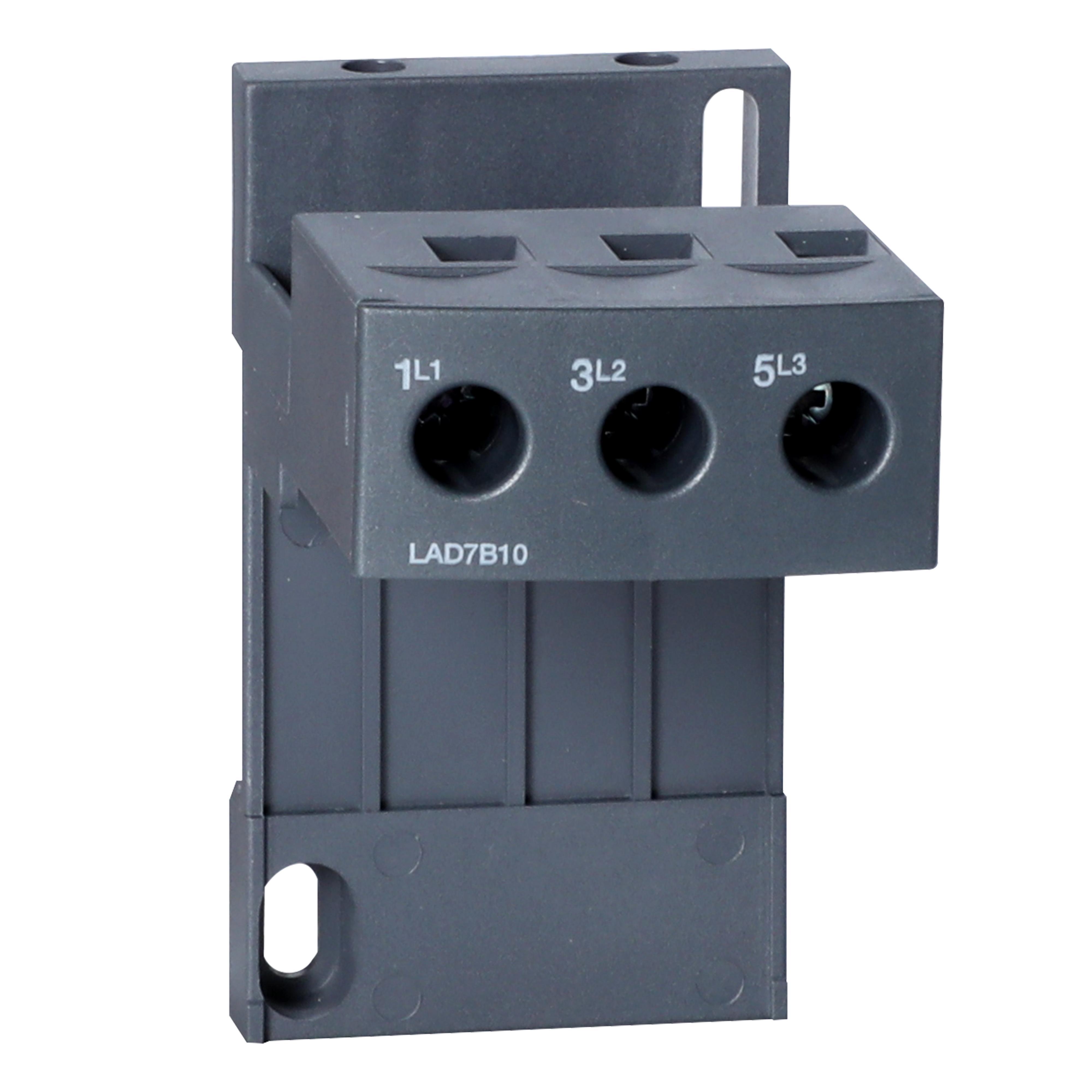

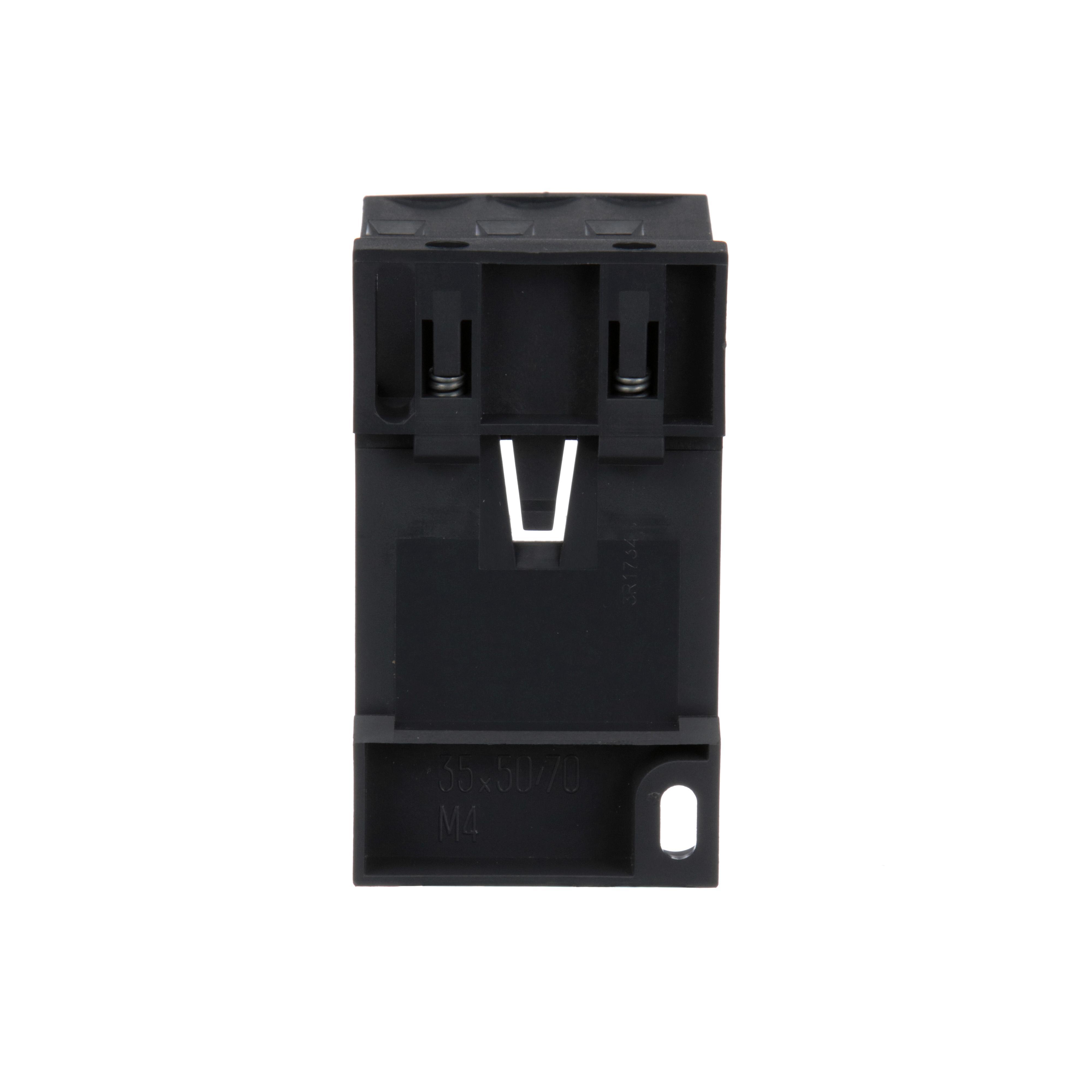

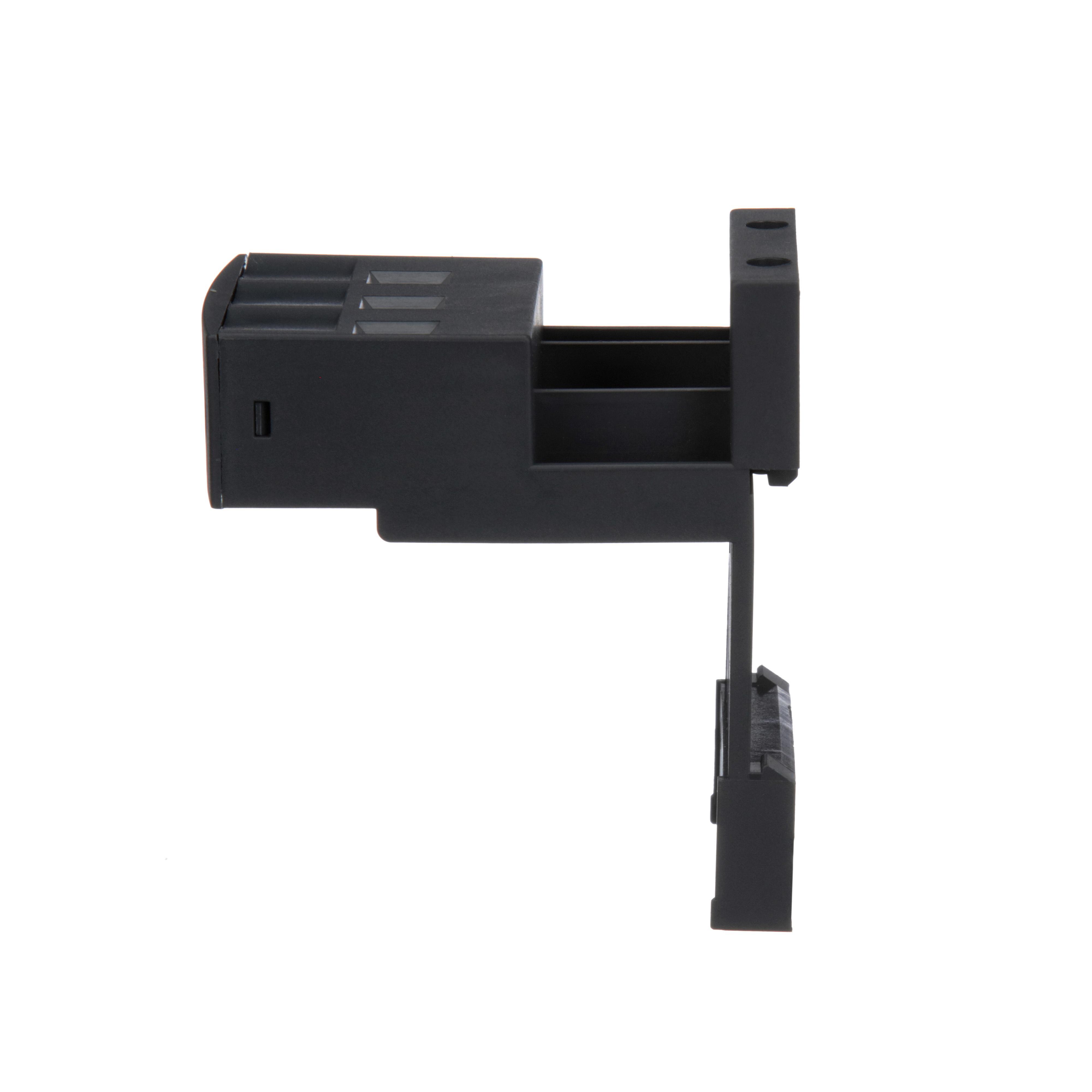

Description: Schneider Electric TeSys™ Terminal Block, For Use With: LR3D01 and LRD01 Thermal Overload Relay, Specifications: 3-Pole, 35 mm DIN Rail or Panel Mount, -5 to 55 deg C Temperature, Screw Clamp Connection, 15.6 in L x 11.7 in W x 5.7 in H Dimensions

Manufacturer PN: LAD7B10

UPC:  38911053429

Kendall Electric Inc PN: 3999886

Invoice Description:

LAD7B10 SQD TERMINAL BLOCK FOR


SPEC SHEET

▸ See All in Overload Relays


How Can We Make This Page Better?

Schneider Electric TeSys™ LAD7B10 Terminal Block With Screw, 3-Pole, 35 mm DIN Rail or Panel Mount, -5 to 55 deg C Temperature, Screw Clamp Connection, For Use With LR3D01 and LRD01 Thermal Overload Relay

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

TeSys LRD overload relays can be mount separately from the contactor to make panel layout easier in some cases. To mount the overload relay separately and to have a connection terminal, this adaptor is used. This adaptor will work with LRD01 through LRD35 and LR3D01 through R3D35 overload relays. This adaptor bracket has screw clamp terminals.
Schneider Electric TeSys™ Terminal Block, For Use With: LR3D01 and LRD01 Thermal Overload Relay, Specifications: 3-Pole, 35 mm DIN Rail or Panel Mount, -5 to 55 deg C Temperature, Screw Clamp Connection, 15.6 in L x 11.7 in W x 5.7 in H Dimensions

Specifications

 Brand Name Square D
 Dimensions 15.6 in L x 11.7 in W x 5.7 in H
 Manufacturer Part Number LAD7B10
 PART NUMBER KEYWORDS LAD7B10 ; 8083544 ; 785901534297 ; 78590153429 ; 03389110534290
 Specifications 3-Pole, 35 mm DIN Rail or Panel Mount, -5 to 55 deg C Temperature, Screw Clamp Connection
 Standards/Approvals RoHS Compliant|ECCN EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
 Suitable For Use With LR3D01 and LRD01 Thermal Overload Relay

Features

▪ Add on design to ensure product flexibility
▪ New Product signature to align with TeSys Deca series
▪ Easier to install and operate with multi-standard screws
▪ Environmental performance of the product
