Schneider Electric
  • LA400S SQD ENCLOSURE FOR CIRCUIT
  • LA400S SQD ENCLOSURE FOR CIRCUIT

Description: Square D™ Circuit Breaker Enclosure, Standard, 15.38 in Width, 6-1/2 in Depth, 44-1/2 in Height, NEMA 1 Rating, Q4/LAL/LHL/Q4L/KAL/KHL Frame, 3 Pole, Lock: Padlock, 125 to 400 A, 600 V AC Electrical Rating, Surface Mounting, Steel

Manufacturer PN: LA400S

UPC:  78590150801

Kendall Electric Inc PN: 3999873

Invoice Description:

LA400S SQD ENCLOSURE FOR CIRCUIT


SPEC SHEET

How Can We Make This Page Better?

Square D™ LA400S Standard Circuit Breaker Enclosure, 15.38 in W x 6-1/2 in D x 44-1/2 in H, NEMA 1 NEMA Rating, Steel

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  The enclosures' maximum short circuit ratings are 25 kAIR at 600 Vac, 65 kAIR at 480 Vac, 125 kAIR at 240 Vac and 20 kA at 250 Vdc unless otherwise noted. Enclosures accept 100% rated circuit breakers 8. This PowerPact L-Frame, Circuit Breaker Enclosure, 2P, 3P, 15-250A,NEMA 1, surface. This enclosure is for L-Frame breakers. This product comes with an 18 months warranty.

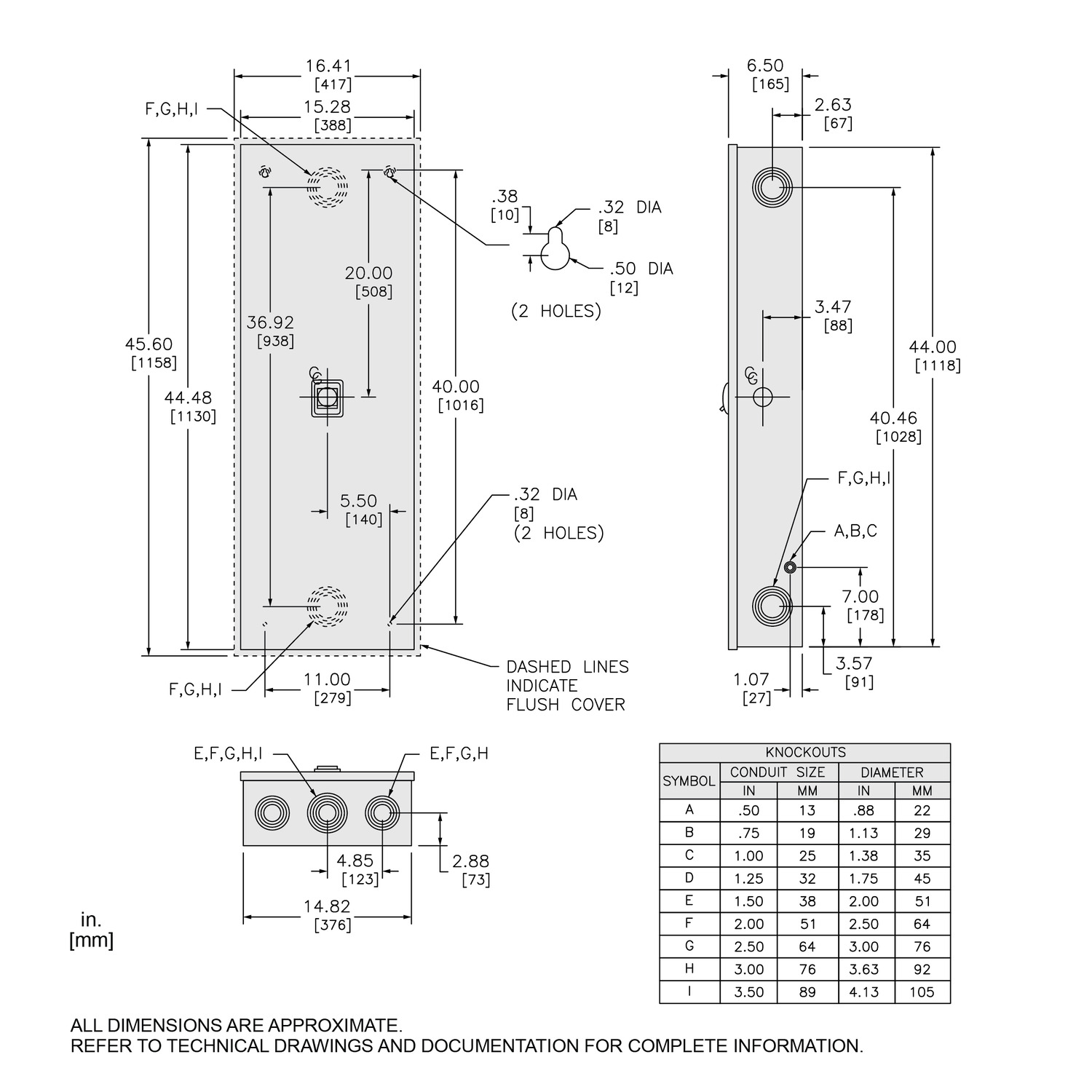

Square D™ Circuit Breaker Enclosure, Standard, 15.38 in Width, 6-1/2 in Depth, 44-1/2 in Height, NEMA 1 Rating, Q4/LAL/LHL/Q4L/KAL/KHL Frame, 3 Pole, Lock: Padlock, 125 to 400 A, 600 V AC Electrical Rating, Surface Mounting, Steel

Specifications

 Brand Name Square D
 Depth 6-1/2 in
 Electrical Ratings 125 to 400 A, 600 V AC
 Frame Q4/LAL/LHL/Q4L/KAL/KHL
 Height 44-1/2 in
 Lock Padlock
 Manufacturer Part Number LA400S
 Material Steel
 Mounting Type Surface
 NEMA Rating NEMA 1
 Number of Poles 3
 PART NUMBER KEYWORDS LA400S ; 8075062 ; 785901508014 ; 78590150801 ; 00785901508014 ; 0785901508014
 Standards/Approvals Buy American Act Compliant|CSA Certified|NEMA Approved|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type Standard
 Width 15.38 in

Features

▪ Available in 2 and 3 pole design
▪ Protection from overloads and short circuits
▪ Automatic molded case switches available
▪ Unit mount, I-Line and rear connect constructions
