Broan-NuTone

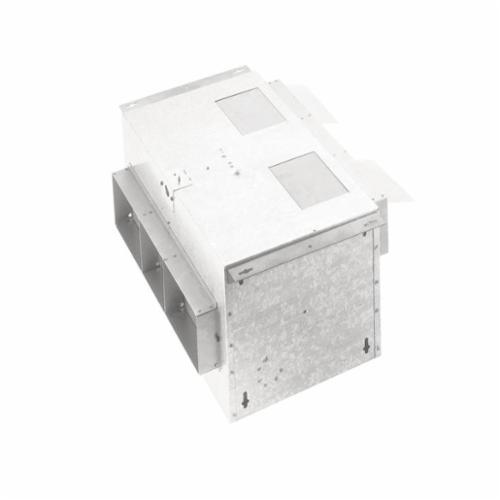

L500KL NUTONE VENTILATOR; 472 CFM STRAIGHT THROUGH, 3.8 SONES; 459 CFM RIGHT ANGLE, 1.8 SONES. 120V.

Mouse over image to zoom, click to enlarge

  • L500KL NUTONE VENTILATOR; 472 CFM STRAIGHT THROUGH, 3.8 SONES; 459 CFM RIGHT ANGLE, 1.8 SONES. 120V.
  • L500KL NUTONE VENTILATOR; 472 CFM STRAIGHT THROUGH, 3.8 SONES; 459 CFM RIGHT ANGLE, 1.8 SONES. 120V.

Description: NuTone® LoSone Select® Ceiling Exhaust Ventilator, In-Line Straight Through, 120 V AC, 2.2 A, 472 cfm, 4-1/2 x 18-1/2 in Duct, 60 Hz, Galvanized Steel Housing, 12-1/4 in L x 12-1/2 in W x 11-3/4 in H, Domestic

Manufacturer PN: L500KL

UPC:  02671512513

Kendall Electric Inc PN: 4553316

Invoice Description:

L500KL NUTONE VENTILATOR; 472 CFM STRAIGHT THROUGH, 3.8 SONES; 459 CFM RIGHT ANGLE, 1.8 SONES. 120V.


SPEC SHEET

▸ See All in Wall & Ceiling Exhaust Fans


How Can We Make This Page Better?

NuTone® LoSone Select® L500KL In-Line Straight Through Ceiling Exhaust Ventilator, 120 V AC, 2.2 A, 4-1/2 x 18-1/2 in Duct, 472 cfm, Galvanized Steel Housing, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed.
NuTone® LoSone Select® Ceiling Exhaust Ventilator, In-Line Straight Through, 120 V AC, 2.2 A, 472 cfm, 4-1/2 x 18-1/2 in Duct, 60 Hz, Galvanized Steel Housing, 12-1/4 in L x 12-1/2 in W x 11-3/4 in H, Domestic

Specifications

 Amperage Rating 2.2 A
 Application Conference, Commercial Buildings and Public Restroom
 Brand Name Broan
 Dimensions 12-1/4 in L x 12-1/2 in W x 11-3/4 in H
 Domestic or Import Domestic
 Duct Size 4-1/2 x 18-1/2 in
 Flow Rate 472 cfm
 Frequency Rating 60 Hz
 Housing Material Galvanized Steel
 Manufacturer Part Number L500KL
 PART NUMBER KEYWORDS L500KL ; 8489802 ; 026715125135 ; 26715125135 ; 02671512513 ; 00026715125135
 Standards/Approvals UL/cUL Listed|AMCA Certified
 Type In-Line Straight Through
 Voltage Rating 120 V AC

Features

▪ 805 rpm Horizontal, 905 rpm at 0.1 in SP vertical AC motor
▪ Resilient anti-vibration motor mounts
▪ Dynamically balanced polymeric centrifugal blower wheel for quiet, efficient performance
▪ Rugged 26 ga galvanized steel construction housing
▪ 8-position mounting brackets for easy installation and greater adaptability to various mounting requirements, automatic backdraft damper located within duct connector
▪ Suitable for kitchen installations, for controlling use model 57V (ivory)/57W (white) 3 A, electronic variable speed control or model 59V (ivory)/59W (white) 60 min time control or model 61V (ivory)/61W (white) 15 min time control or model 71V (ivory)/71W (white) 12 hr time control or model 72V (ivory)/72W (white) 6 A, electronic variable speed control, model 80L electronic speed control (Internal)
▪ Plug-in permanently lubricated thermally protected motor designed for continuous operation
▪ Low rpm for quiet operation blower
▪ 472 cfm at 1/8 in SP straight through, 3.8 Sones, 459 cfm right angle, 1.8 Sones
▪ Round duct
