Eaton

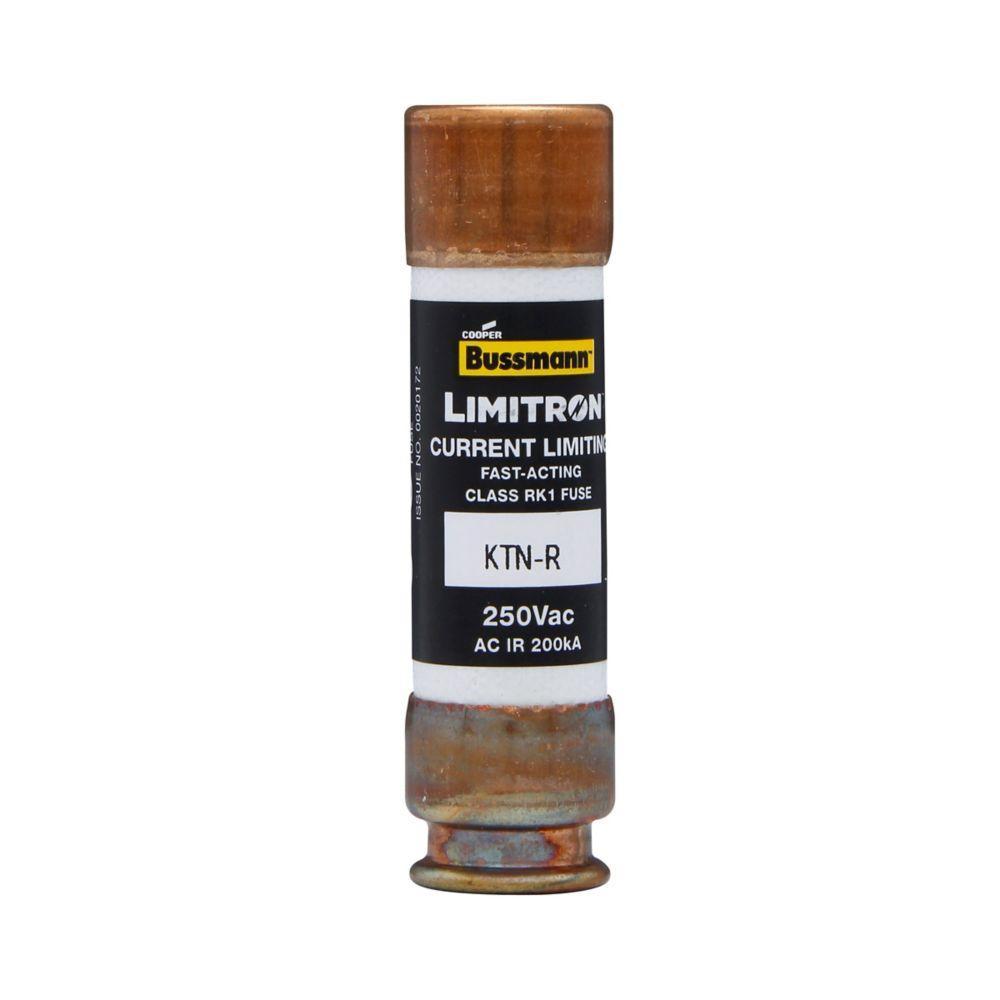

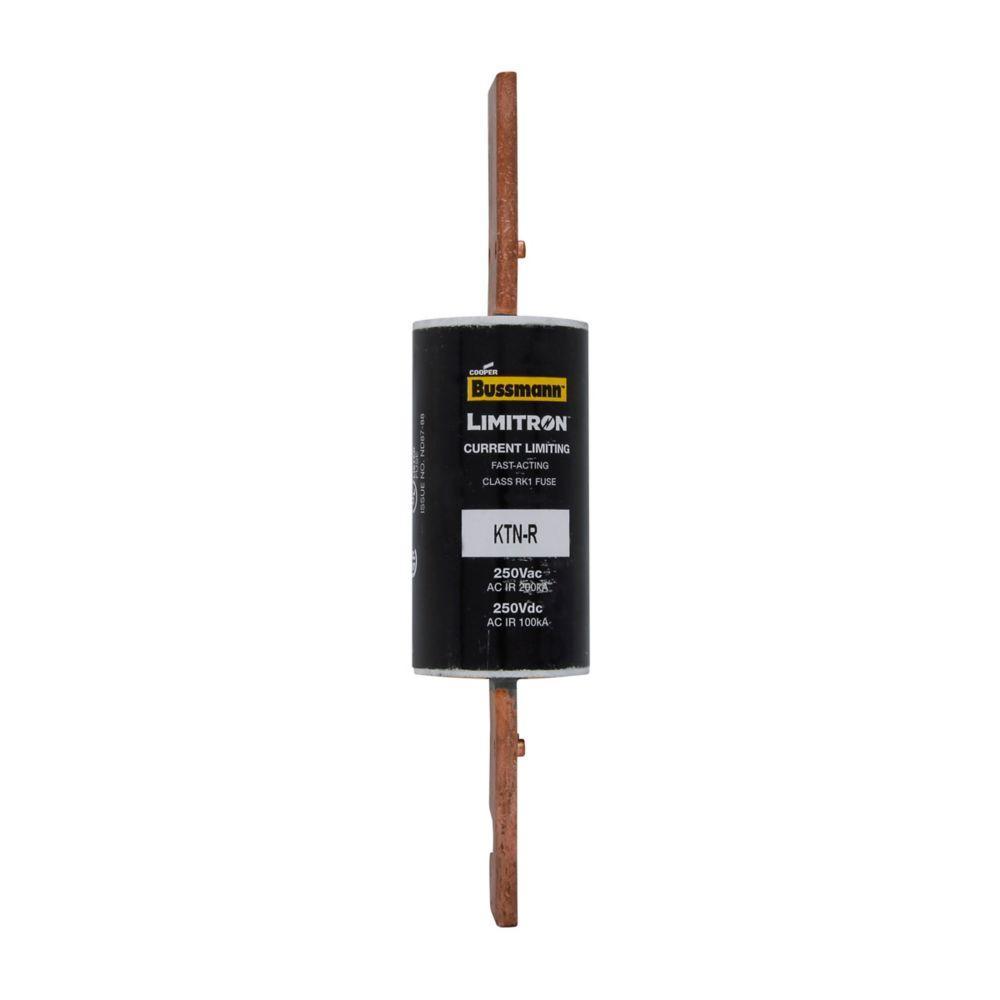

KTNR60 BUSS 250V FUSE (1)

Mouse over image to zoom, click to enlarge

  • KTNR60 BUSS 250V FUSE (1)
  • KTNR60 BUSS 250V FUSE (1)
  • KTNR60 BUSS 250V FUSE (1)

Description: Bussmann Limitron™ Fuse, Fast Acting Current Limiting Low Voltage, Series: KTN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 60 A, 250 V, 10000 A Interrupt, Class: RK1, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass, 0.81 in Dia x 3 in L Body Size

Manufacturer PN: KTN-R-60

UPC:  05171240712

Kendall Electric Inc PN: 22571

Invoice Description:

KTNR60 BUSS 250V FUSE (1)


SPEC SHEET

▸ See All in Class RK1 Fuses


How Can We Make This Page Better?

Bussmann Limitron™ KTN-R-60 Fast Acting Current Limiting Low Voltage Fuse, 60 A, 250 V, 10000 A Interrupt, RK1 Class, Cartridge Body

Log In for Pricing and Availability




Description

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
Bussmann Limitron™ Fuse, Fast Acting Current Limiting Low Voltage, Series: KTN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 60 A, 250 V, 10000 A Interrupt, Class: RK1, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass, 0.81 in Dia x 3 in L Body Size

Specifications

 Amperage Rating 60 A
 Application Panelboard Applications, Safety and Security Systems
 Body Size 0.81 in Dia x 3 in L
 Body Type Cartridge
 Brand Name Bussmann
 Class RK1
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number KTN-R-60
 Material Melamine Glass
 Mounting Type Holder
 Rejection Non Rejection Rejection
 Series KTN-R
 Standards/Approvals Not Applicable
 Terminal Type Ferrule
 Type Fast Acting Current Limiting Low Voltage
 Video Links
 Voltage Rating 250 V

Features

▪ Current limitation for non-inductive circuits provides class RK1 current limiting response to maximum ground fault and short circuit conditions
▪ 200 kA interrupting rating provides high ratings at all circuit locations
▪ Economical solutions for high fault circuits
▪ 70/30 brass end cap
▪ 200 kA at 250 VAC, 100 kA at 250 VDC interrupt rating
