Eaton

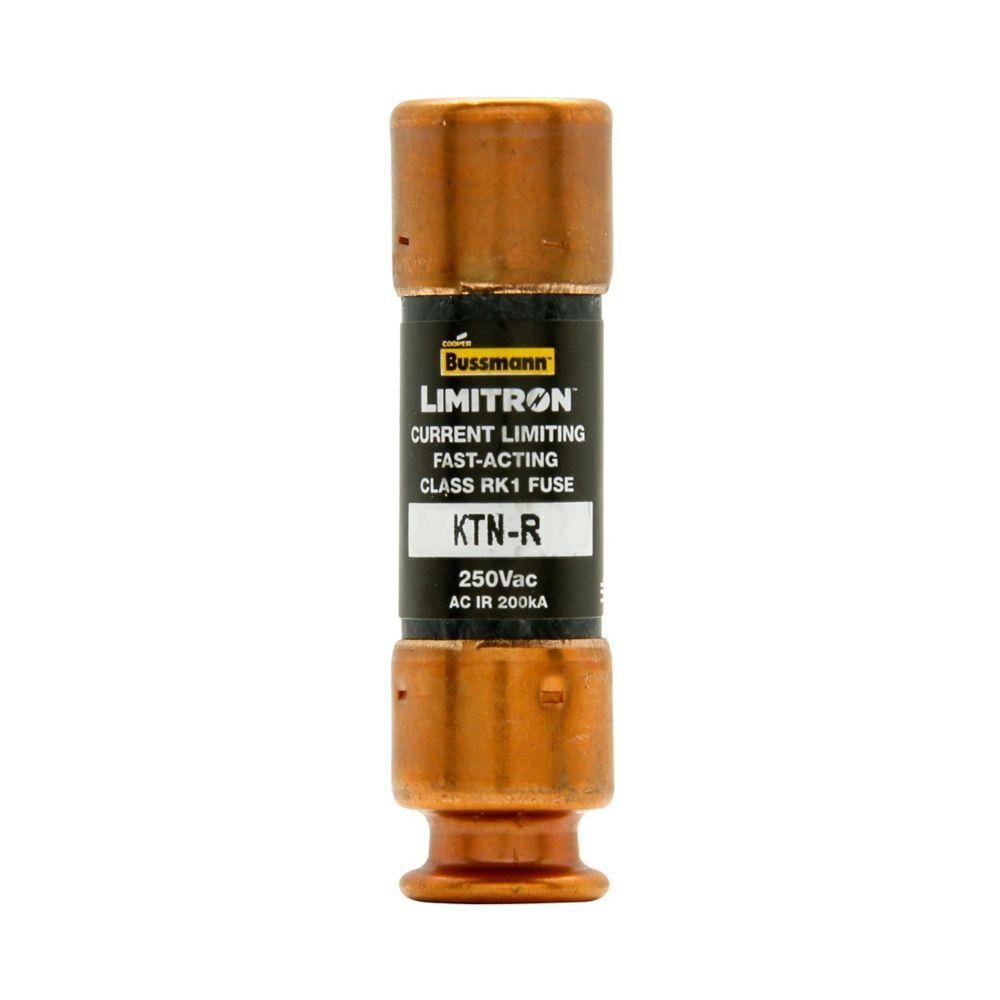

KTNR1 BUSS 250V RK 1 FUSE

Mouse over image to zoom, click to enlarge

  • KTNR1 BUSS 250V RK 1 FUSE
  • KTNR1 BUSS 250V RK 1 FUSE

Description: Bussmann Limitron™ Fuse, Current Limiting Fast Acting Low Voltage, Series: KTN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1 A, 250 V, 200/10 kAIC Interrupt, Class: RK1, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 0.56 in Dia x 2 in L Body Size

Manufacturer PN: KTN-R-1

UPC:  05171240700

Kendall Electric Inc PN: 22556

Invoice Description:

KTNR1 BUSS 250V RK 1 FUSE


SPEC SHEET

▸ See All in Class RK1 Fuses


How Can We Make This Page Better?

Bussmann Limitron™ KTN-R-1 Current Limiting Fast Acting Low Voltage Fuse With Minimal Time Delay, 1 A, 250 V, 200/10 kAIC Interrupt, RK1 Class, Cartridge Body

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
Bussmann Limitron™ Fuse, Current Limiting Fast Acting Low Voltage, Series: KTN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1 A, 250 V, 200/10 kAIC Interrupt, Class: RK1, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 0.56 in Dia x 2 in L Body Size

Specifications

 Amperage Rating 1 A
 Application Industrial Facilities and Factories, Safety and Security Systems and Panelboard Applications
 Body Size 0.56 in Dia x 2 in L
 Body Type Cartridge
 Brand Name Bussmann
 Class RK1
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number KTN-R-1
 Material Melamine Glass Tube
 Mounting Type Holder
 Rejection Non Rejection Rejection
 Series KTN-R
 Standards/Approvals CE Certified|CSA C22.2 File No.53787/248.12|UL 248-12 File No.E54273 Guide JDDZ
 Terminal Type Ferrule End
 Type Current Limiting Fast Acting Low Voltage
 Voltage Rating 250 V

Features

▪ Current limitation for non-inductive circuits provides class RK1 current limiting response to maximum ground fault and short circuit conditions
▪ 200 kA interrupt rating provides high ratings at all circuit locations
▪ Economical solutions for high fault circuits
▪ 200 kA at 250 VAC, 100 kA at 250 VDC interrupt rating
