Eaton

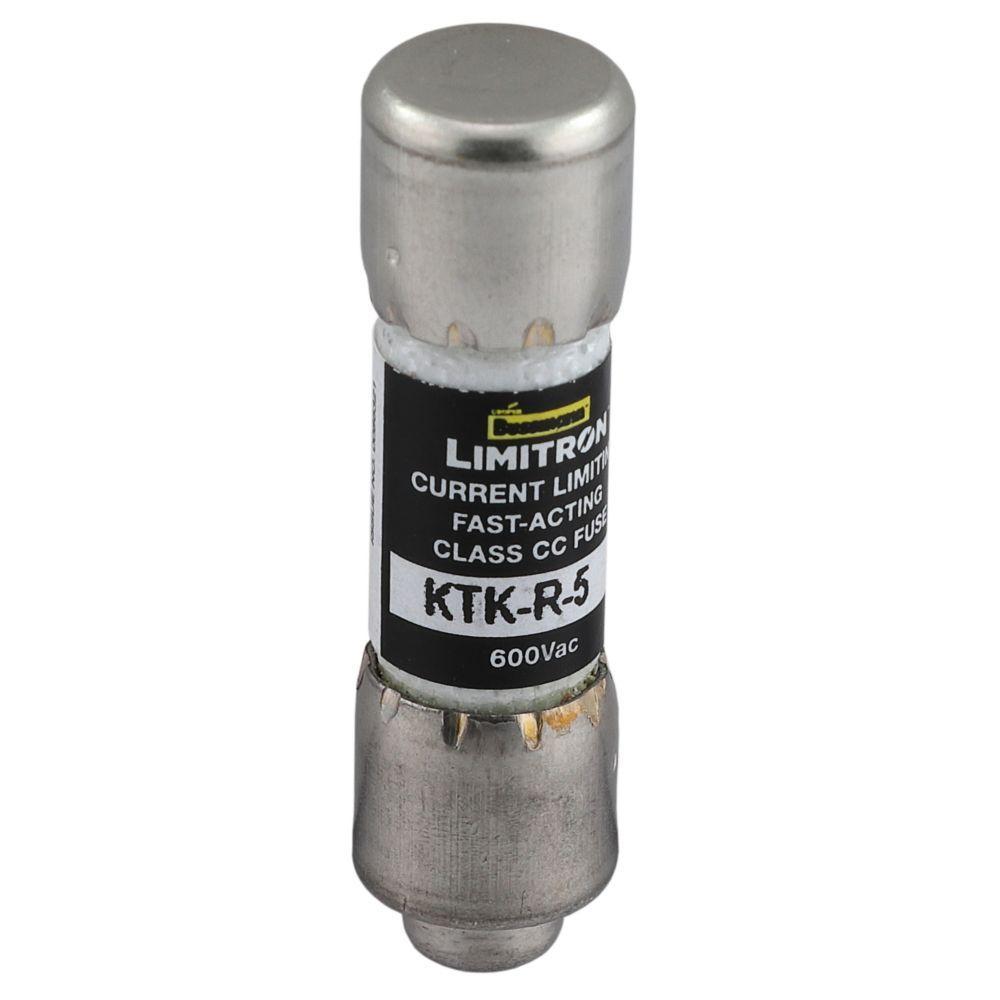

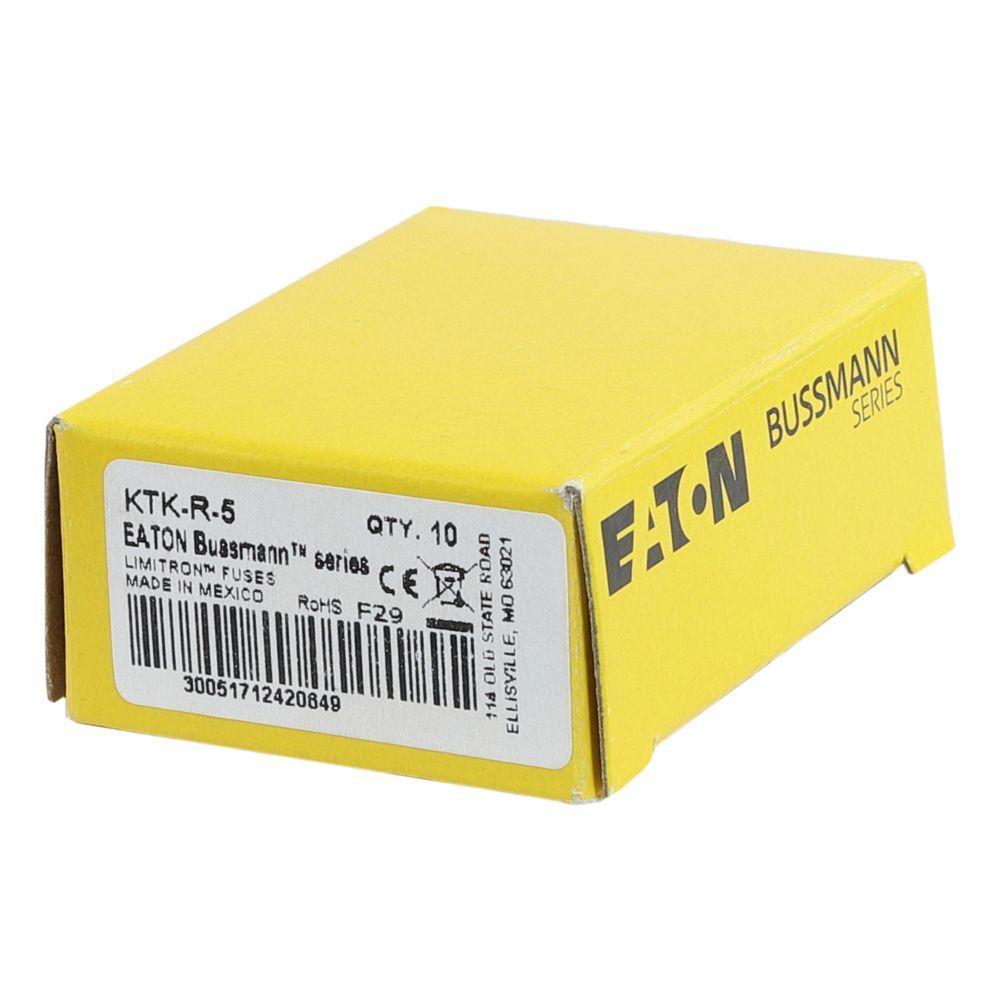

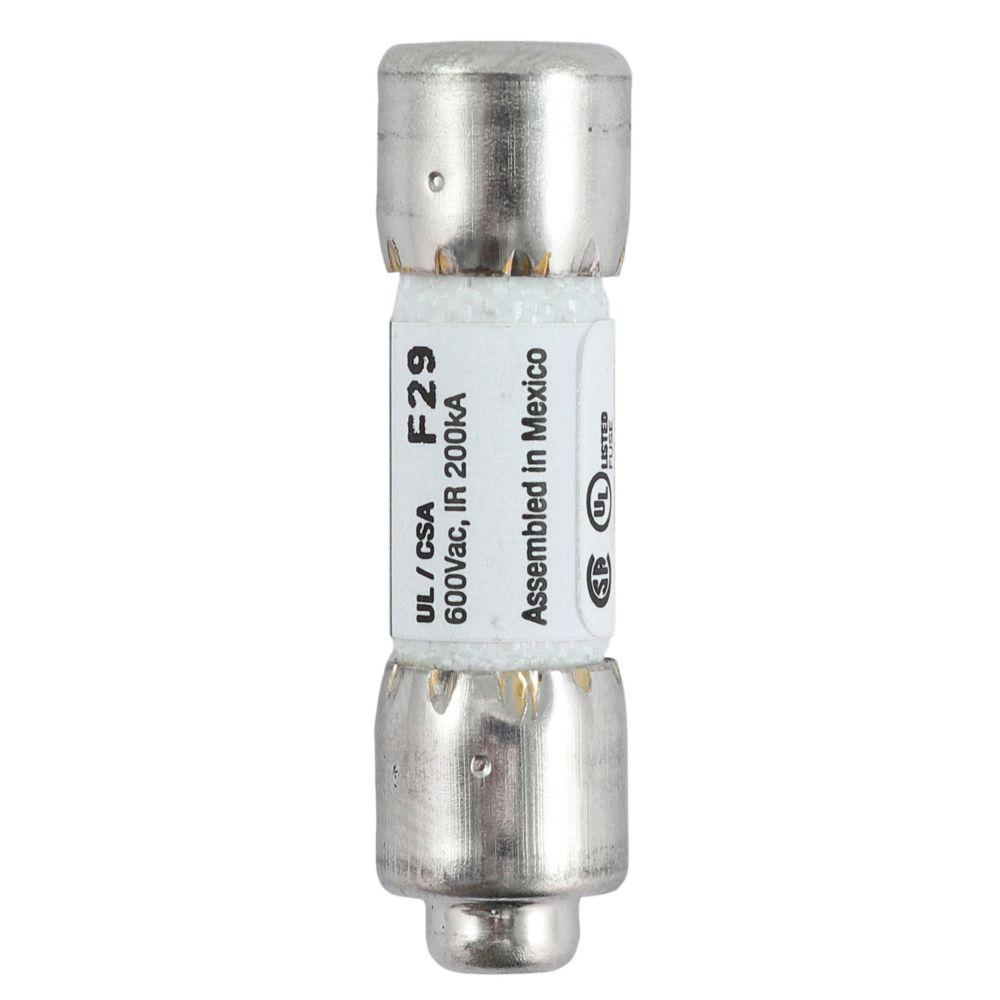

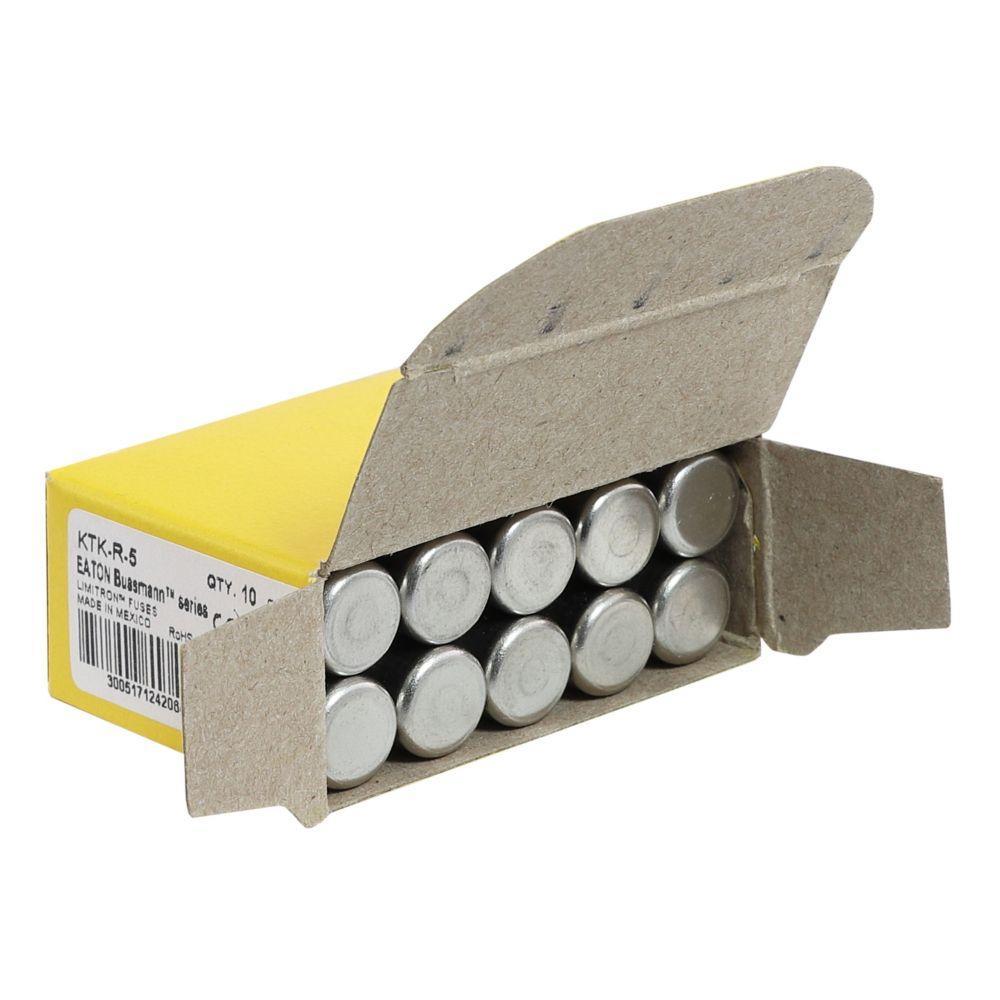

KTK-R-5 BUS FUSE 600V CLASS CC FAST ACTING CC

Mouse over image to zoom, click to enlarge

  • KTK-R-5 BUS FUSE 600V CLASS CC FAST ACTING CC
  • KTK-R-5 BUS FUSE 600V CLASS CC FAST ACTING CC
  • KTK-R-5 BUS FUSE 600V CLASS CC FAST ACTING CC
  • KTK-R-5 BUS FUSE 600V CLASS CC FAST ACTING CC
  • KTK-R-5 BUS FUSE 600V CLASS CC FAST ACTING CC

Description: Bussmann Limitron™ Fuse, Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5 A, 600 V, 200 kA Interrupt, Class: CC, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Manufacturer PN: KTK-R-5

UPC:  05171242064

Kendall Electric Inc PN: 22522

Invoice Description:

KTK-R-5 BUS FUSE 600V CLASS CC FAST ACTING CC


SPEC SHEET

How Can We Make This Page Better?

Bussmann Limitron™ KTK-R-5 Fast Acting Fuse, 5 A, 600 V, 200 kA Interrupt, CC Class, Cylindrical Body

Log In for Pricing and Availability




Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection
Bussmann Limitron™ Fuse, Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5 A, 600 V, 200 kA Interrupt, Class: CC, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Specifications

 Amperage Rating 5 A
 Application Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting Applications, Safety and Security Systems
 Body Size 13/32 in Dia x 1-1/2 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Class CC
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number KTK-R-5
 Material Melamine
 Mounting Type Holder
 PART NUMBER KEYWORDS KTK-R-5 ; KTKR5 ; 7614129 ; 051712420648 ; 51712420648 ; 05171242064 ; 00051712420648 ; 5027590063449
 Rejection Non Rejection Rejection
 Series KTK-R
 Standards/Approvals UL Listed ,CSA Certified,RoHS Compliant,CE Marked
 Terminal Type Ferrule
 Type Fast Acting
 Video Links
 Voltage Rating 600 V

Features

▪ Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
▪ 200 kA VAC rms Symmetrical interrupting rating complies with NEC section 110.9 for todays large capacity systems
▪ Fast acting fuse helps prevent equipment damage caused by short circuit events
▪ Rejection type fuse fits both standard and rejection style holders
▪ Ideal for critical industrial or commercial applications that have specific current limitation requirements
▪ Nickel plated bronze end caps
▪ Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
