Eaton

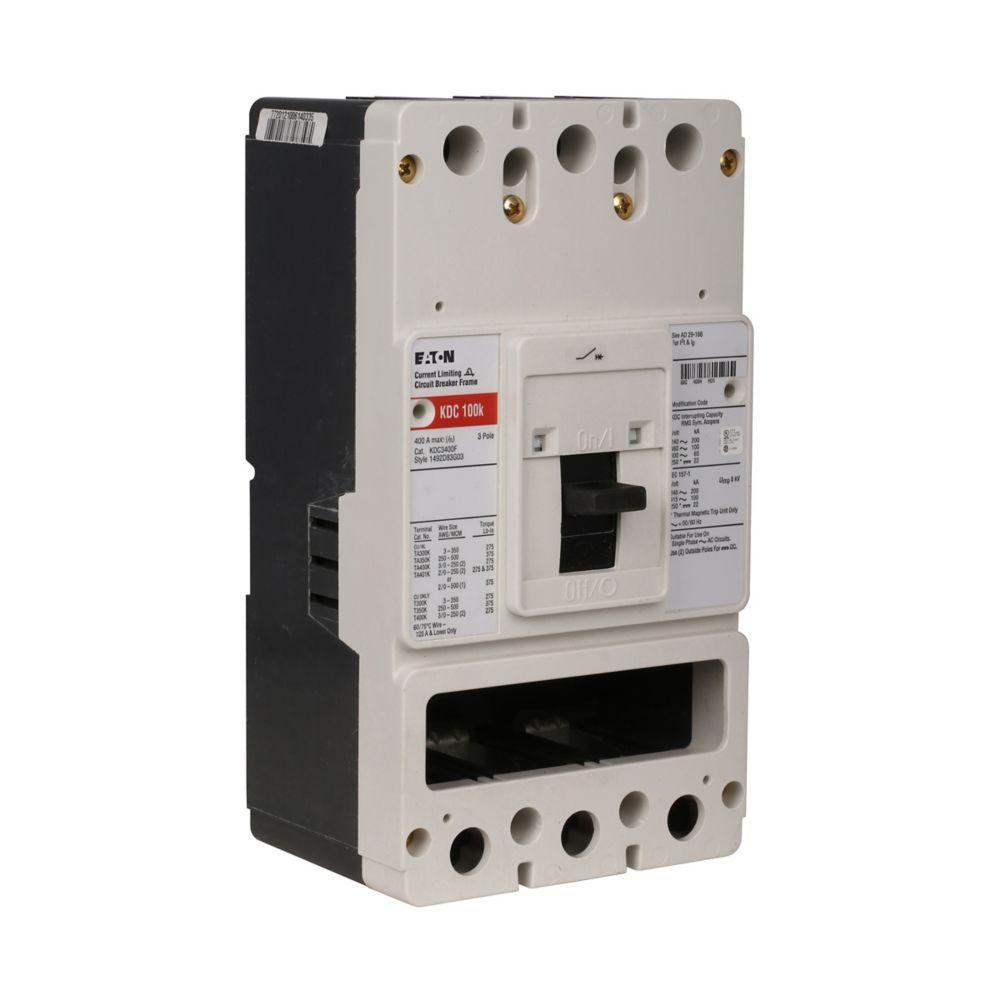

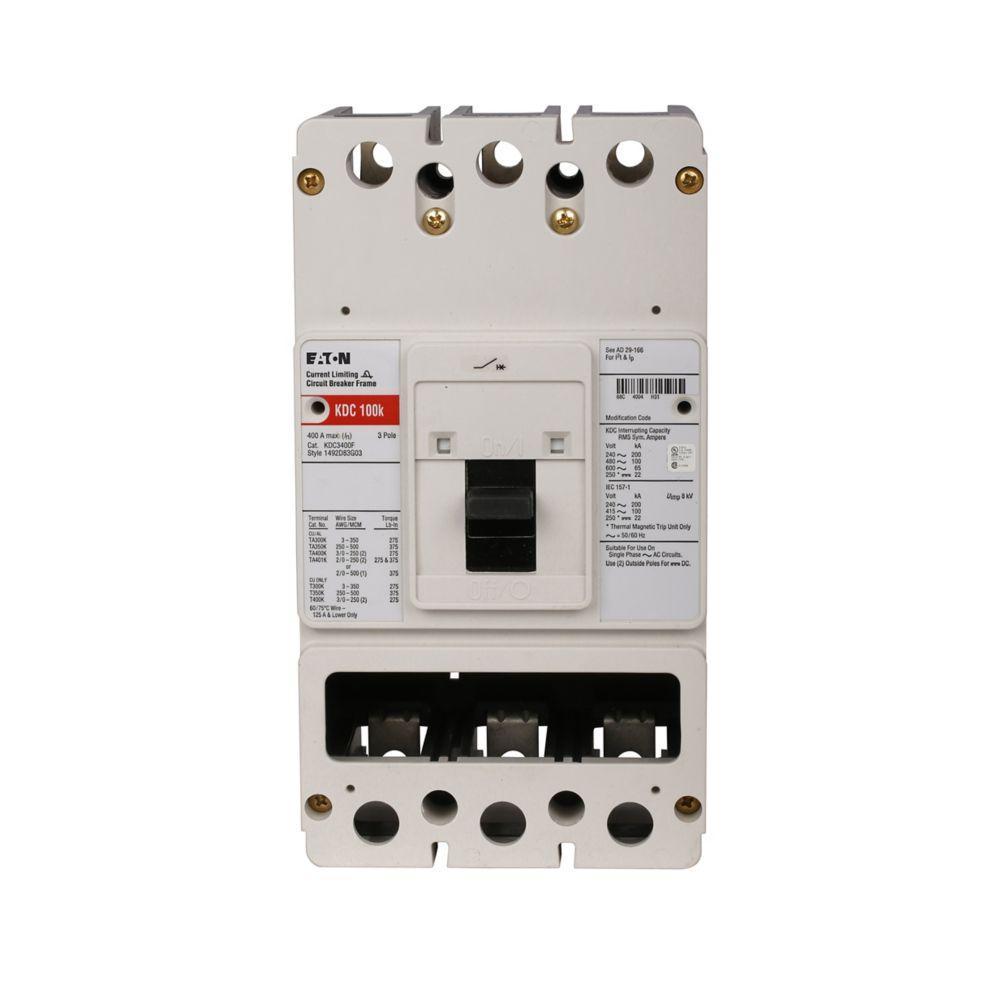

KDC3400F C-H Series C NEMA K-Frame Frame Unit Only 78667961166

Mouse over image to zoom, click to enlarge

  • KDC3400F C-H Series C NEMA K-Frame Frame Unit Only 78667961166
  • KDC3400F C-H Series C NEMA K-Frame Frame Unit Only 78667961166
  • KDC3400F C-H Series C NEMA K-Frame Frame Unit Only 78667961166

Description: EATON Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 400 A, 3 Pole, 200 kAIC at 240 VAC IR, For Use With: C Series Type KDC K Frame Fixed Thermal Magnetic Trip Molded Case Circuit Breaker, Fixed Thermal, Fixed Magnetic Trip Type, 50/60 Hz, 40 deg C Temperature, 4.1 in L x 5.5 in W x 5.5 in H

Manufacturer PN: KDC3400F

UPC:  78667961166

Kendall Electric Inc PN: 2334078

Invoice Description:

KDC3400F C-H Series C NEMA K-Frame Frame Unit Only 78667961166


SPEC SHEET

▸ See All in Breaker Frames


How Can We Make This Page Better?

EATON KDC3400F Molded Case Circuit Breaker Frame With Conduit Box Mounting, 600 V AC/250 V DC, 400 A, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Experience the superior quality of the Eaton Series C Molded Case Circuit Breaker.  The Series C circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 800A.
EATON Molded Case Circuit Breaker Frame, 600 V AC/250 V DC, 400 A, 3 Pole, 200 kAIC at 240 VAC IR, For Use With: C Series Type KDC K Frame Fixed Thermal Magnetic Trip Molded Case Circuit Breaker, Fixed Thermal, Fixed Magnetic Trip Type, 50/60 Hz, 40 deg C Temperature, 4.1 in L x 5.5 in W x 5.5 in H

Specifications

 Amperage Rating 400 A
 Application Electrical Assemblies, Panels, OEMs and Circuit Protection Applications
 Brand Name EATON
 Dimensions 4.1 in L x 5.5 in W x 5.5 in H
 IR Rating 200 kAIC at 240 VAC
 Manufacturer Part Number KDC3400F
 Number of Poles 3
 PART NUMBER KEYWORDS KDC3400F ; 7433234 ; 786679611661 ; 78667961166 ; 00786679611661
 Specifications Fixed Thermal, Fixed Magnetic Trip Type, 50/60 Hz, 40 deg C Temperature
 Standards/Approvals UL Listed
 Suitable For Use With C Series Type KDC K Frame Fixed Thermal Magnetic Trip Molded Case Circuit Breaker
 Video Links
 Voltage Rating 600 V AC/250 V DC
