ABB

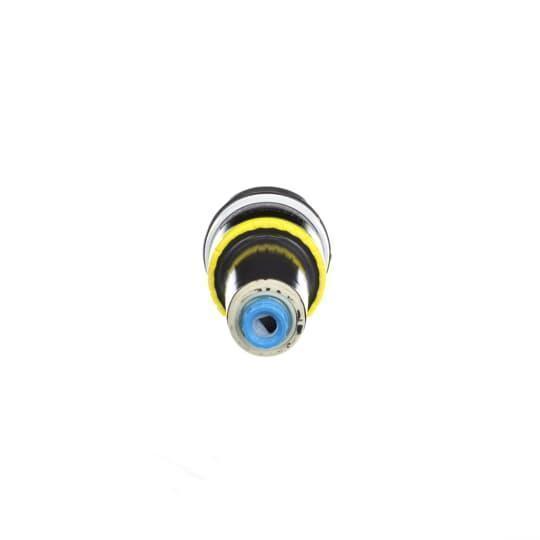

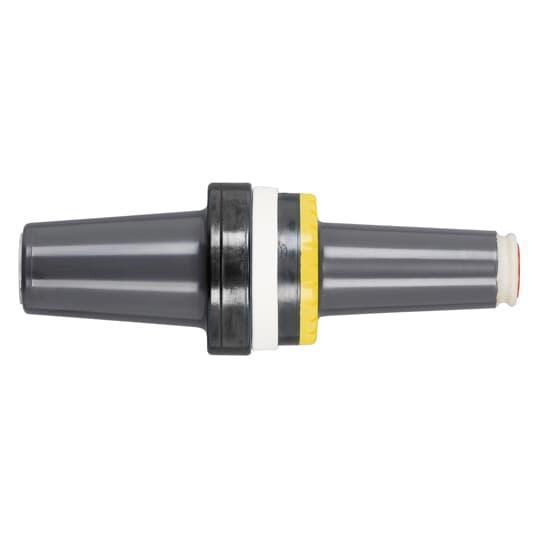

  • K650ETP ELBOW TAP PLUG-25KV
  • K650ETP ELBOW TAP PLUG-25KV
  • K650ETP ELBOW TAP PLUG-25KV
  • K650ETP ELBOW TAP PLUG-25KV

Description: Elastimold® Loadbreak Elbow Tap Plug, Series: 600, 25 kV, 600 A, For Use With: Cable and Network Circuit, 90 deg C, EPDM Rubber, 3 in Dia x 9.86 in L

Manufacturer PN: K650ETP

UPC:  78378663061

Kendall Electric Inc PN: 4413791

Invoice Description:

K650ETP ELBOW TAP PLUG-25KV


SPEC SHEET

▸ See All in Loadbreak Plugs


How Can We Make This Page Better?

Elastimold® K650ETP 600 Loadbreak Elbow Tap Plug, 25 kV, 600 A, For Use With Cable and Network Circuit, 90 deg C, EPDM Rubber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

600 series dead break elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits. Designs accommodate large conductors and feature bolted connections and dead front modular construction for maximum reliability, performance and versatility. De-energized connectors can be quickly and easily connected and disconnected using standard hand tools and equipment in accordance with accepted operating practices. Optional accessories allow visible external separation, bypass, isolation, dead ending, grounding and testing as well as adding taps, surge arresters and circuit protection.
Elastimold® Loadbreak Elbow Tap Plug, Series: 600, 25 kV, 600 A, For Use With: Cable and Network Circuit, 90 deg C, EPDM Rubber, 3 in Dia x 9.86 in L

Specifications

 Amperage Rating 600 A
 Application For use to connect equipment and cable on primary feeder and network circuits
 Brand Name Elastimold®
 Dimensions 3 in Dia x 9.86 in L
 Manufacturer Part Number K650ETP
 Material EPDM Rubber
 Series 600
 Specifications 90 deg C
 Standards/Approvals ANSI Specified|BAA Compliant|IEEE 386
 Suitable For Use With Cable and Network Circuit
 Voltage Rating 25 kV

Features

▪ Use 600ATM assembly tool
