ABB
  • K650CP T-B PLUG CONN 600A DB 15/25KV
  • K650CP T-B PLUG CONN 600A DB 15/25KV
  • K650CP T-B PLUG CONN 600A DB 15/25KV
  • K650CP T-B PLUG CONN 600A DB 15/25KV
  • K650CP T-B PLUG CONN 600A DB 15/25KV

Description: Elastimold® Deadbreak Connecting Plug, Series: 600, 15/25 kV, 600 A, For Use With: Cable and Network Circuit, EPDM Rubber, 3 in Dia x 8-1/4 in L

Manufacturer PN: K650CP

UPC:  78378664033

Kendall Electric Inc PN: 4376404

Invoice Description:

K650CP T-B PLUG CONN 600A DB 15/25KV


SPEC SHEET

▸ See All in Deadbreak Accessories & Parts


How Can We Make This Page Better?

Elastimold® K650CP 600 Deadbreak Connecting Plug, 15/25 kV, 600 A, For Use With Cable and Network Circuit, EPDM Rubber

Log In for Pricing and Availability




Description

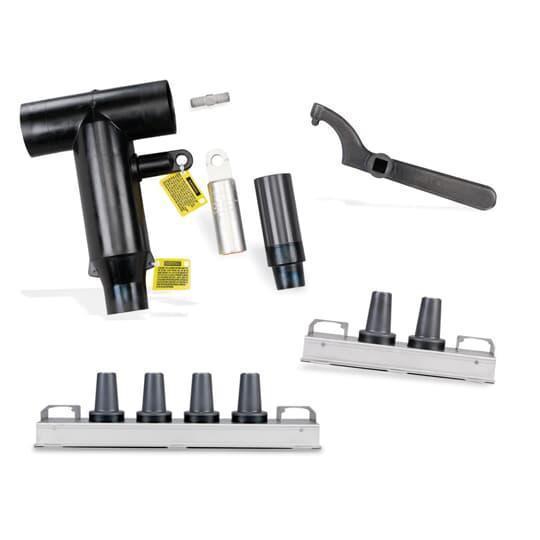

600 series deadbreak elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits. Designs accommodate large conductors and feature bolted connections and deadfront modular construction for maximum reliability, performance and versatility. De-energized connectors can be quickly and easily connected and disconnected using standard hand tools and equipment in accordance with accepted operating practices. Optional accessories allow visible external separation, bypass, isolation, dead ending, grounding and testing as well as adding taps, surge arresters and circuit protection.
Elastimold® Deadbreak Connecting Plug, Series: 600, 15/25 kV, 600 A, For Use With: Cable and Network Circuit, EPDM Rubber, 3 in Dia x 8-1/4 in L

Specifications

 Amperage Rating 600 A
 Application For use to attach and connect two or more Elastimold K655LR/K656LR 600 A connectors
 Brand Name Elastimold®
 Dimensions 3 in Dia x 8-1/4 in L
 Manufacturer Part Number K650CP
 Material EPDM Rubber
 Series 600
 Standards/Approvals ANSI Specified|IEEE 386
 Suitable For Use With Cable and Network Circuit
 Voltage Rating 15/25 kV

Features

▪ Provisions for spanner wrench installation
▪ Allows de-energized connection of 2 600 A connectors
▪ Units use a 600SW spanner wrench for installation
