K4977-INT MILBANK 100A CONN &SLIDE (pack of 3)

Mouse over image to zoom, click to enlarge

  • K4977-INT MILBANK 100A CONN &SLIDE (pack of 3)
  • K4977-INT MILBANK 100A CONN &SLIDE (pack of 3)
  • K4977-INT MILBANK 100A CONN &SLIDE (pack of 3)

Description: Milbank® Tap Connector Set, Specifications: 300 V AC Voltage

Manufacturer PN: K4977-INT

UPC:  78457227436

Kendall Electric Inc PN: 2782034

Invoice Description:

K4977-INT MILBANK 100A CONN &SLIDE (pack of 3)


SPEC SHEET

▸ See All in Metering Miscellaneous Accessories


How Can We Make This Page Better?

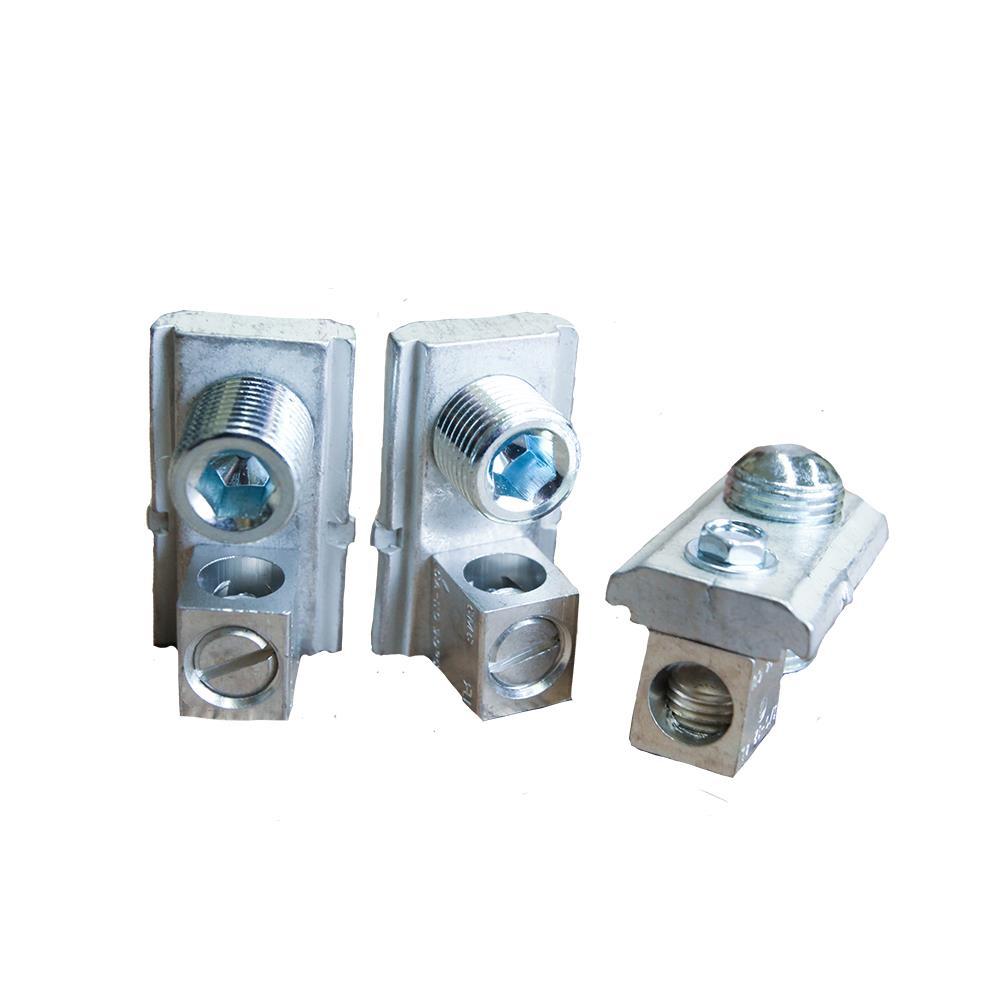

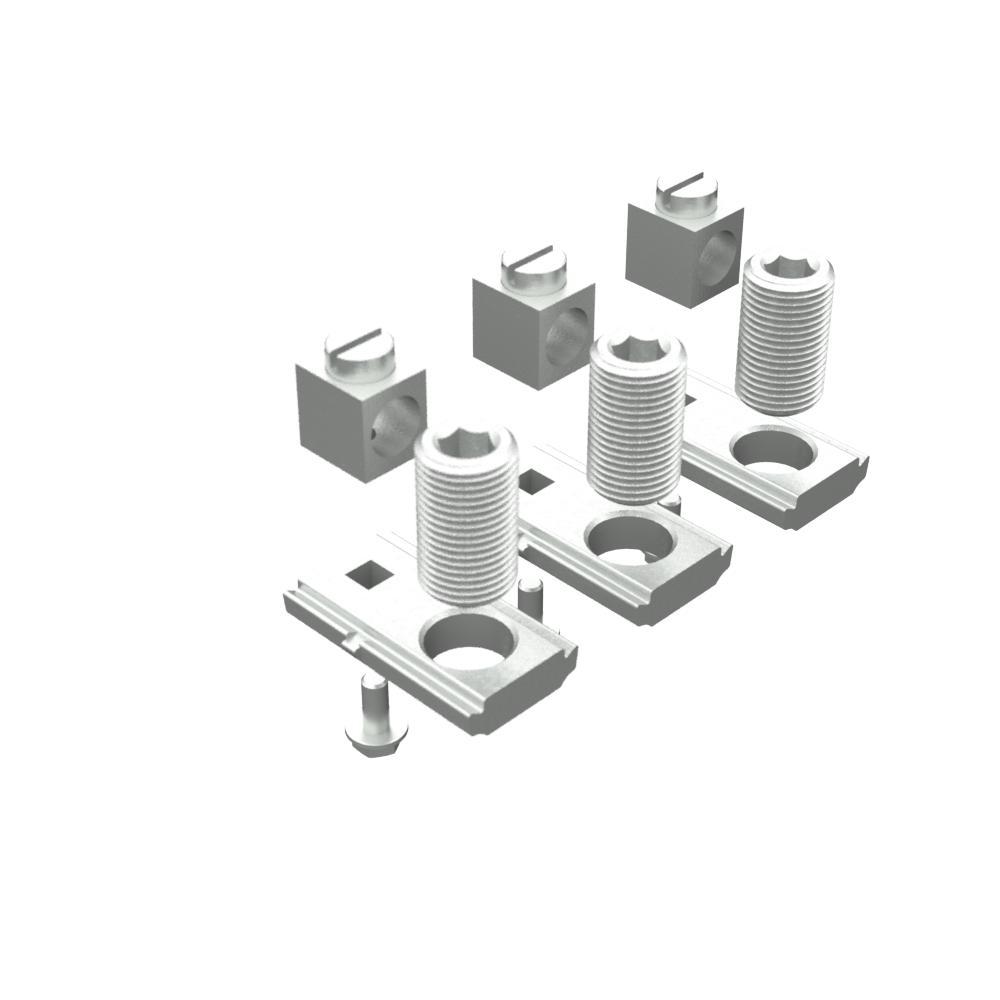

Milbank® K4977-INT Tap Connector Set With Internal Hex Set Screw, 300 V AC Voltage

Log In for Pricing and Availability




Description

Milbank® Tap Connector Set, Specifications: 300 V AC Voltage

Specifications

 Application For wire termination
 Brand Name Milbank
 Includes (3) Tap Connector
 Manufacturer Part Number K4977-INT
 Specifications 300 V AC Voltage
 Standards/Approvals PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Features

▪ Connectors designed for either line-side or load-side installation
▪ Recommended for load-side 100 A feeds to outdoor lighting, water well pumps, hot tubs, outbuildings, whole house surge suppressors and swimming pools
▪ Replaces the existing slide-in nut assembly on Milbank 200 A sockets and allows for up to 100 A tap connection in addition to the 6 AWG to 350 kcmil connectors
▪ Ideal for line-side connection when incorporating renewable energy net metering that utilizes two meters
▪ 200 A amperage rating
▪ 6 AWG to 350 kcmil wire size/12 to 1/0 AWG tap size
