Hubbell

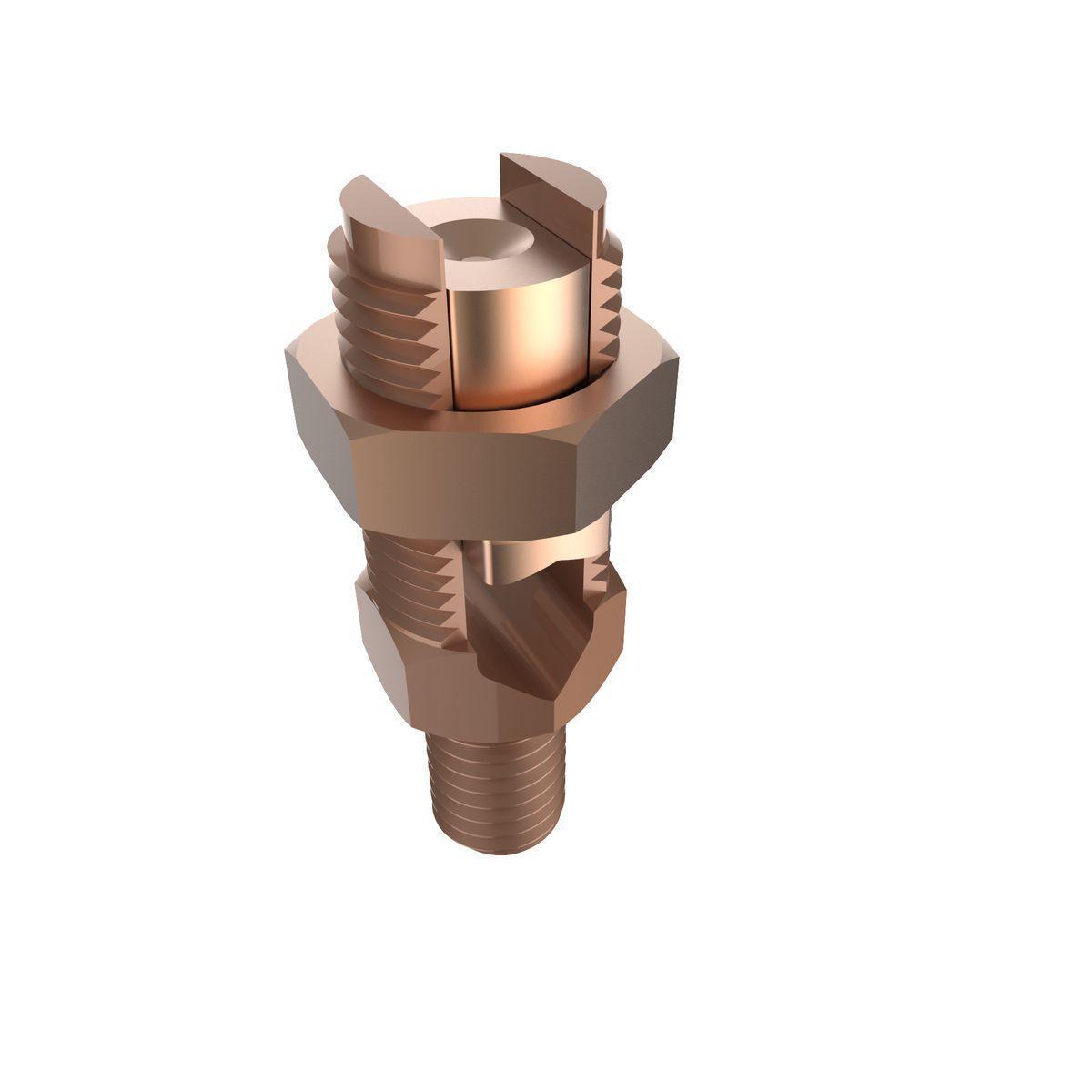

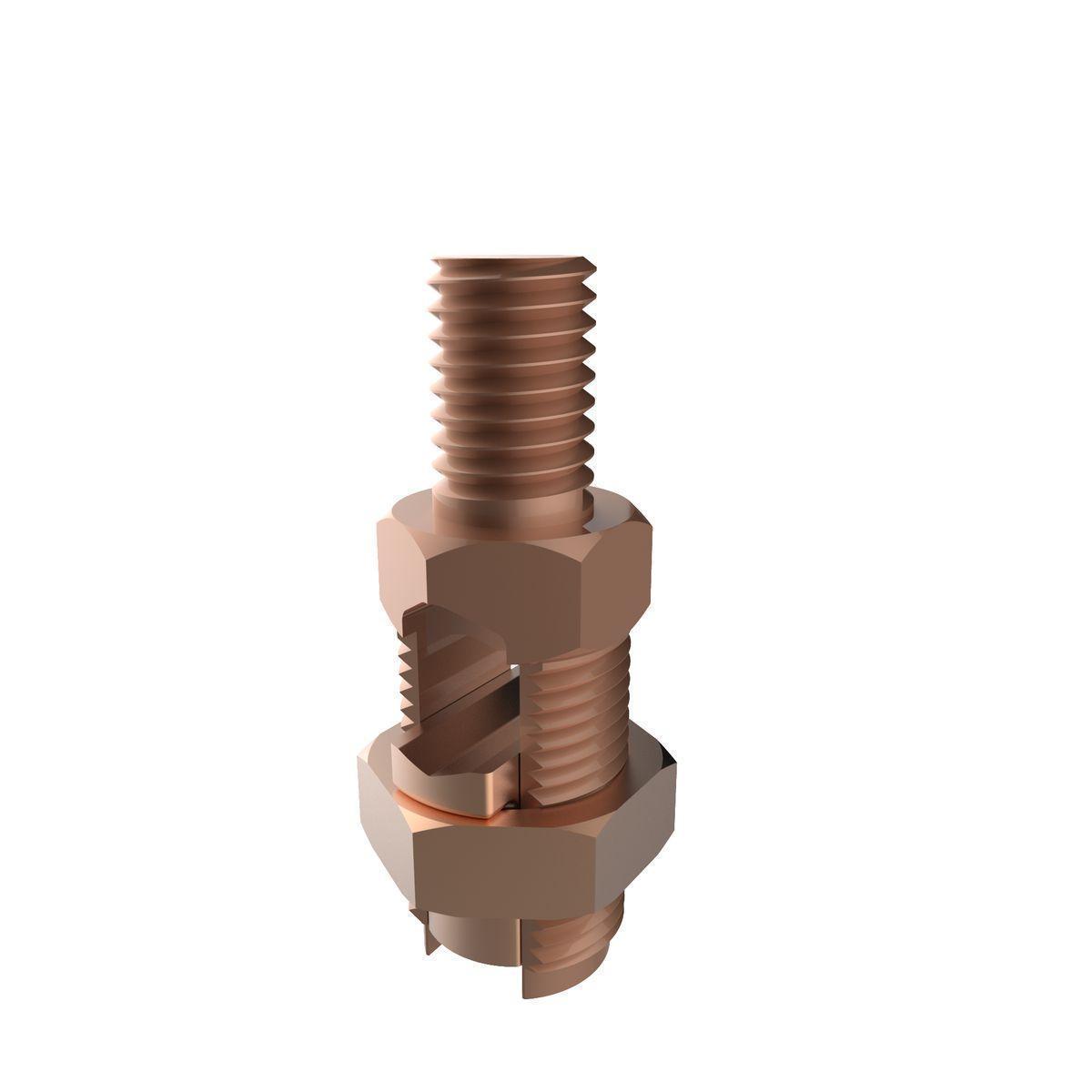

K2C23 BURNDY 2STR SPLIT BOLT CONN

Mouse over image to zoom, click to enlarge

  • K2C23 BURNDY 2STR SPLIT BOLT CONN
  • K2C23 BURNDY 2STR SPLIT BOLT CONN
  • K2C23 BURNDY 2STR SPLIT BOLT CONN

Description: BURNDY® SERVIT® POST™ Mechanical Grounding Connector, Series: K2C, 10 to 1 AWG Conductor, Cable to Flat, Unplated, Bronze, 0.469 in L x 0.62 in W x 1.05 in H

Manufacturer PN: K2C23

UPC:  78181025720

Kendall Electric Inc PN: 2554302

Invoice Description:

K2C23 BURNDY 2STR SPLIT BOLT CONN


SPEC SHEET

▸ See All in Grounding-Bonding Post, Bar-Flat Surface


How Can We Make This Page Better?

BURNDY® SERVIT® POST™ K2C23 Mechanical Grounding Connector, 10 to 1 AWG Conductor, Unplated

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Mechanical Grounding Connector, Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol), 3/8" Stud,cross base flat :.62.
BURNDY® SERVIT® POST™ Mechanical Grounding Connector, Series: K2C, 10 to 1 AWG Conductor, Cable to Flat, Unplated, Bronze, 0.469 in L x 0.62 in W x 1.05 in H

Specifications

 Application For used to ground one or two copper cables to steel structures, fence posts, transformers, tap one or two cables from bus bar and direct burial
 Brand Name BURNDY
 Color Bronze
 Conductor Size 10 to 1 AWG
 Connection Type Cable to Flat
 Dimensions 0.469 in L x 0.62 in W x 1.05 in H
 Finish Unplated
 Manufacturer Part Number K2C23
 Series K2C
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features

▪ 1-Wrench installation
