Eaton

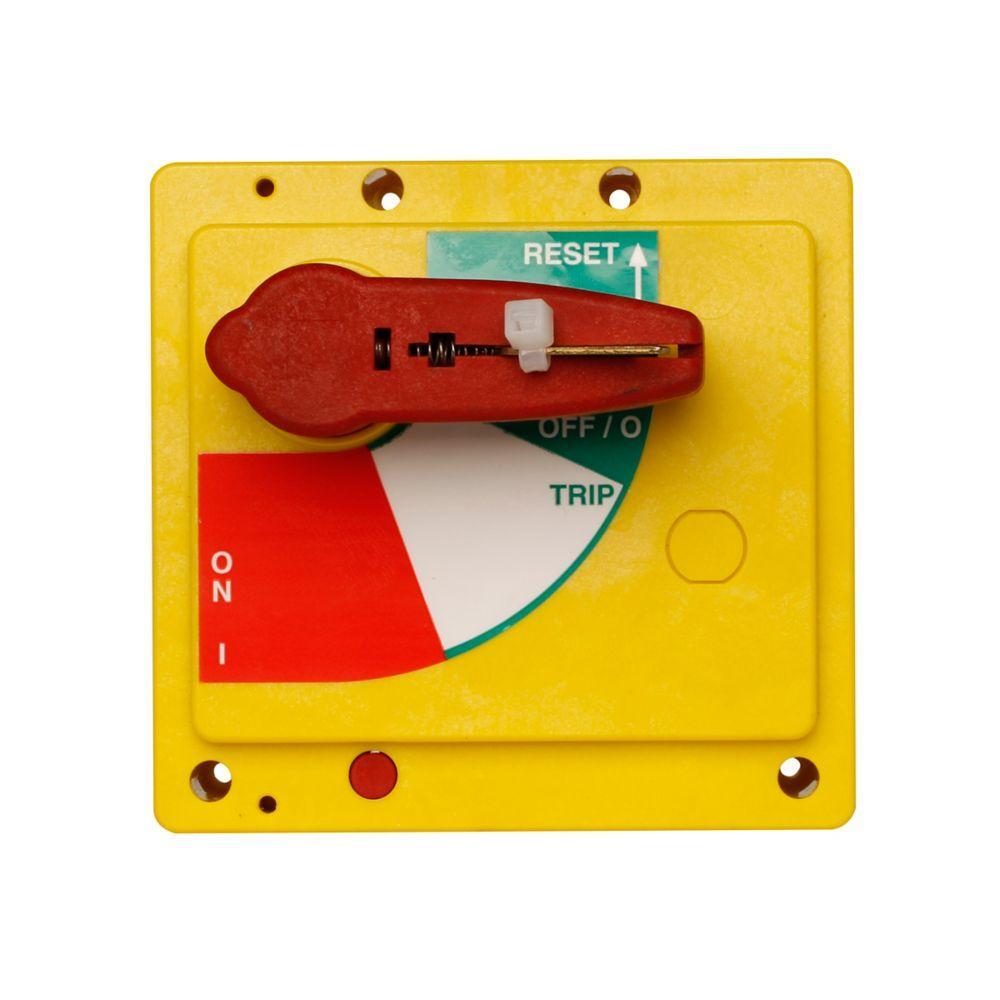

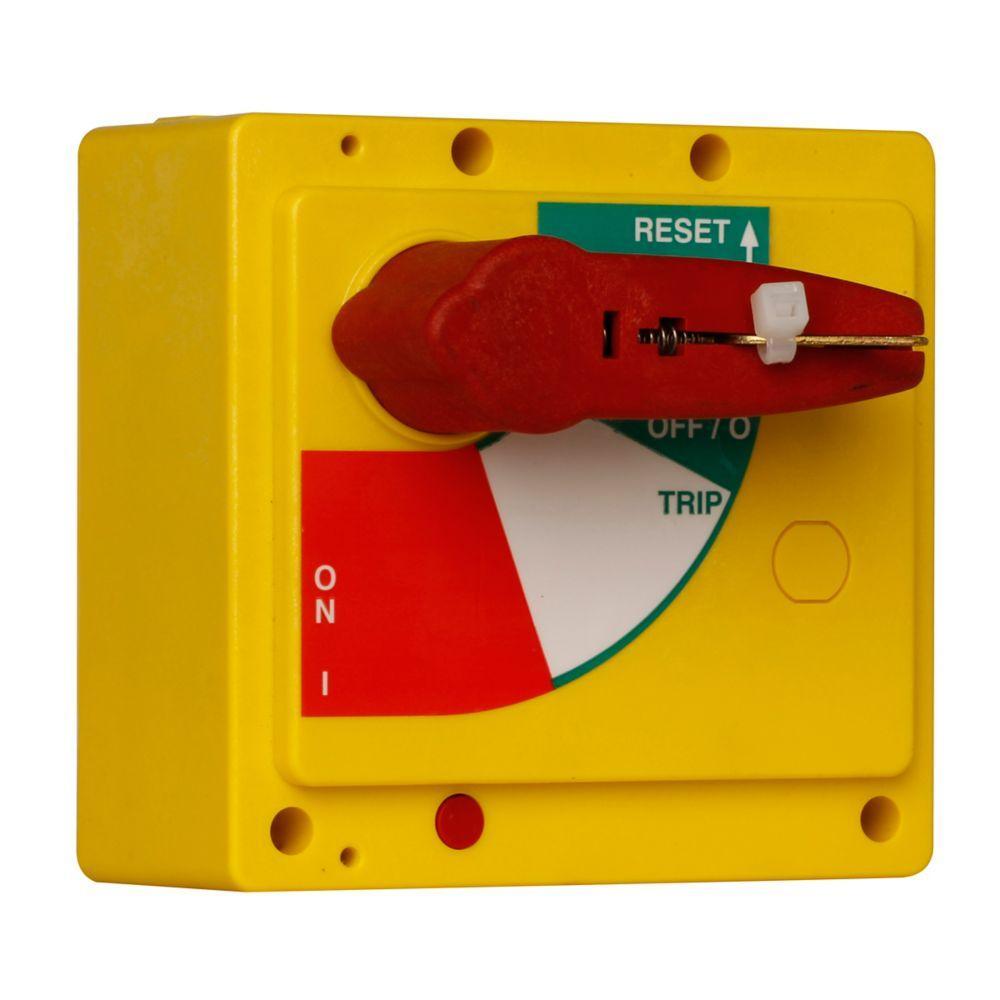

JHMCCR C-H JG Rotary Close Couple Handle Mech - Red/ Yellowe 78211352761

Mouse over image to zoom, click to enlarge

  • JHMCCR C-H JG Rotary Close Couple Handle Mech - Red/ Yellowe 78211352761
  • JHMCCR C-H JG Rotary Close Couple Handle Mech - Red/ Yellowe 78211352761
  • JHMCCR C-H JG Rotary Close Couple Handle Mech - Red/ Yellowe 78211352761

Description: EATON Handle Mechanism, Direct/Universal Handle/Operation, For Use With: G Series JG-Frame Molded Case Circuit Breaker, Red, 6-1/2 in L x 4 in W x 4-1/2 in H

Manufacturer PN: JHMCCR

UPC:  78211352761

Kendall Electric Inc PN: 2277049

Invoice Description:

JHMCCR C-H JG Rotary Close Couple Handle Mech - Red/ Yellowe 78211352761


SPEC SHEET

▸ See All in Disconnect Operating Mechanisms


How Can We Make This Page Better?

EATON JHMCCR Handle Mechanism, Direct/Universal Handle/Operation, For Use With G Series JG-Frame Molded Case Circuit Breaker

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Direct (close coupled) handle mechanisms mount directly to the circuit breaker. They are used in shallow enclosures where the standard variable depth through the door type mechanism is not practical or cannot be used. They are typically for applications where high volume, standardized enclosures are being fabricated. The universal direct handle mechanism is designed exclusively for the new Cutler-Hammer E125 and J250 circuit breakers. It is available as standard with a door interlock to prevent opening the enclosure while the circuit breaker is in the on position. It is also available without a door interlock.
EATON Handle Mechanism, Direct/Universal Handle/Operation, For Use With: G Series JG-Frame Molded Case Circuit Breaker, Red, 6-1/2 in L x 4 in W x 4-1/2 in H

Specifications

 Application Circuit Protection Applications
 Brand Name EATON
 Dimensions 6-1/2 in L x 4 in W x 4-1/2 in H
 Handle Color Red
 Handle Operation Direct/Universal
 Manufacturer Part Number JHMCCR
 PART NUMBER KEYWORDS JHMCCR ; 7341568 ; 782113527611 ; 78211352761 ; 00782113527611
 Standards/Approvals Contact Manufacturer
 Suitable For Use With G Series JG-Frame Molded Case Circuit Breaker
 Type Universal
 Video Links

Features

▪ Without interlock
