Eaton

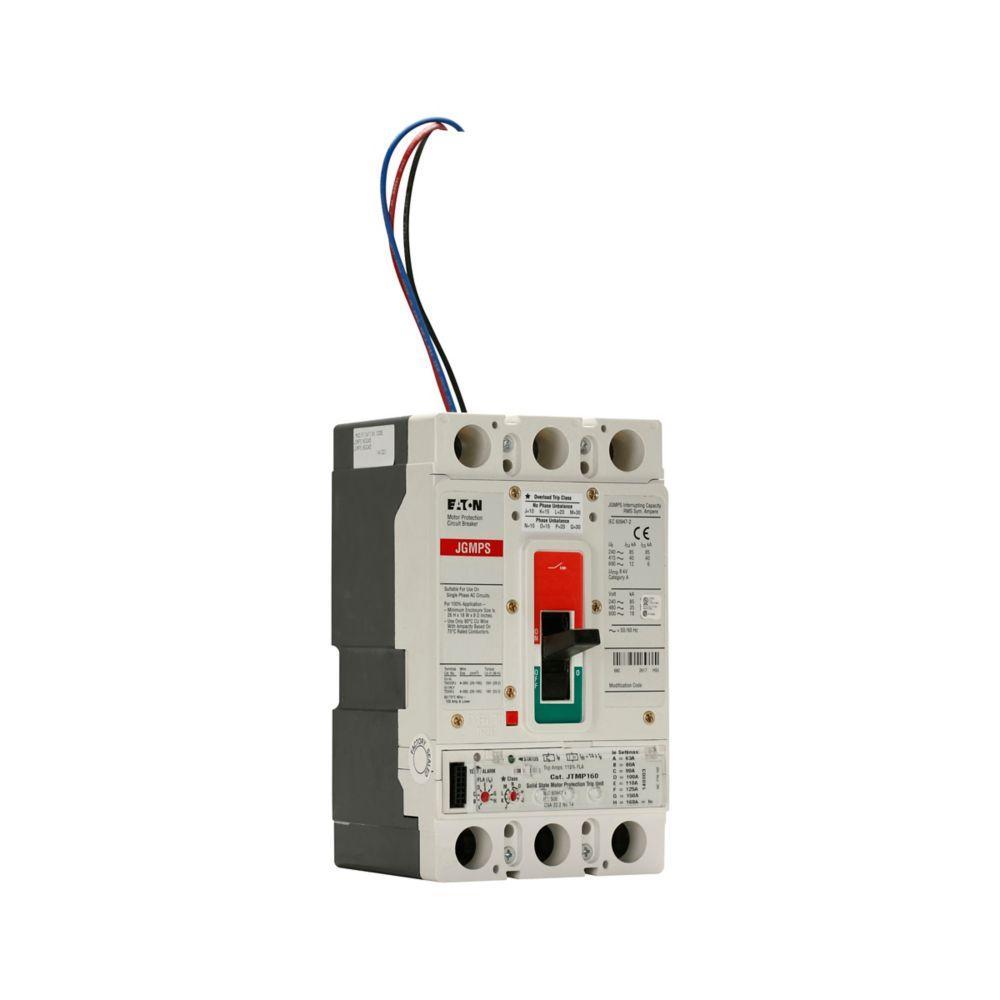

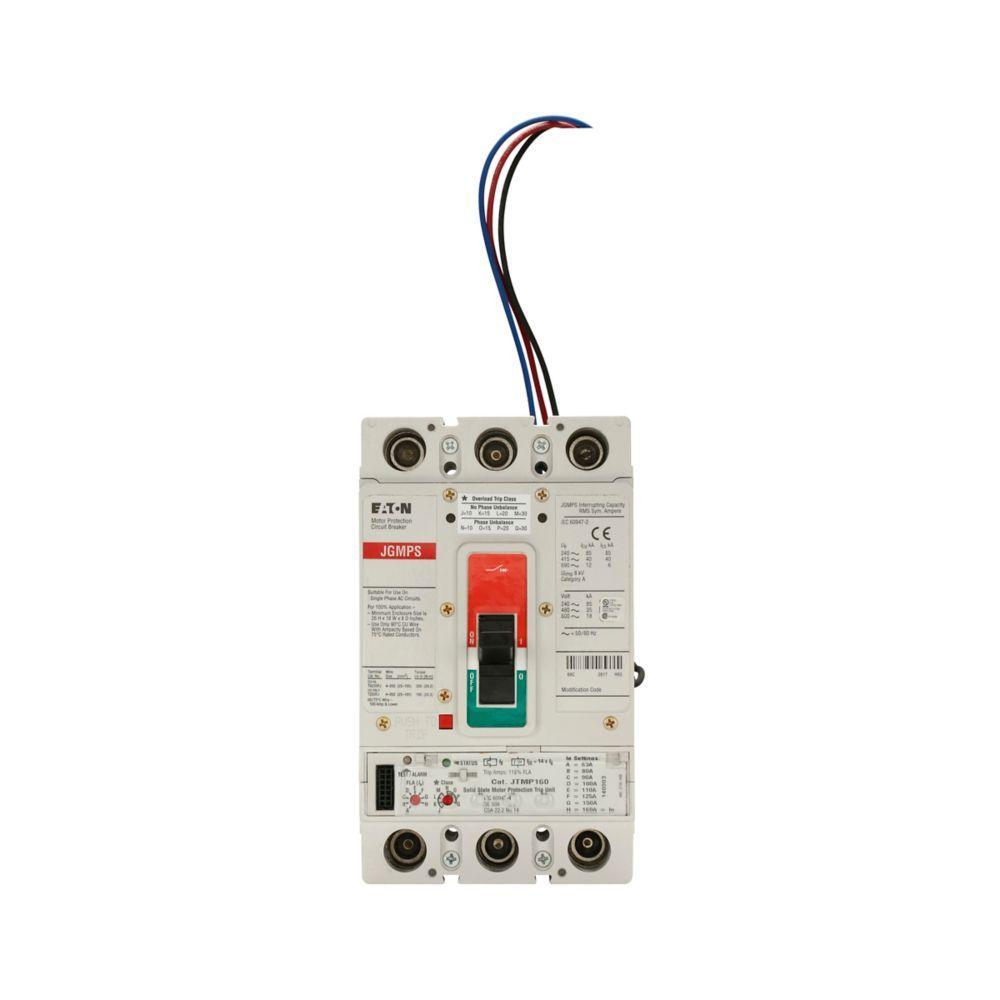

JGMPS160GA5 CH 160A 3P MOTOR PROTECTOR CIRCUIT BKR W/ AUX

Mouse over image to zoom, click to enlarge

  • JGMPS160GA5 CH 160A 3P MOTOR PROTECTOR CIRCUIT BKR W/ AUX
  • JGMPS160GA5 CH 160A 3P MOTOR PROTECTOR CIRCUIT BKR W/ AUX
  • JGMPS160GA5 CH 160A 3P MOTOR PROTECTOR CIRCUIT BKR W/ AUX

Description: EATON Motor Protection Circuit Breaker, Series: G Series, 600 VAC, 160 A, 50/60 Hz, 35 kA Interrupt, JG Frame, Fixed Thermal/Fixed Magnetic Trip, 3 Pole, Line/Load, 1A-1B Auxiliary, 9-1/2 x 5-1/2 x 5-1/2 in

Manufacturer PN: JGMPS160GA5

UPC:  78668592542

Kendall Electric Inc PN: 4402502

Invoice Description:

JGMPS160GA5 CH 160A 3P MOTOR PROTECTOR CIRCUIT BKR W/ AUX


SPEC SHEET

▸ See All in Motor Protection Circuit Breakers


How Can We Make This Page Better?

EATON JGMPS160GA5 G Series Motor Protection Circuit Breaker, 600 VAC, 160 A, 35 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Eaton Series G Molded Case Circuit Breaker provides users with unparalleled performance and convenience. A patented contact design features high-speed “blow-open” action, resulting in superior circuit breaker performance. This globally-rated platform offers users high interruption ratings in a compact footprint with ease of in-field configuration applicable to a wide variety of industry and regional requirements. Choose from a selection of thermal magnetic and electronic trip units, available in current ratings that range from 15A to  2500A with voltages up to 690 VAC.
EATON Motor Protection Circuit Breaker, Series: G Series, 600 VAC, 160 A, 50/60 Hz, 35 kA Interrupt, JG Frame, Fixed Thermal/Fixed Magnetic Trip, 3 Pole, Line/Load, 1A-1B Auxiliary, 9-1/2 x 5-1/2 x 5-1/2 in

Specifications

 Amperage Rating 160 A
 Application For circuit protection and contactor to eliminate need for overload relay and still create manual motor control
 Auxiliary Contact Rating 1A-1B
 Brand Name EATON
 Connection Type Line/Load
 Dimensions 9-1/2 x 5-1/2 x 5-1/2 in
 Frame JG
 Frequency Rating 50/60 Hz
 Manufacturer Part Number JGMPS160GA5
 Number of Poles 3
 Series G Series
 Standards/Approvals CSA C22.2|IEC 60947-2|UL 489/508
 Video Links
 Voltage Rating 600 VAC

Features

▪ Simplified design eliminates the need for motor overload relay found in the traditional 3-component starter assembly, which frees up panel space and reduces heat generation
▪ Provides ph loss and ph unbalance protection to prevent severe equipment damage that can occur with a single phasing condition
▪ Thermal memory prevents immediate restart after trip to allow the motor to cool down
▪ High load alarm LED status indicator provides early warning of potential trip condition
