ABB

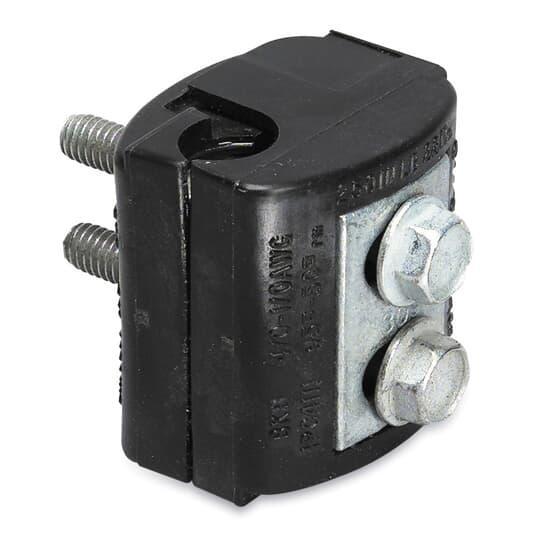

IPC3541 ITB 350MCM TO 4/0 AL9CU INSUL. PIERCING TAP

Mouse over image to zoom, click to enlarge

  • IPC3541 ITB 350MCM TO 4/0 AL9CU INSUL. PIERCING TAP
  • IPC3541 ITB 350MCM TO 4/0 AL9CU INSUL. PIERCING TAP
  • IPC3541 ITB 350MCM TO 4/0 AL9CU INSUL. PIERCING TAP
  • IPC3541 ITB 350MCM TO 4/0 AL9CU INSUL. PIERCING TAP

Description: Blackburn®, IPC3541, Insulation Piercing Connector, Type IPC, Series: IPC, Aluminum/Copper Conductor, 1/0 to 4/0 AWG Conductor, 300 V AC, Specifications: 1/0 to 4/0 AWG, 95 to 6 sq-mm Tap/Secondary Conductor, 90 deg C, TiN Coated, Black, 2-5/8 in L x 2-3/4 in W Dimensions

Manufacturer PN: IPC3541

UPC:  78378633115

Kendall Electric Inc PN: 38993

Invoice Description:

IPC3541 ITB 350MCM TO 4/0 AL9CU INSUL. PIERCING TAP


SPEC SHEET

▸ See All in Piercing Insulated Connectors


How Can We Make This Page Better?

Blackburn® IPC3541 IPC Type IPC Insulation Piercing Connector, 1/0 to 4/0 AWG Conductor Aluminum/Copper Conductor

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Blackburn®, IPC3541, Insulation Piercing Connector, Type IPC, Series: IPC, Aluminum/Copper Conductor, 1/0 to 4/0 AWG Conductor, 300 V AC, Specifications: 1/0 to 4/0 AWG, 95 to 6 sq-mm Tap/Secondary Conductor, 90 deg C, TiN Coated, Black, 2-5/8 in L x 2-3/4 in W Dimensions

Specifications

 Application For copper-to-copper, copper to aluminum and aluminum to aluminum applications
 Brand Name Blackburn
 Color Black
 Conductor Size 1/0 to 4/0 AWG
 Conductor Type Aluminum/Copper
 Dimensions 2-5/8 in L x 2-3/4 in W
 Finish TiN Coated
 Manufacturer Part Number IPC3541
 Material Aluminum
 PART NUMBER KEYWORDS IPC3541 ; 7TAH006420R0031 ; 10733617 ; 783786331154 ; 78378633115 ; 00783786331154 ; 5415022505726
 Series IPC
 Specifications 1/0 to 4/0 AWG, 95 to 6 sq-mm Tap/Secondary Conductor
 Standards/Approvals CSA Certified|UL 486A|UL 486B File No. E9809
 Temperature Rating 90 deg C
 Type Type IPC
 Voltage Rating 300 V AC

Features

▪ Performs as splice or tab for non-tension applications up to 600 VAC, depending on size of connector
▪ Eliminate need for conductor insulation stripping
▪ Self-insulated for hot line applications
▪ No taping required after installation
▪ For use on insulated conductors only
▪ 1-mounting hole
▪ 4/0 AWG to 350 kcmil, 185 to 95 sq-mm conductor
▪ 72/pack
