3M

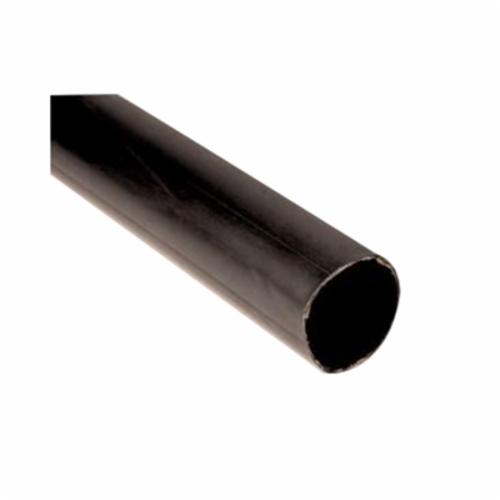

IMCSN-1300-25'-BLACK-REEL 1.3 3:1 MEDIUM WALL 25' BLACK N ADHESIVE 1 REEL

Mouse over image to zoom, click to enlarge

  • IMCSN-1300-25'-BLACK-REEL 1.3 3:1 MEDIUM WALL 25' BLACK N ADHESIVE 1 REEL
  • IMCSN-1300-25'-BLACK-REEL 1.3 3:1 MEDIUM WALL 25' BLACK N ADHESIVE 1 REEL

Description: 3M™, 7000031509, Heat Shrink Cable Sleeve, Adhesive Lined Split-Resistant, Series: IMCSN, 25 ft Length, 1 to 4/0 AWG Conductor, 1.3 in Diameter Expanded Insulation, 0.43 in Recovered Insulation Diameter, 3:1 Shrink Ratio, 1200 psi Tensile Strength, 1 kV AC, 0.99 to 1.25 Specific Gravity, Flammability: 1, 200 V/mil Dielectric Strength, Black

Manufacturer PN: IM1.300BK25'

UPC:  05113503484

Kendall Electric Inc PN: 4360260

Invoice Description:

IMCSN-1300-25'-BLACK-REEL 1.3 3:1 MEDIUM WALL 25' BLACK N ADHESIVE 1 REEL


SPEC SHEET

▸ See All in Shrink-On Tubing Repair Sleeves


How Can We Make This Page Better?

3M™ 7000031509 IMCSN Adhesive Lined Split-Resistant Heat Shrink Cable Sleeve, 25 ft L, 1 to 4/0 AWG Conductor, 1.3 in Dia Expanded Insulation, 0.43 in Dia Recovered Insulation

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

3M™ Heat Shrink Cable Sleeve IMCSN is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. It features a polyolefin construction that provides moisture seal protection.
3M™, 7000031509, Heat Shrink Cable Sleeve, Adhesive Lined Split-Resistant, Series: IMCSN, 25 ft Length, 1 to 4/0 AWG Conductor, 1.3 in Diameter Expanded Insulation, 0.43 in Recovered Insulation Diameter, 3:1 Shrink Ratio, 1200 psi Tensile Strength, 1 kV AC, 0.99 to 1.25 Specific Gravity, Flammability: 1, 200 V/mil Dielectric Strength, Black

Specifications

 Brand Name 3M
 Color Black
 Conductor Size 1 to 4/0 AWG
 Dielectric Strength 200 V/mil
 Expanded Insulation Diameter 1.3 in
 Flammability Rating 1
 Length 25 ft
 Manufacturer Part Number 7000031509
 Recovered Insulation Diameter 0.43 in
 Series IMCSN
 Shrink Ratio 3:01
 Specific Gravity 0.99 to 1.25
 Standards/Approvals RoHS Compliant
 Type Adhesive Lined Split-Resistant
 Voltage Rating 1 kV AC

Features

▪ Offers reliable performance for electrical splices, connections and terminations
▪ Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
▪ Withstands temperatures of -67 to 230 deg F (-55 to 110 deg C)
