ABB

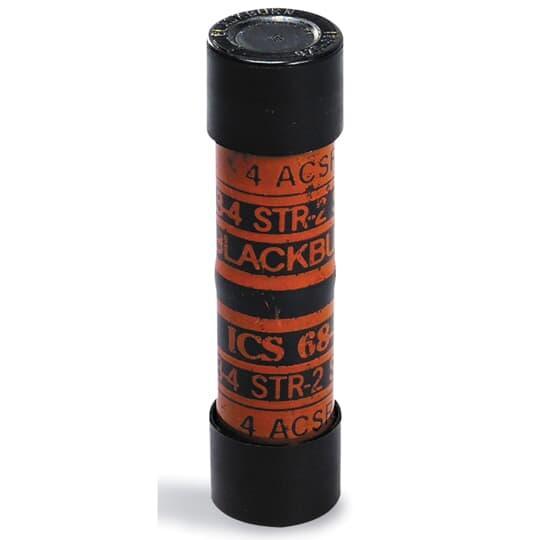

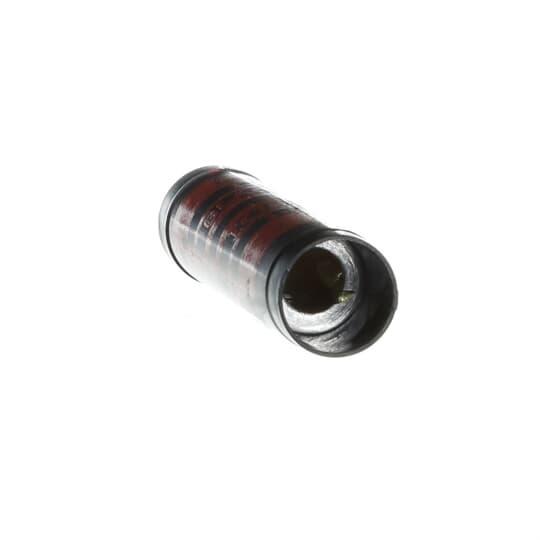

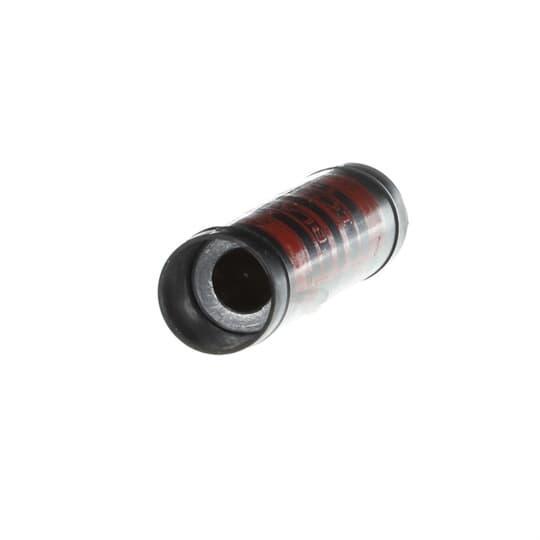

ICS73-1 ITB SPLICE AL SERV ENTR SPLICE A/B:1-2STRND

Mouse over image to zoom, click to enlarge

  • ICS73-1 ITB SPLICE AL SERV ENTR SPLICE A/B:1-2STRND
  • ICS73-1 ITB SPLICE AL SERV ENTR SPLICE A/B:1-2STRND
  • ICS73-1 ITB SPLICE AL SERV ENTR SPLICE A/B:1-2STRND
  • ICS73-1 ITB SPLICE AL SERV ENTR SPLICE A/B:1-2STRND

Description: Blackburn® Service Entrance Splice, Insulated, Series: ICS, ACSR/Stranded Conductor, 2 to 1 AWG Conductor, Die Code: 5/8, 2-25/32 in Length, Crimp/Compression Connector, Specifications: 2-Conductor, 0.268 to 0.328 in Dia End A and End B, Aluminum, Red

Manufacturer PN: ICS73-1

UPC:  78378610245

Kendall Electric Inc PN: 38989

Invoice Description:

ICS73-1 ITB SPLICE AL SERV ENTR SPLICE A/B:1-2STRND


SPEC SHEET

How Can We Make This Page Better?

Blackburn® ICS73-1 Insulated Service Entrance Splice, 2 to 1 AWG ACSR/Stranded Conductor, Die Code: 5/8, 2-25/32 in L, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Blackburn® stands for quality and reliability as a supplier of materials to connect overhead distribution power lines and equipment.
Blackburn® Service Entrance Splice, Insulated, Series: ICS, ACSR/Stranded Conductor, 2 to 1 AWG Conductor, Die Code: 5/8, 2-25/32 in Length, Crimp/Compression Connector, Specifications: 2-Conductor, 0.268 to 0.328 in Dia End A and End B, Aluminum, Red

Specifications

 Application For standard conductor splice and combination of aluminum to aluminum and aluminum to copper conductors
 Brand Name Blackburn
 Color Red
 Conductor Size 2 to 1 AWG
 Conductor Type ACSR/Stranded
 Connector Type Crimp/Compression
 Die Code 5/8
 Fitting Type Crimp/Compression
 Length 2-25/32 in
 Manufacturer Part Number ICS73-1
 Material Aluminum
 PART NUMBER KEYWORDS ICS73-1 ; ICS731 ; 7TAA267180R0018 ; 10902844 ; 783786102457 ; 78378610245 ; 00783786102457
 Series ICS
 Specifications 2-Conductor, 0.268 to 0.328 in Dia End A and End B
 Standards/Approvals ANSI C119.4|RUS Listed
 Type Insulated

Features

▪ Complies with ANSI C119.4 when properly installed on aluminum-to-aluminum or aluminum-to-copper conductors
▪ Constructed from aluminum for high conductivity
▪ Solid center barriers and large chamfers for easy cable insertion
▪ Tough stabilized nylon sleeves resist installing tool pressure and provide reliable 600 VAC insulation
▪ Prefilled with oxide-inhibitor to prevent oxidation and keep out moisture
▪ All splices are Color coded and marked with strip lengths, installation die codes and compression locations providing easy identification for easy installation
▪ Splices have colored end caps to make identification easy
▪ All seasons environmental conditions
▪ 2 AWG ACSR, 2 to 1 AWG stranded end A and 2 AWG ACSR, 2 to 1 AWG stranded end B conductor
▪ 5/8 in die series, U-BG B58CS hydraulic dies, 5/8 (OD58 tool) peach, BG, W-BG, G, TU mechanical dies
