Signify

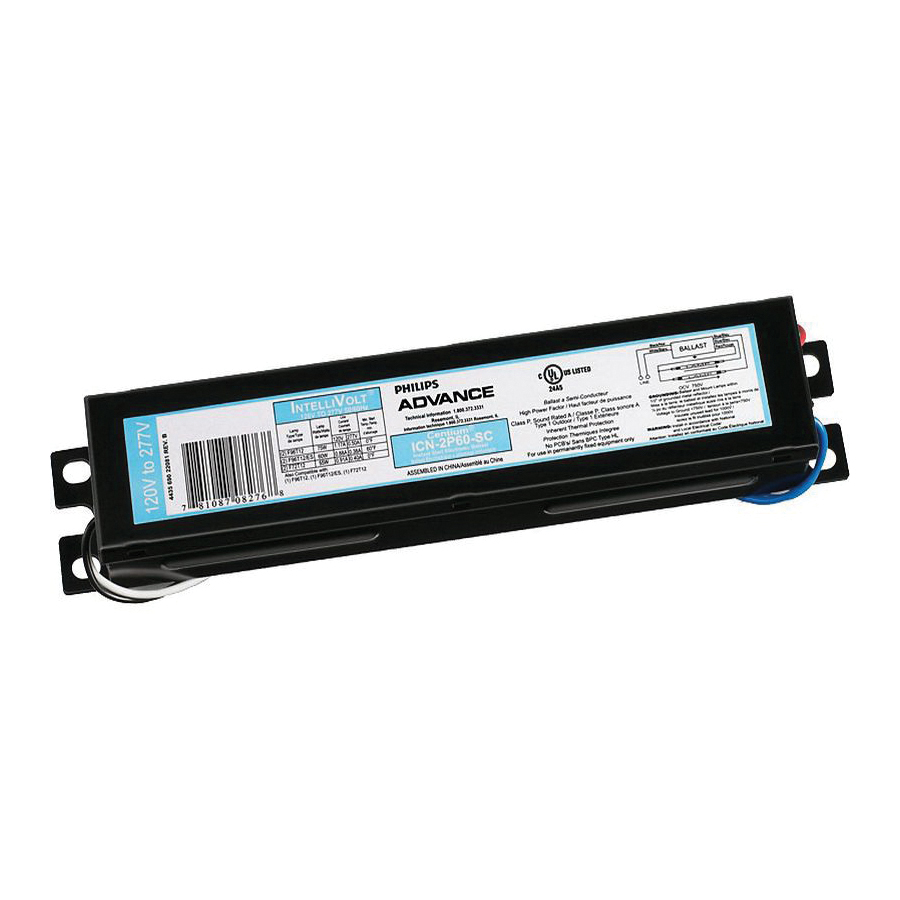

ICN2S110SC35M ADVANCE ELE BALLAST (2) F96T12/HO 120-277V..

Mouse over image to zoom, click to enlarge

  • ICN2S110SC35M ADVANCE ELE BALLAST (2) F96T12/HO 120-277V..
  • ICN2S110SC35M ADVANCE ELE BALLAST (2) F96T12/HO 120-277V..
  • ICN2S110SC35M ADVANCE ELE BALLAST (2) F96T12/HO 120-277V..
  • ICN2S110SC35M ADVANCE ELE BALLAST (2) F96T12/HO 120-277V..

Description: Advance, 107136, Fluorescent Ballast, Electronic Small Can, 110 W Lamp, 186 to 191 W Wattage, 120 to 277 V AC, 0.7 to 1.64 A, 50/60 Hz Frequency, Rapid Start, -20 deg F Minimum Starting, Total Harmonic Distortion: 0.1 %, Power Factor: 0.98, 2 Lamps, Ballast Factor: 0.9, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

Manufacturer PN: ICN2S110SC35M

UPC:  78108708532

Kendall Electric Inc PN: 4741397

Invoice Description:

ICN2S110SC35M ADVANCE ELE BALLAST (2) F96T12/HO 120-277V..


SPEC SHEET

▸ See All in Electronic Fluorescent Ballasts


How Can We Make This Page Better?

Advance 107136 Electronic Small Can Fluorescent Ballast, 110 W Lamp, 120 to 277 V AC, Rapid, 0.9 Ballast Factor

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

No matter what the conditions require, operating at a variety of line voltages between 120 to 480 VAC, whether located in high ambient temperature environments (requiring a 90 deg C rating) or not, our family of Philips Advance Centium® ballasts are ideal for a wide variety of applications.
Advance, 107136, Fluorescent Ballast, Electronic Small Can, 110 W Lamp, 186 to 191 W Wattage, 120 to 277 V AC, 0.7 to 1.64 A, 50/60 Hz Frequency, Rapid Start, -20 deg F Minimum Starting, Total Harmonic Distortion: 0.1 %, Power Factor: 0.98, 2 Lamps, Ballast Factor: 0.9, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

Specifications

 Amperage Rating 0.7 to 1.64 A
 Application Outdoor Applications
 Ballast Factor 0.9
 Brand Name Advance
 Dimensions 9.5 in L x 1.7 in W x 1.18 in H
 Frequency Rating 50/60 Hz
 Lamp Wattage 110 W
 Manufacturer Part Number 107136
 Material Metal
 Minimum Starting Temperature -20 deg F
 Number of Lamps 2
 PART NUMBER KEYWORDS ICN2S110SC35M ; 16648659 ; 781087085325 ; 78108708532 ; 00781087085325
 Power Factor 0.98
 Standards/Approvals CSA certificate;UL certificate;CEC Listing;Circle E logo;CSA E;DOE;RoHS Compliant
 Start Type Rapid
 Temperature Range 70 deg C
 Total Harmonic Distortion 0.1 %
 Type Electronic Small Can
 Voltage Rating 120 to 277 V AC
 Wattage 186 to 191 W

Features

▪ High power factor
▪ Reliable and energy efficient Philips® Advances CENTIUM commercial grade specifications, plus added benefits of lamp striation reduction technology

Resources

 Catalog Page
 Product Data Sheet
